11
SET-UP AND OPERATING INSTRUCTIONS — CONTINUED

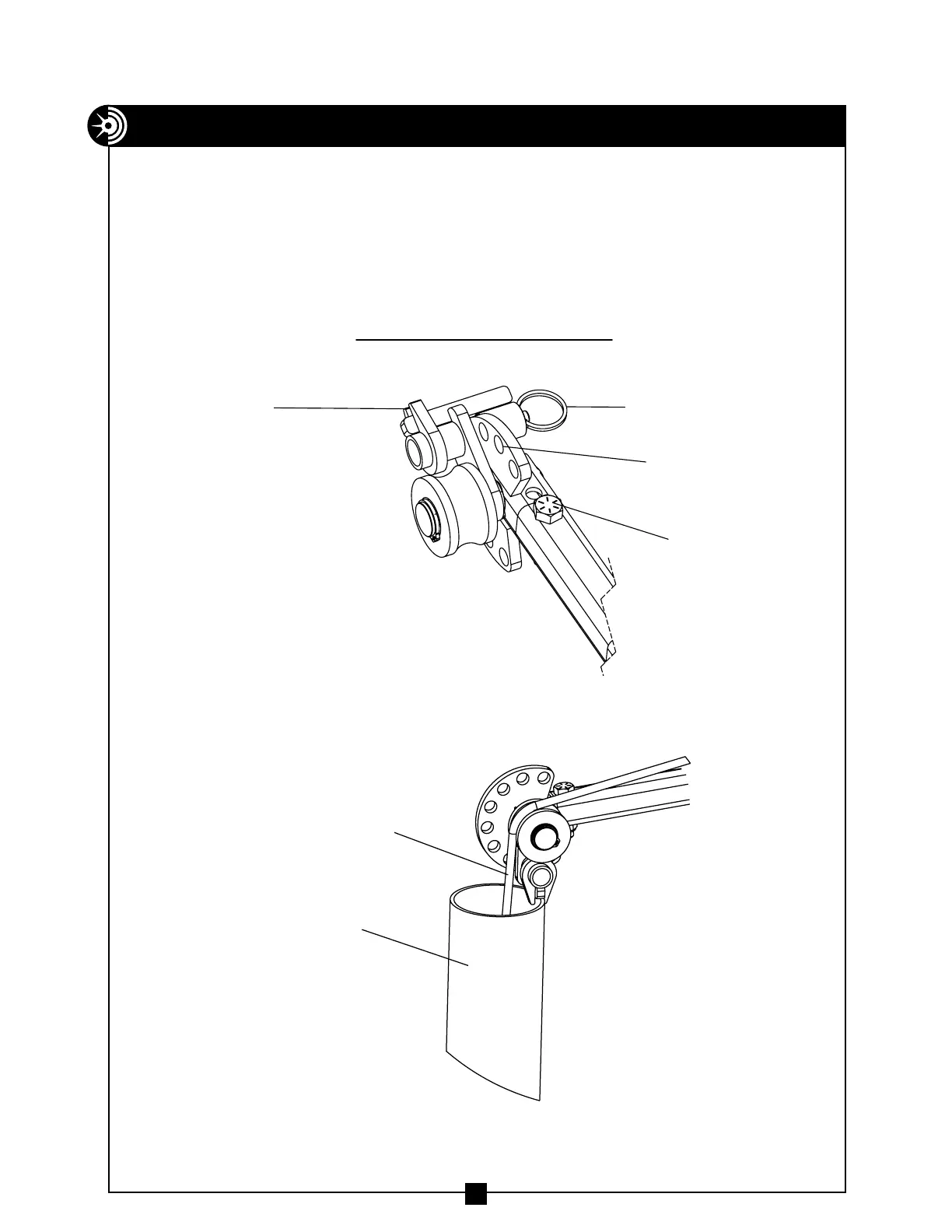

COUPLING HEAD INSTALLATION AND OPERATION
NOTE: The coupling head on the Model 11 Puller has numerous adjustment
positions to allow for the proper angle of engagement to the conduit.
To obtain the proper angle, pull the spring loaded retainer pin on the
coupling head and adjust the angle of the engagement slot as required.
NOTE: The proper angle of engagement allows the engagement slot to fully
seat on the lip of the conduit while preventing the pulling line or rope
from dragging on the edge of the conduit or other stationary objects in
the line of the pull.
Coupling Head
Engagement Slot
Spring Loaded
Retainer Ring
Coupling Head
Adjustment Holes
Coupling Head
Attachment Bol
t
COUPLING HEAD
Pulling Line/Rope
Conduit
