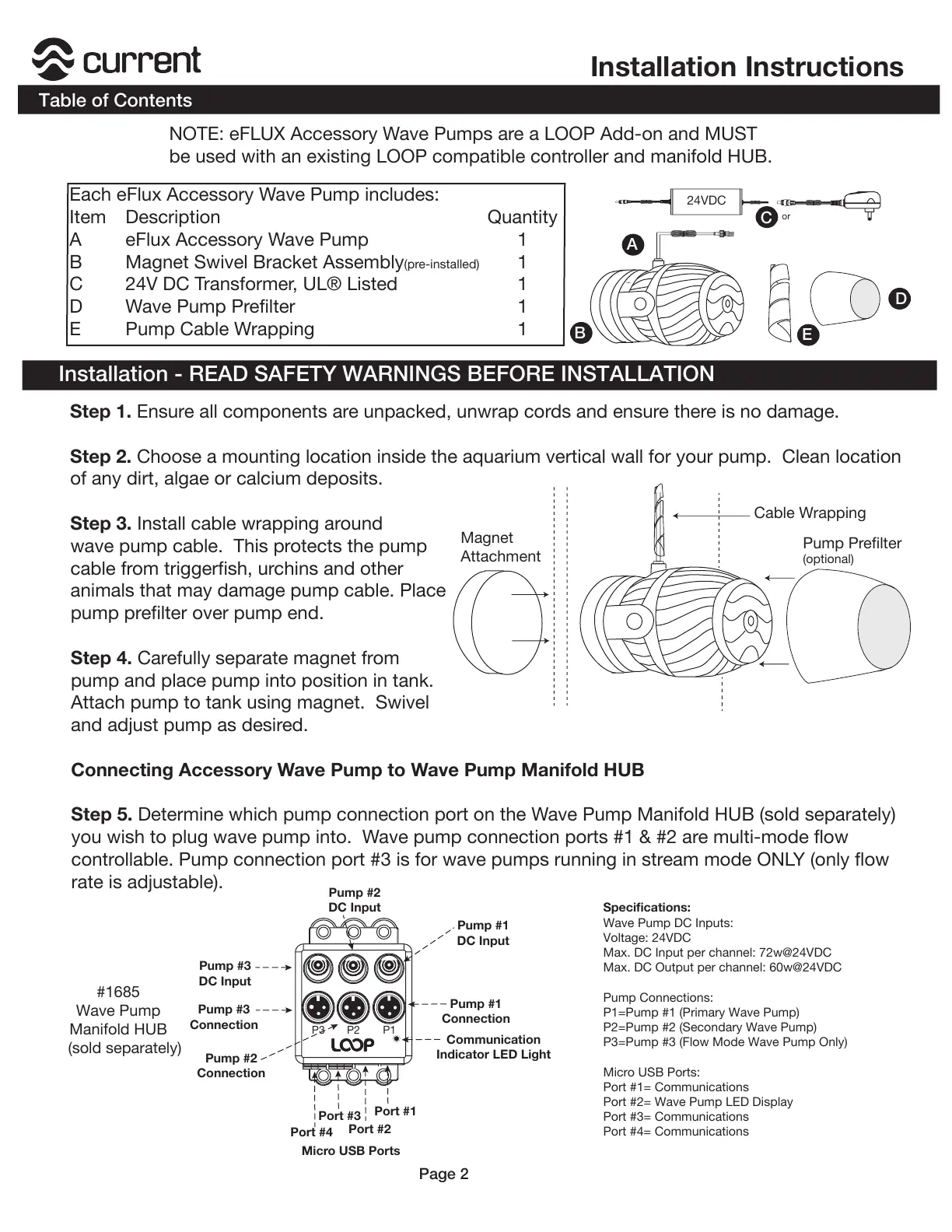

Current eFlux Quick Start Guide

Step 1. Ensure all components are unpacked, unwrap cords and ensure there is no damage.
Step 2. Choose a mounting location inside the aquarium vertical wall for your pump. Clean location
of any dirt, algae or calcium deposits.
Step 3. Install cable wrapping around
wave pump cable. This protects the pump
cable from triggerfish, urchins and other
animals that may damage pump cable. Place
pump prefilter over pump end.
Step 4. Carefully separate magnet from
pump and place pump into position in tank.
Attach pump to tank using magnet. Swivel
and adjust pump as desired.
Connecting Accessory Wave Pump to Wave Pump Manifold HUB
Step 5. Determine which pump connection port on the Wave Pump Manifold HUB (sold separately)
you wish to plug wave pump into. Wave pump connection ports #1 & #2 are multi-mode flow
controllable. Pump connection port #3 is for wave pumps running in stream mode ONLY (only flow
rate is adjustable).
#1685
Wave Pump
Manifold HUB
(sold separately)
P1P3
P2
Magnet
Attachment
Cable Wrapping
Pump Prefilter
(optional)
Installation - READ SAFETY WARNINGS BEFORE INSTALLATION
Each eFlux Accessory Wave Pump includes:
Item Description Quantity
A eFlux Accessory Wave Pump 1
B Magnet Swivel Bracket Assembly
(pre-installed) 1
C 24V DC Transformer, UL® Listed 1
D Wave Pump Prefilter 1
E Pump Cable Wrapping 1
or
C
A
B
D
E
24VDC
NOTE: eFLUX Accessory Wave Pumps are a LOOP Add-on and MUST
be used with an existing LOOP compatible controller and manifold HUB.
Installation Instructions
Table of Contents
Pump #1
Connection
Pump #1
DC Input
Pump #2
DC Input
Pump #3
DC Input
Pump #3
Connection
Pump #2
Connection
Communication
Indicator LED Light
Port #1
Port #2
Port #3
Port #4
Micro USB Ports
Specifications:
Wave Pump DC Inputs:
Voltage: 24VDC
Max. DC Input per channel: 72w@24VDC
Max. DC Output per channel: 60w@24VDC
Pump Connections:
P1=Pump #1 (Primary Wave Pump)
P2=Pump #2 (Secondary Wave Pump)
P3=Pump #3 (Flow Mode Wave Pump Only)
Micro USB Ports:
Port #1= Communications
Port #2= Wave Pump LED Display
Port #3= Communications
Port #4= Communications
Page 2

Current eFlux Specifications

General

Brand	Current
Model	eFlux
Category	Water Pump
Language	English
