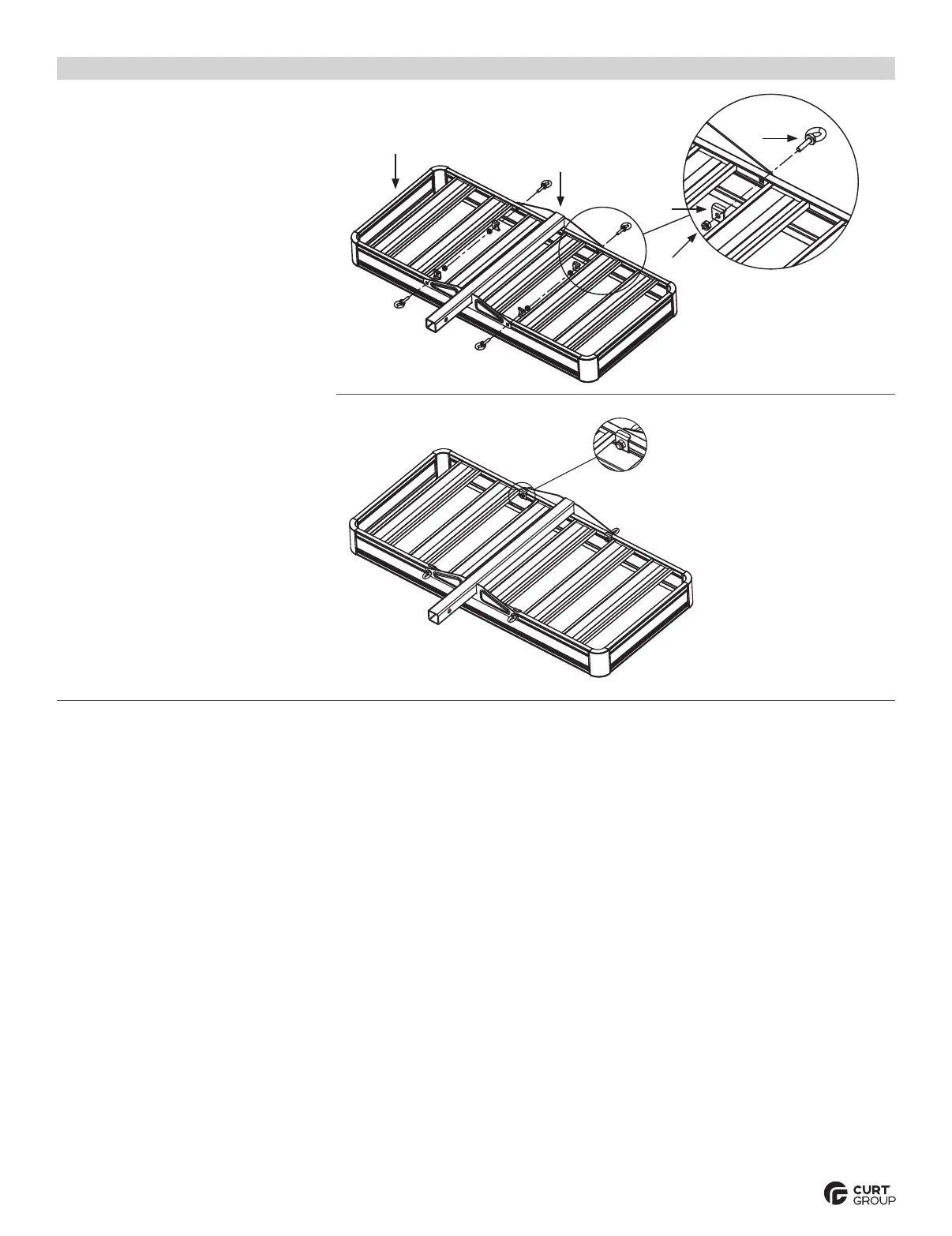

Step 1
Place the cargo carrier frame (#1)
on a flat surface facing down.
Align the mounting holes in the support
bracket (#2) with the holes in the carrier frame.
Place an M10 eye bolt (#3)
through
the support bracket and carrier frame
.
Place a U-clamp (#4) onto the M10 eye
bolt and secure with an M10 lock nut (#5).
Repeat for all attachment points.
Tighten all M10 hardware to 12 ft-lbs.
Note: Overtightening hardware may
cause damage to product or hardware.
Once assembled, insert the shank into the
receiver tube of the tow vehicle and align the
holes. Secure with a pin & clip (not included).
1
2
3
5
4
