curt 11291 - Installation Walkthrough; Hole Enlargement; Fishwire Installation

HOLE ENLARGEMENT DIAGRAM
INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

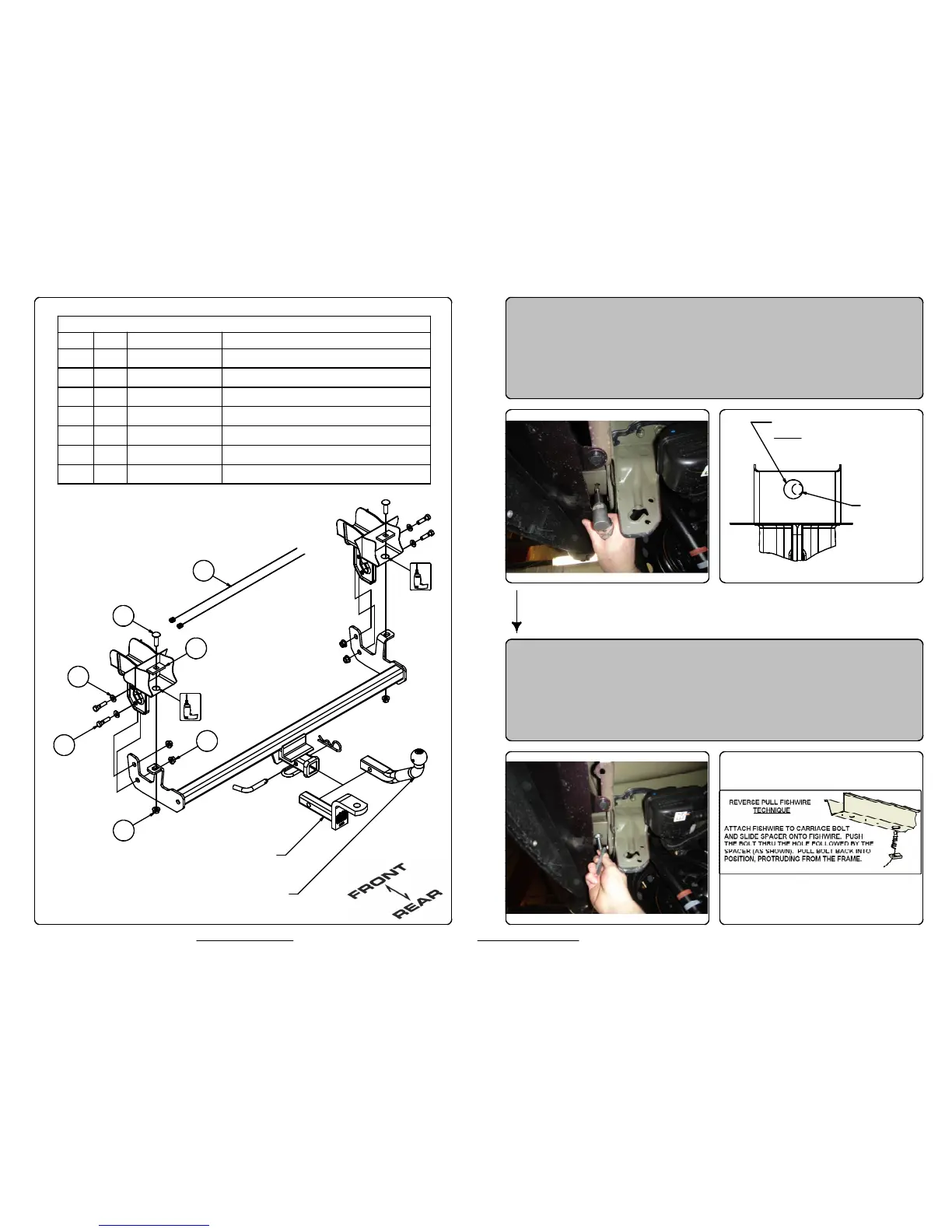

Parts List
DESCRIPTIONPART NUMBERQTYITEM
HEX FLANGE NUT7/16-14
21
HEX BOLT3/8-16 X 1 1/242
WASHER3/8"43
CARRIAGE BOLT7/16-14 x 1 1/224
.250 x 1.00 x 2.00" SQUARE HOLE SPACERCM-SP725
7/16" FISHWIRE7_16 FISHWIRE
26
HEX FLANGE NUTHFN381647
EURO MOUNT OPTION AVAILABLE
#45571 (1-7/8") AND #45572 (2" BALL)
DESIGNED FOR USE WITH
BALLMOUNT # D-55001 / 45501
1
3
2
6
4
5
7
1. Enlarge existing hole to allow 7/16" carriage bolts and
SP7 spacers to pass through, both sides.
ENLARGED ACCESS HOLE
NOTE: ENLARGE EXISTING
HOLE TOWARDS OUTSIDE
OF FRAME RAIL.
EXISTING
HOLE
2. Reverse fishwire 7/16" carriage bolts and SP7 spacers
through enlarged access holes, both sides.
