ILLUSTRATED PARTS/RECOMMENDED PARTS IP45
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354ø 121718#
ITEM # PART # DESCRIPTION
1 WC-62030 TANK, COMPLETE TP2T ULTEM FITTNGS
2 WC-37008 KIT, TANK LID ROUND (INCLUDES GASKET)
3 WC-37357*
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM
4A
1
WC-5528K* KIT, WATER LEVEL PROBE, SILICONE
4B
2
WC-5502-01*
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
O-RING & NUT
5 WC-934-04*
KIT,ELEMENT HEATING 2.5KW 220V W/ JAM NUT &
SILICONE WASHERS
6 WC-1438-101* SENSOR, TEMPERATURE TANK
ITEM # PART # DESCRIPTION
7 WC-4382* GUARD, SHOCK HTNG ELMNT DOUBLE
8 WC-522*
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365* KIT, FITTING TANK INLET
10 WC-37266* KIT, FITTING TANK OVERFLOW
11 WC-37317* KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055* GUARD, SHOCK RESET THERMOSTAT (WC-522)
13 WC-43067* SILICONE TANK LID O-RING, 4-1/2” I.D. X Ø.285

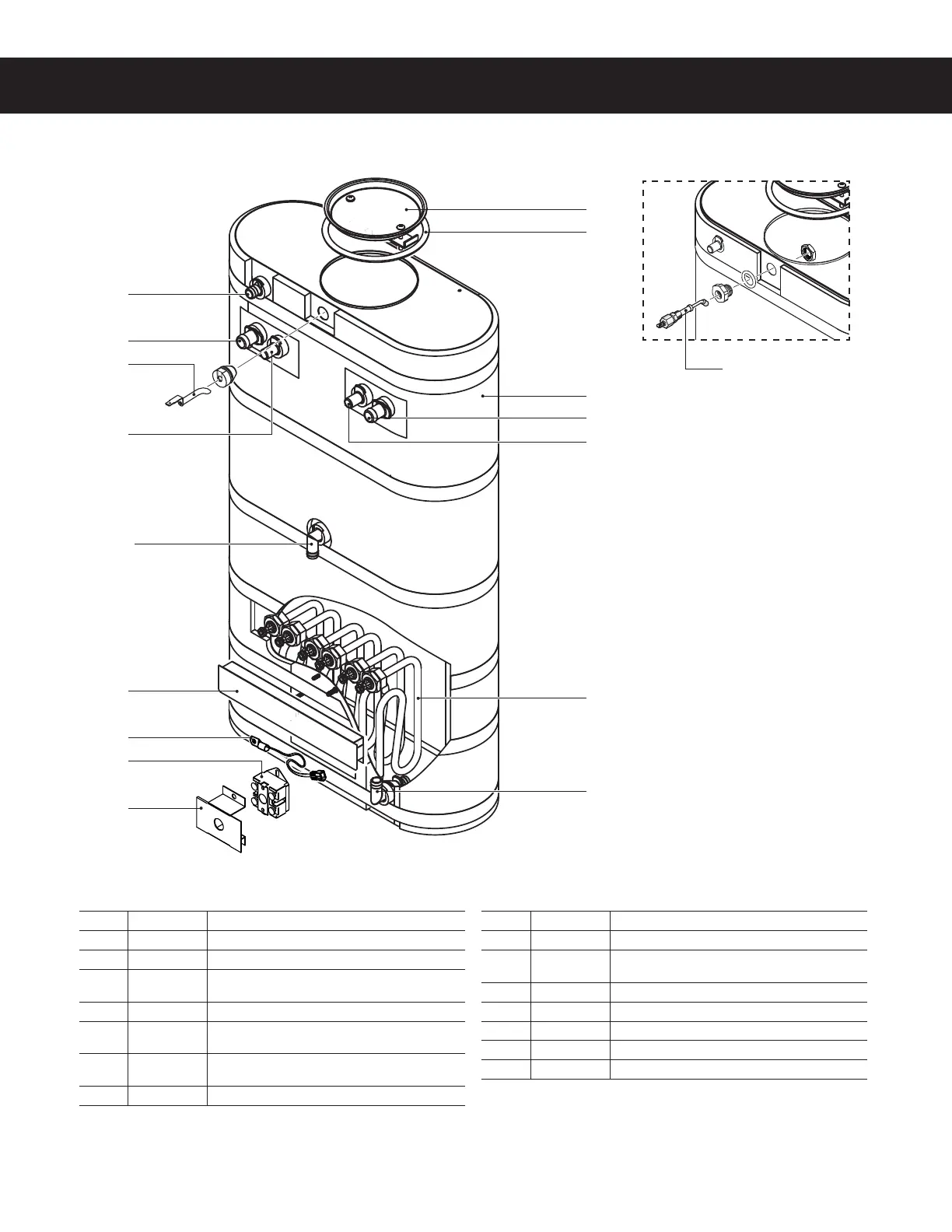

WC-62030 - Tank Assembly
10
3
4A
11
7
6
8
12
2
13
1
3
11
5
9
WC-62030 - Tank Assembly - Parts List
4B
1
Units built 01/04/2019 and later.
2
Units built before 01/04/2019. Replaces WC-5527.
* Recommended parts to stock.
9
