Curtis ThermoPro G4 Series User Manual

ELECTRICAL SCHEMATICS ES42

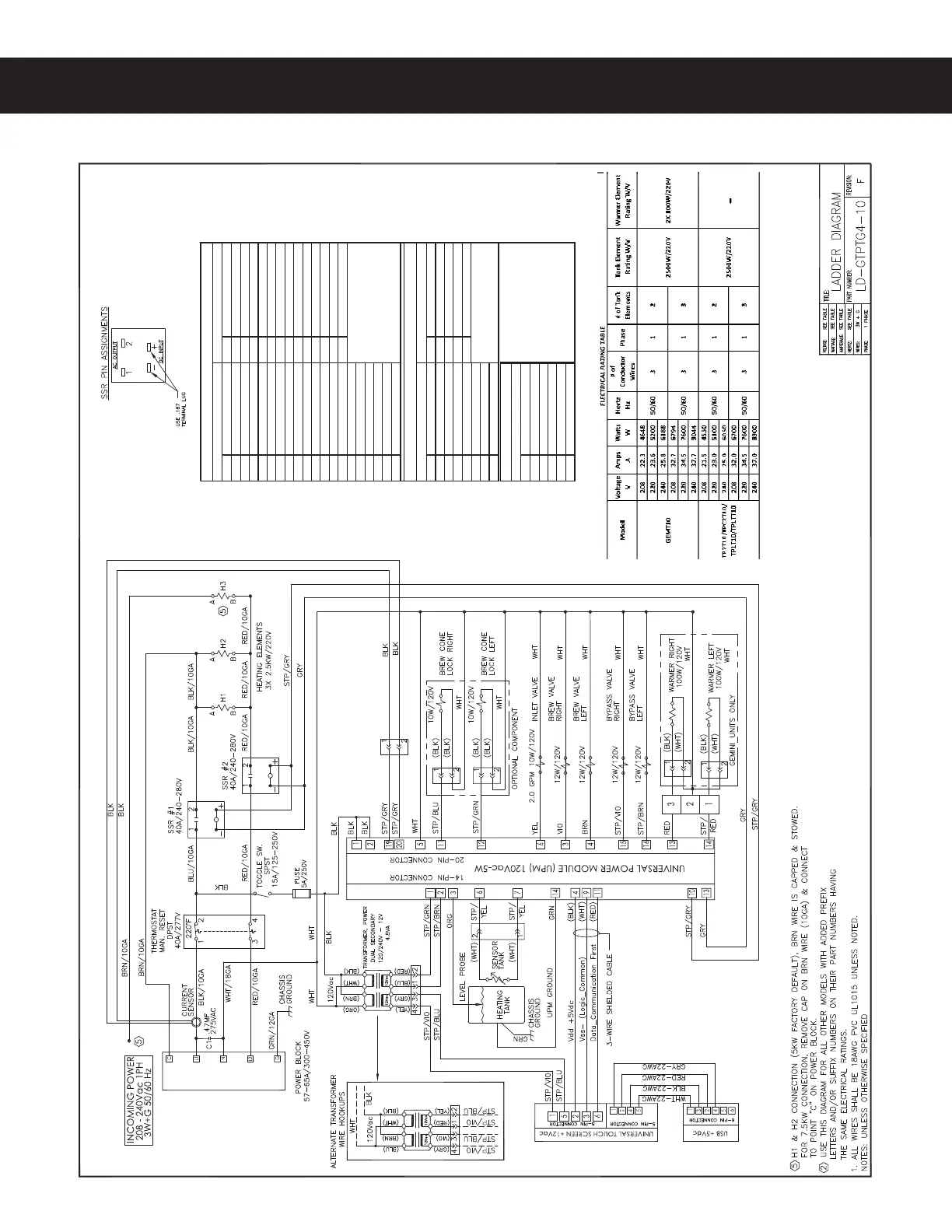

GTPTG4-10, ELECTRICAL SCHEMATIC 033120C
1
120Vac Hot I nput
1
12 Vac Input
2
120Vac Hot I nput
2
12 Vac Input
3
Brew Valve Right
3
Tank Water Level Probe
4
Brew Valve Left
4
Vdd +5Vdc
5
120Vac Neutral
5
Not Used
6
Inlet Valve
6
Tank Temperature Sensor
7
Not Used
7
Tank Temperature Sensor
8
Not Used
8
Dat a_Communicat ion Next
9
Triac Gate
9
Vss- ( Logic_Common)
10
Triac A2
10
Solid Stat e Relay +5Vdc
11
Brew Cone Lock Right
11
Data_Communication First
12
Brew Cone Lock Left
12
Not Used
13
Warmer Right
13
Solid Stat e Relay - Commo
n
14
Warmer Left
14
Tank Ground
15
Bypass Valv e Right
16
Bypass Valv e Left
17
Not Used
18
Not Used
19
Current Sensor
20
Current Sensor
1
12 Vac I nput (Back Light)
1
TX - Transmit
2
Vdd +5Vdc
2
RX - Receive
3
Vss- (Logic_Common)
3
Not Used
4
Not Used
4
Vdd +5Vdc
5
12 Vac Input (Back Light)
5
Vss- ( Logic_Common)
6
Data_Communication First
7
Not Used
8
Not Used
1
Vss- (Logic_Common)
2
TX - Transmit
3
Vdd +5Vdc
4
RX - Receive
5
Not Used
6
N
ot U sed
(UCM) Pin Assignments
USB Pin Assignments
6-Pin Connector
(UPM) Pin Assignments
rotcennoC niP 41rotcennoC niP 02
rotcennoC niP 5rotcennoC niP 8
G4GEMT10x, G4TP[X]1T10x, G4TP[X]2T10x
