Curtis ThermoPro G4 Series User Manual

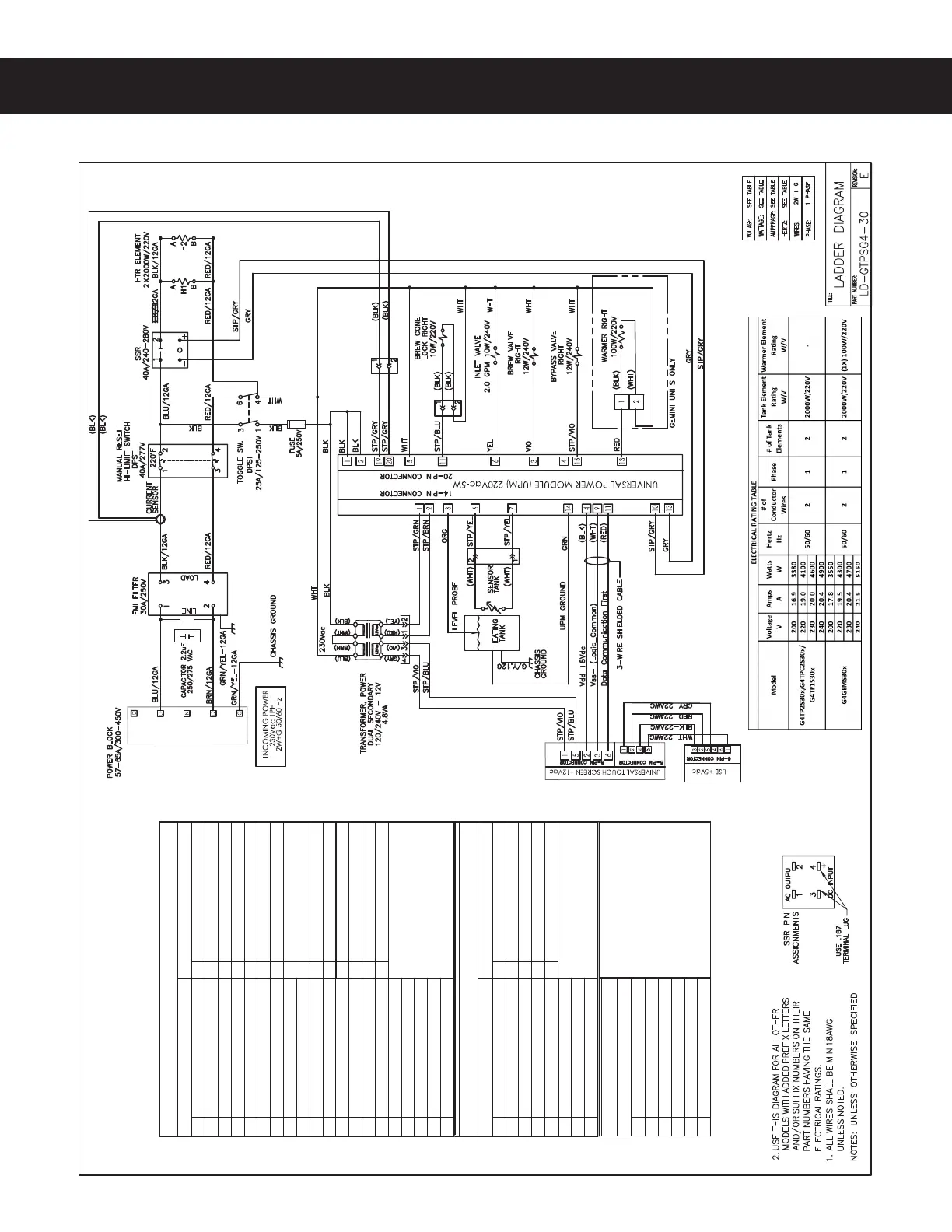

ELECTRICAL SCHEMATICS ES50
GTPSG4-30, ELECTRICAL SCHEMATIC 081319D
1
230Vac Hot I nput
1
12 Vac Input
2
230Vac Hot I nput
2
12 Vac Input
3
Brew Valve Right
3
Tank Water Level Probe
4
Brew Valve Left
4
Vdd +5Vdc
5
230Vac L2
5
Not Used
6
Inlet Valve
6
Tank Temperature Sensor
7
Not Used
7
Tank Temperature Sensor
8
Not Used
8
(Data_Communication Next)
Not Used
9
Triac Gate
9
Vss- (Logic_Common)
10
Triac A2
10
Solid Stat e Relay +5Vdc
11
Brew Cone Lock Right
11
Data_Communication First
12
Brew Cone Lock Left
12
Not Used
13
Warmer Right
13
Solid Stat e Relay - Common
14
Warmer Left
14
UPM Ground
15
Bypass
Valve Right
16
Bypass
Valve Left
17
Not Used
18
Not Used
19
Current Sensor
20
Current Sensor
1
12 Vac Input (Back Light)
1
TX - Transmit
2
Vdd +5Vdc
2
RX - Receive
3
Vss- (Logic_Common)
3
Not Used
4
Not Used
4
Vdd +5Vdc
5
12 Vac Input (Back Light)
5
Vss- (Logic_Common)
6
Dat a_Communicat ion First
7
Not Used
8
Not Used
1
Vss- (Logic_Common)
2
TX - Transmit
3
Vdd +5Vdc
4
RX - Receive
5
Not Used
6
Not Used
(UCM TOUCH SCREEN) Pin Assignments
(USB) Pin Assignments
6-Pin Connector
(UPM) Pin Assignments
rotcennoC niP 41rotcennoC niP 02
rotcennoC niP 5rotcennoC niP 8
SINGLE, 220-240 VOLT, DUAL ELEMENT
