CUSHCRAFT A50-3S - Boom Assembly

A50-3S
13 050013 PLASTIC 1-1/4" 2
CAP (3.2 cm)
412 030412 SS WORM 1-3/8" 2
CLAMP (3.5 cm)
KEY P/N DESCRIPTION
QUANTITY
MASTER PARTS LIST

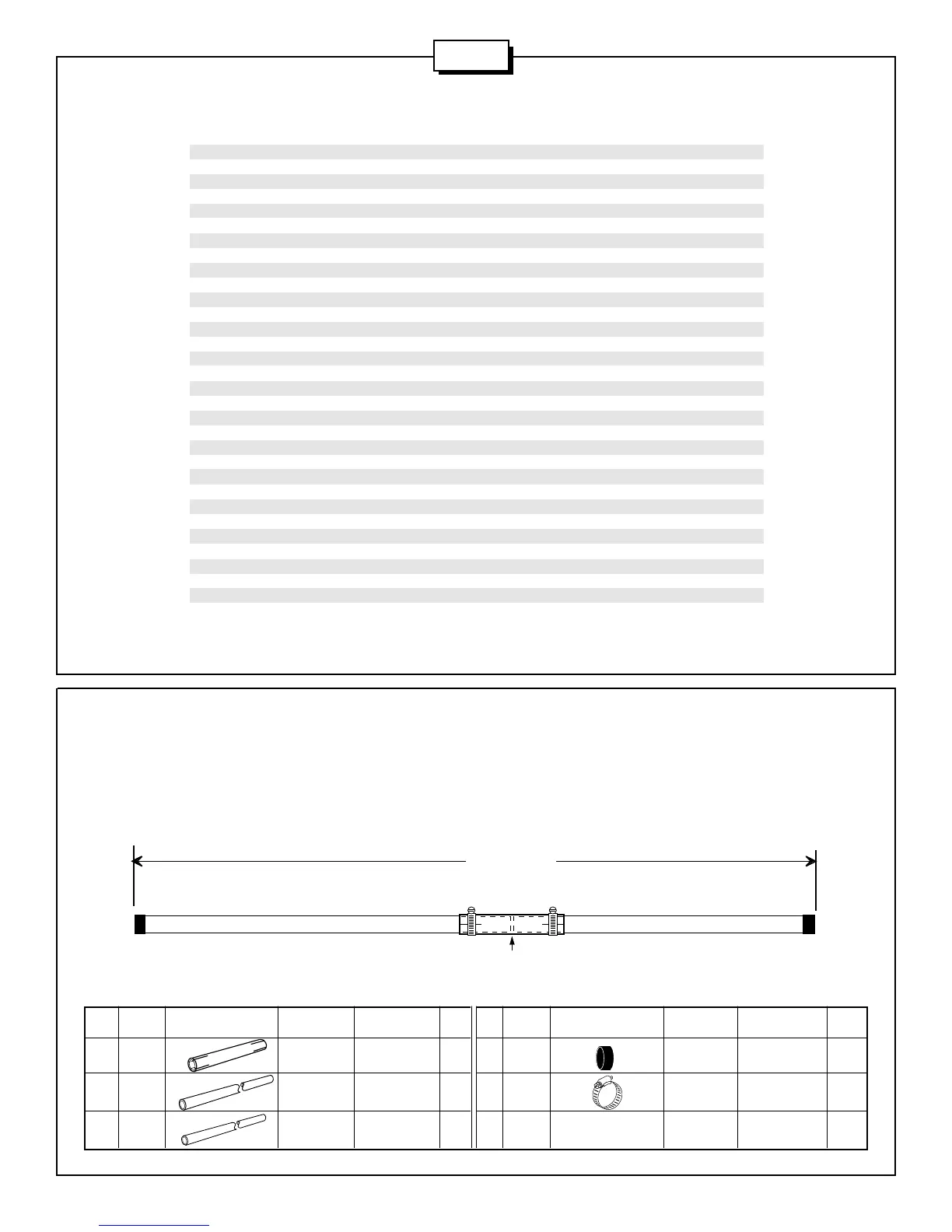

Place telescope clamps (412) over the slotted ends of tube AA. Slide BB and CC 3 inches (7.62 cm) into AA so that they butt in the middle.
Tighten clamps and attach end caps (13).
#1 - BOOM ASSEMBLY
KEY P/N DISPLAY DESC SIZE QTY
KEY P/N DISPLAY DESC SIZE QTY
AA ALUM 1-3/8" X 8" 1
TUBE (3.5 x 20.3 cm)
BB ALUM 1-1/4" x 42" 1
TUBING (3.17 x 106.7 cm)
CC ALUM 1-1/4" x 30" 1
TUBE (3.17 x 76.2 cm)
AA
13
13
412
412
BB
CC
72"
(182.9 cm)
Butt ends together.
FIGURE A
9 010009 8-32 x 5/8" (1.59 cm) stainless steel machine screw 2
11 010011 8-32 stainless steel hex nut 3
13 050013 1-1/4" (3.17 cm) plastic cap 2
27 050027 5/8" (1.59 cm) plastic caps 6
32 190032 1-1/2" (3.8 cm) heavy duty U-bolt brackets 3
33 190033 1-1/2" (3.8 cm) U-bolt backing plate 2
69 200069 Formed aluminum tuning strap 1
70 190070 4" x 6" (10.2 x 15.2 cm) formed mast plate 1
84 010084 1/4" (.63 cm) stainless steel lock washer 6
85 010085 1/4" (.63 cm) stainless steel hex nut 6
115 050115 Connector boot 1
116 240116 Silicone package 1
118 010118 5/16" (.8 cm) stainless steel hex nut 8
119 010119 5/16" (.8 cm) stainless steel lock washers 8
326 290326 Danger label 1
402 010402 1-1/2" (3.8 cm) stainless steel U-bolt 3
403 010403 1-5/8" (4.13 cm) stainless steel U-bolt 2
404 010404 2-1/8" (5.4 cm) stainless steel U-bolt 2
409 030409 3/4" (1.9 cm) stainless steel worm clamps 6
412 030412 1-3/8" (3.49 cm)stainless steel worm clamps 2
941 011941 #8 stainless steel internal tooth lock washer 3
AA 1-3/8" x 8" (3.49 x 20.3 cm) aluminum tubing, slotted both ends 1
BB 1-1/4" x 42"(3.17 x 106.7 cm) aluminum tubing 1
CC 1-1/4" x 30" (3.17 x 76.2 cm) aluminum tubing 1
EA 3/4" x 48" (1.9 x 121.9 cm) aluminum tubing slotted both ends, drilled for U-bolt 3
EB 5/8" x 37-1/2" (1.6 x 95.2 cm) aluminum tubing 2
EC 5/8" x 34-1/4" (1.6 x 87.0 cm) aluminum tubing 2
ED 5/8" x 31-1/2" (1.6 x 80.0 cm) aluminum tubing 2
CB Connector bracket 1
RM Reddi Match tube 1
2
