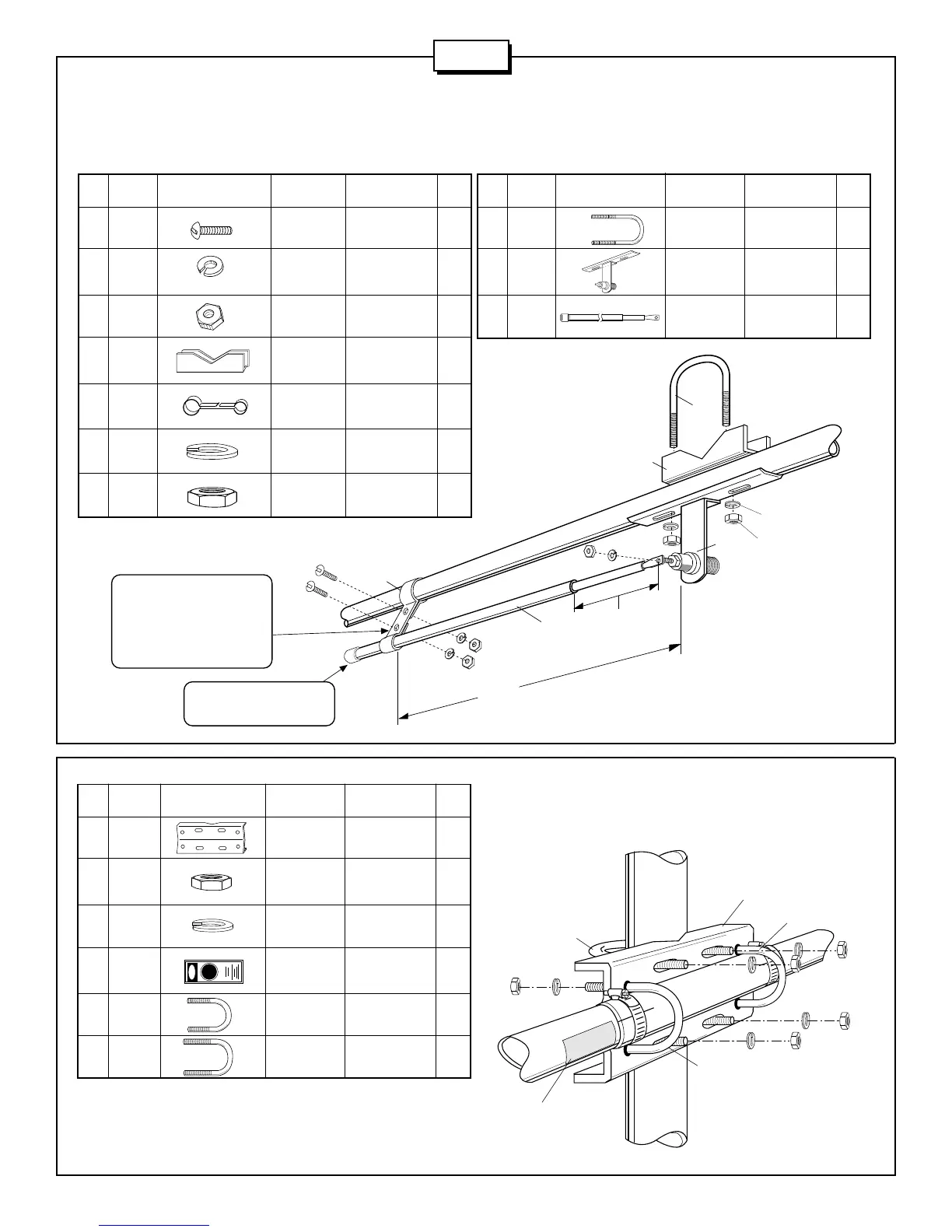

CUSHCRAFT A50-3S - Reddi Match Assembly; Boom to Mast Assembly

A50-3S
5
KEY P/N DISPLAY DESC SIZE QTY KEY P/N DISPLAY DESC SIZE QTY
402 010402 U-BOLT 1-1/2" 1
(3.8 cm)
CB CONNECTOR 1
BRACKET
RM REDDI MATCH 17" 1
ASSEMBLY (41.2 cm)
9 010009 SS MACHINE 8-32 X 5/8" 2
SCREW (1.59 cm)
941 011941 SS LOCK #8 3
WASHER
11 010011 SS HEX 8-32 3
NUT
32 190032 U-BOLT 1-1/2" 1
BRACKET (3.8 cm)
69 200069 TUNING 1
STRAP
84 010084 SS LOCK 1/4" 2
WASHER (.63 cm)
85 010085 SS HEX 1/4" 2
NUT (.63 cm)
FIGURE E
70 190070 MAST MT. 4" X 6" 1
PLATE (10.16 x 15.2 cm)
118 010118 HEX 5/16" 8
NUT (.8 cm)
119 010119 LOCK 5/16" 8
WASHER (.8 cm)
326 290326 DANGER 1
LABEL
403 010403 U-BOLT 1-5/8" 2
(4.13 cm)
404 010404 U-BOLT 2-1/8" 2
(5.4 cm)
#4 - BOOM TO MAST ASSEMBLY
Assemble and mount the mast bracket to the boom centered over the
AA tube. Refer to figure E for assembly.
KEY P/N DISPLAY DESC SIZE QTY
FIGURE D
MAST
118
119
118
119
118
119
404
403
403
70
326
AA
After the Reddi-Match tube has
been attached to the driven
element, adjust the angle of the
tuning strap (69) to a point
which brings the Reddi-Match
tube into parallel with the driven
element.
69
9
11
941
11
CB
EA
32
405
RM
84
85
X
SET
941
NOTE: For vertical polarization
the Reddi-Match assembly
should point skyward.
#3 - REDDI MATCH ASSEMBLY
Slide the Reddi Match tube (RM) through the tuning strap (69). Connect the flattened rod to the screw on the connector (figure D). Slide the poly
tube over the rod up to the flattened end. Adjust to the dimensions shown in Table 1 for horizontal polarization or Table 2 for vertical polarization.
Tighten all connections.
