CUTTERMASTER Professional JXT User’s Manual
Page 24
3.5 End Gashing
Thiscanbedoneinavarietyofwayswithseveraldi󰀨erentwheeltypes,theeasiestbeingthe1A1.
Care should be taken to study the end geometry before proceeding and to keep track of center.

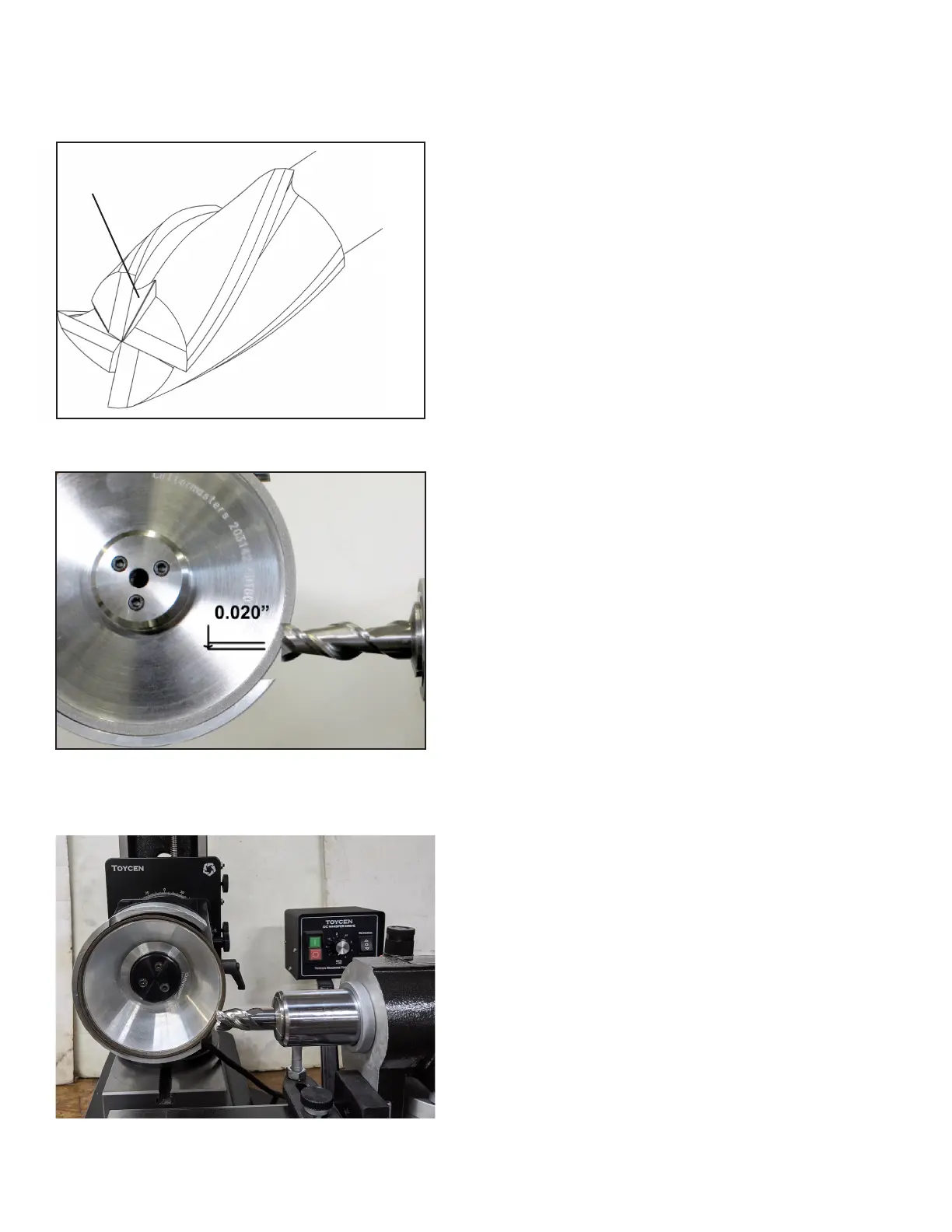

Gash
End gash with a 1A1 wheel. Set up as shown for
grinding end mill ends with a 1A1 wheel. For a two
uteendmillwesettheindexingcollarto4sothatwe
acheive 90° indexing.
To acheive a 0.020” web in the center of the tool, posi-
tion the Motor tower y axis away 0.010”.
When plunging the tool, proceed until the wheel is
past the center of the tool by 0.020”.
Grinding the Gash with a 1A1 Wheel
Grinding the Gash with a 11V9C Wheel
End gash with a 11V9C wheel.
