Copyright © 2018 Cyber Power Systems, Inc.

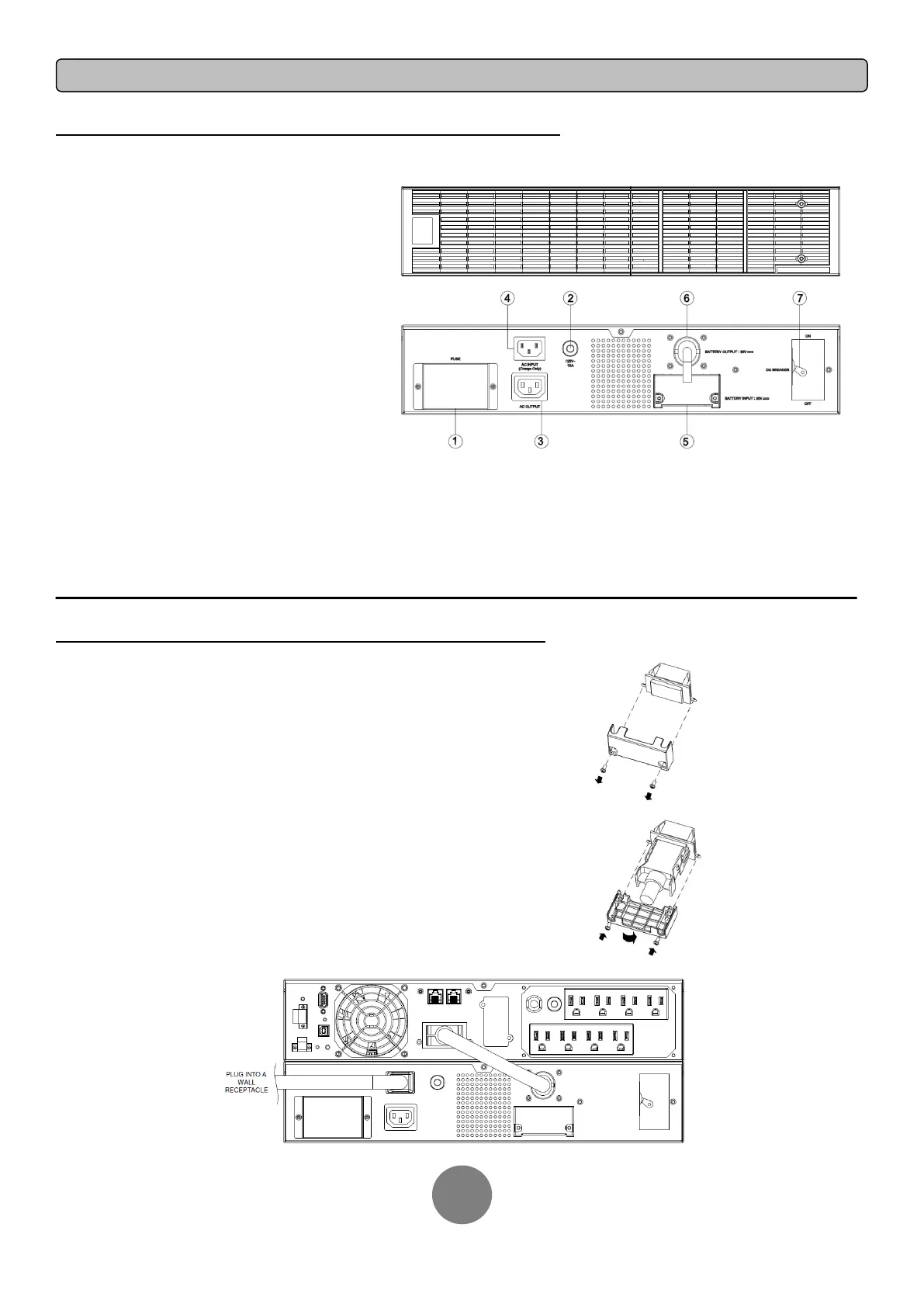

EXTENDED BATTERY MODULE FRONT/REAR PANEL DESCRIPTION
1. On-board Replaceable Fuse Cover
Replaceable fuse is accessible from the rear panel.
Service to be performed by qualified personnel only.
2. AC Circuit Breaker
Provides overload and fault protection.
3. AC Output Outlet (IEC320 C13 for optional Fast Charge
function)
Use this outlet to connect to the AC Input Inlet of a
downstream EBM.
4. AC Input Inlet (IEC320 C14 for optional Fast Charge
function)
AC power connectivity to wall receptacle, or AC output
from EBM upstream
5. Input Connector
Use this input connector to daisy chain the next EBM.
Remove the connector cover for access.
6. Output Cable
Use this output cable to connect the EBM to the UPS or to
the next EBM.
7. DC Breaker
Use the DC breaker to disconnect battery output.
BP36V60ART2U / BP72V60ART2U
CONNECTION #1 : UPS WITH ONE EXTENDED BATTERY MODULE
Step 1: Turn off the DC breaker of the EBM.
Step 2: Loosen the two screws to remove the battery cable
retention bracket of the UPS.
Step 3: Use the output cable of the EBM to connect the EBM to
the UPS.
Step 4: Rotate the battery cable retention bracket and tighten
the two screws to fix battery cable.
Step 5: Use a power cord to plug AC input inlet of the EBM
into a wall receptacle.
Step 6: Turn on the DC breaker of the EBM.
To Next Page
