NORMAL OPERATING SOUNDS you may hear
‘Boiling water’, gurgling sounds or slight vibrations is due to the refrigerant circulating through the
cooling coils.
The thermostat control will click when it cycles on and off.

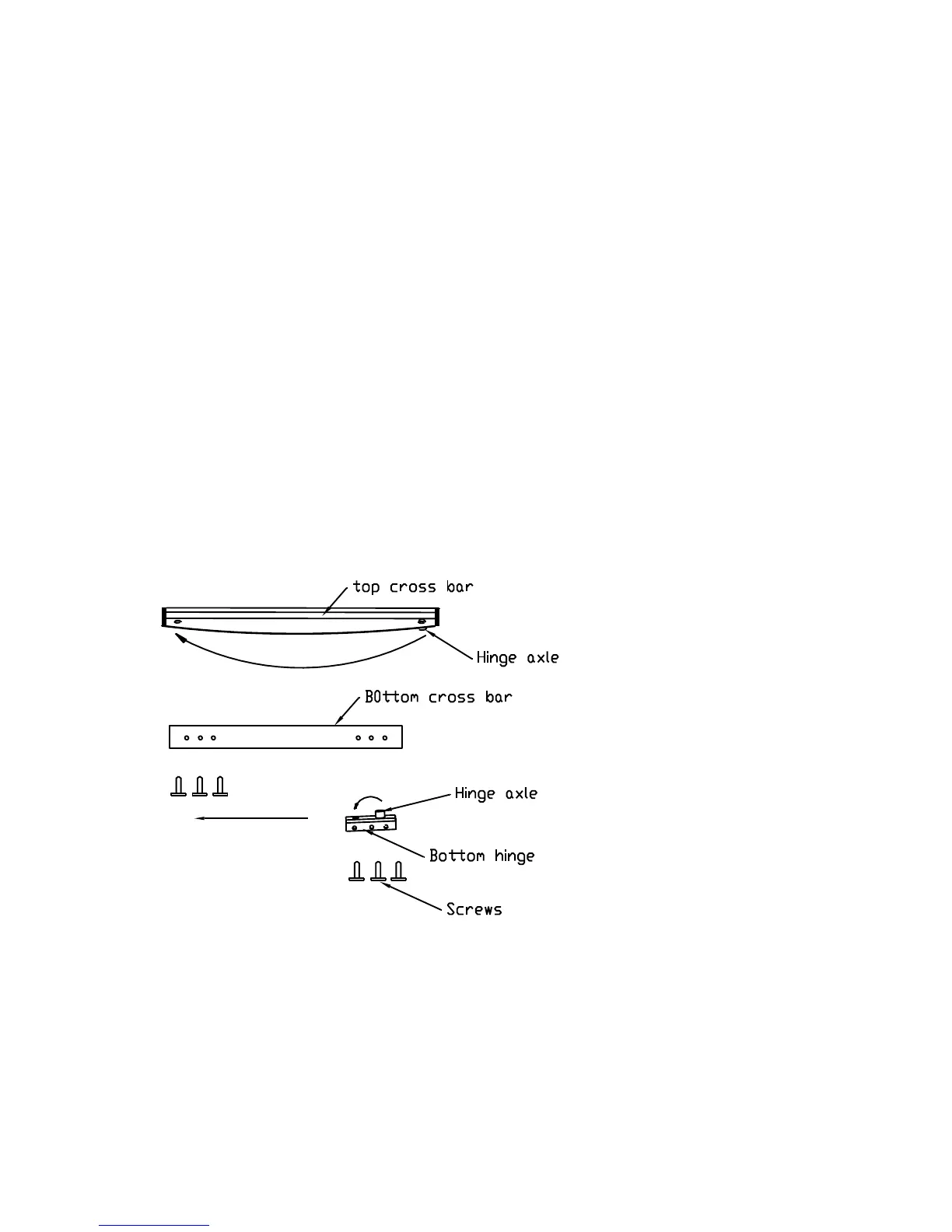

REVERSING THE DOOR (OPTION)
How to reverse the door
Remove the lower hinge by loosening and removing the screws with screwdriver.
Carefully lower the door and remove it.
Move the pivot pin to the opposite hole on the lower hinge.
Move the pivot pin from the left top hinge to the opposite hole on the right top hinge.
Remove the two screws from the right holes in the bottom cross bar.
Take the door. Insert the lower hinge axle into the right bottom hole of the door; insert the right
hole of the door into the right top hinge pin (axle).
Adjust the door; straighten and align with cabinet.
Fix the lower hinge with two screws.
Cover the left holes in the bottom cross bar with two screws.
Note: As the door gasket is sometimes pressed-in during shipment, after reversing the door the gasket
might have to be reset. This will be good for seal to avoid any air escaping. If there is a gap between
the cabinet and the door gasket, set the gasket by gently pulling it out to seal the gap. If necessary, it
is recommended to gently
use a hairdryer to warm the gasket to eliminate the gap.
7
