Cybertek CP8000 Series - Input Impedance Graphs

Shenzhen Zhiyong Electronics Co., Ltd
13

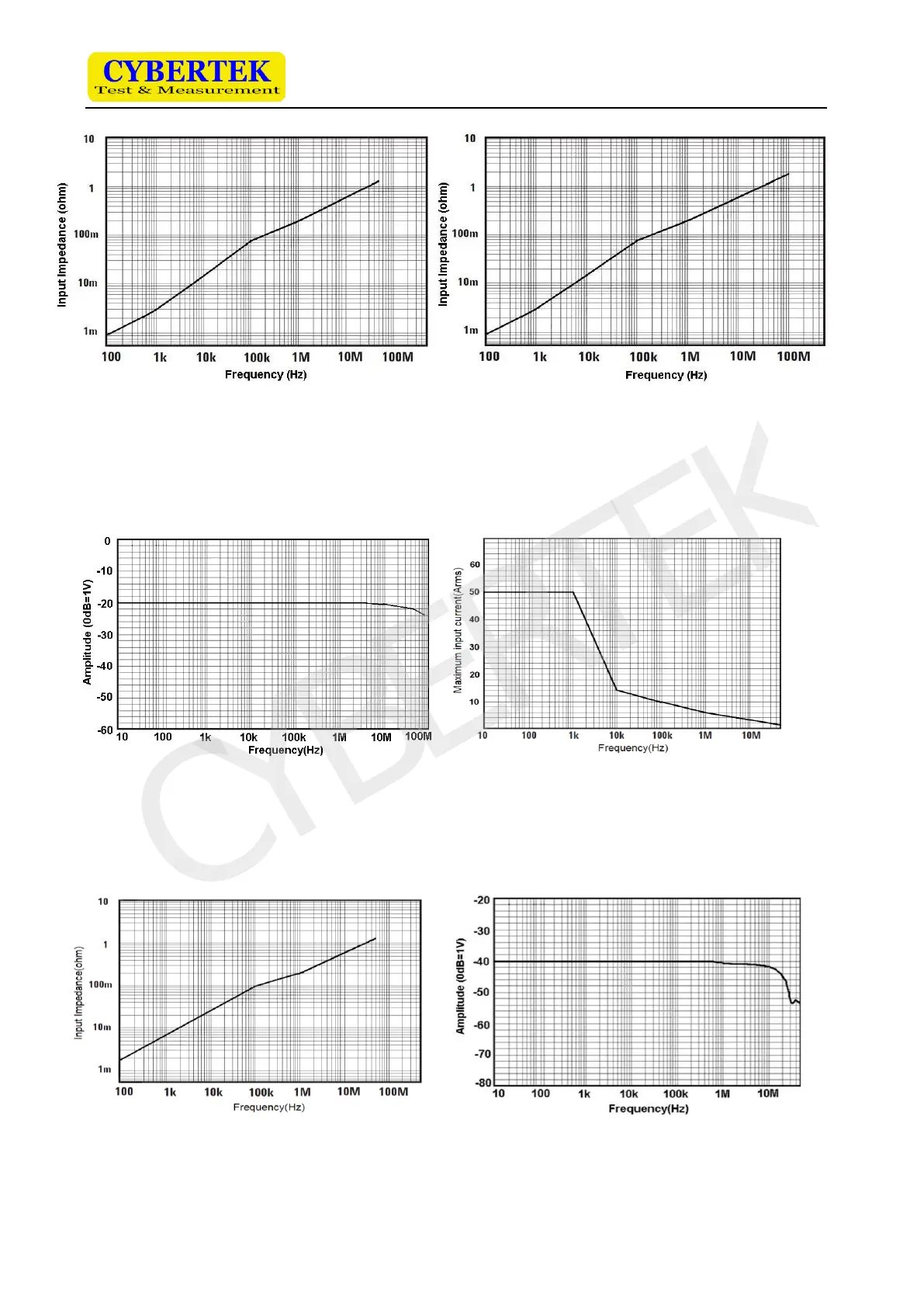

Fig. 3.a CP8030B Fig. 3.b CP8030H
Input impedance VS Frequency Input impedance VS Frequency
Fig 4 CP8050A Amplitude-Frequency Curve Fig 5 CP8050A Continuous maximum input rating
(Frequency derating)
Fig 6 CP8050A Input Impedance-frequency curve Figure 7 CP8150A Amplitude-Frequency Curve
