HCP8150(A) HCP8300(A) HCP8500

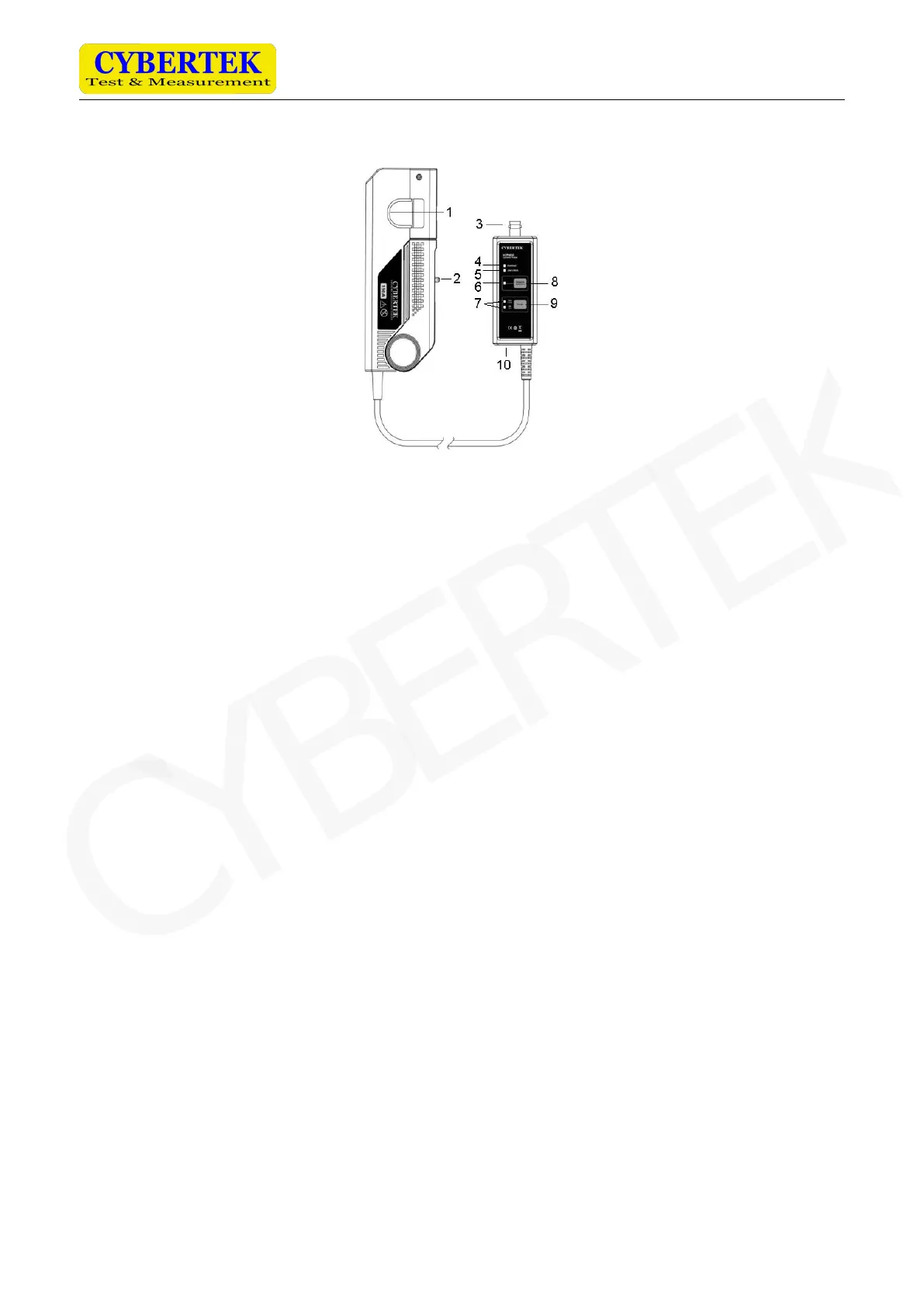

1) Sensor Head
The core component to measure conductor current. The component contains a precise semi-conductor that could be
damaged by drastic change of environmental temperature, external pressure and shock. Please be careful during
measurement.
2) Opening lever
The operating lever used to open the sensor head. Pull the lever to open the sensor jaw, put in the cable under test,
and push the lever to lock the sensor head to measure the current.
3) BNC Output Connector
The standard BNC port that can be connected to oscilloscope of any brand by a standard BNC Coaxial Cable
(CK-310).
4) Overload Indicator LED
If / when the current under measured exceeds the limit current, the red LED will light up and the buzzer will sound
an alarm.
5) Jaw on indicator
When the light is on, it means that the push rod is in the unlock state. Make sure that the jaw is in the lock state
during the measurement.
6) Degaussing and Zero Setting Indicator
After pressing the degaussing zero button, the indicator light will be green, and after degaussing, the indicator light
will be off. If degaussing setting succeeds, the buzzer will make two short beeps. If degaussing setting failed, the
buzzer will make an extension beep of about one second.
7) Range LED Indicator
The green LED indicates the selected range.
8) Degauss auto zero button
Frequent usage of the device will generate residual magnetic field. Please degauss and zero set before measurement
for better measurement precision. Press the degaussing and auto zero button to trigger the process (should be around
5s).
