Cybex Eagle 11000 Chest Press Owner’s Manual
Assembly
Page 4-5

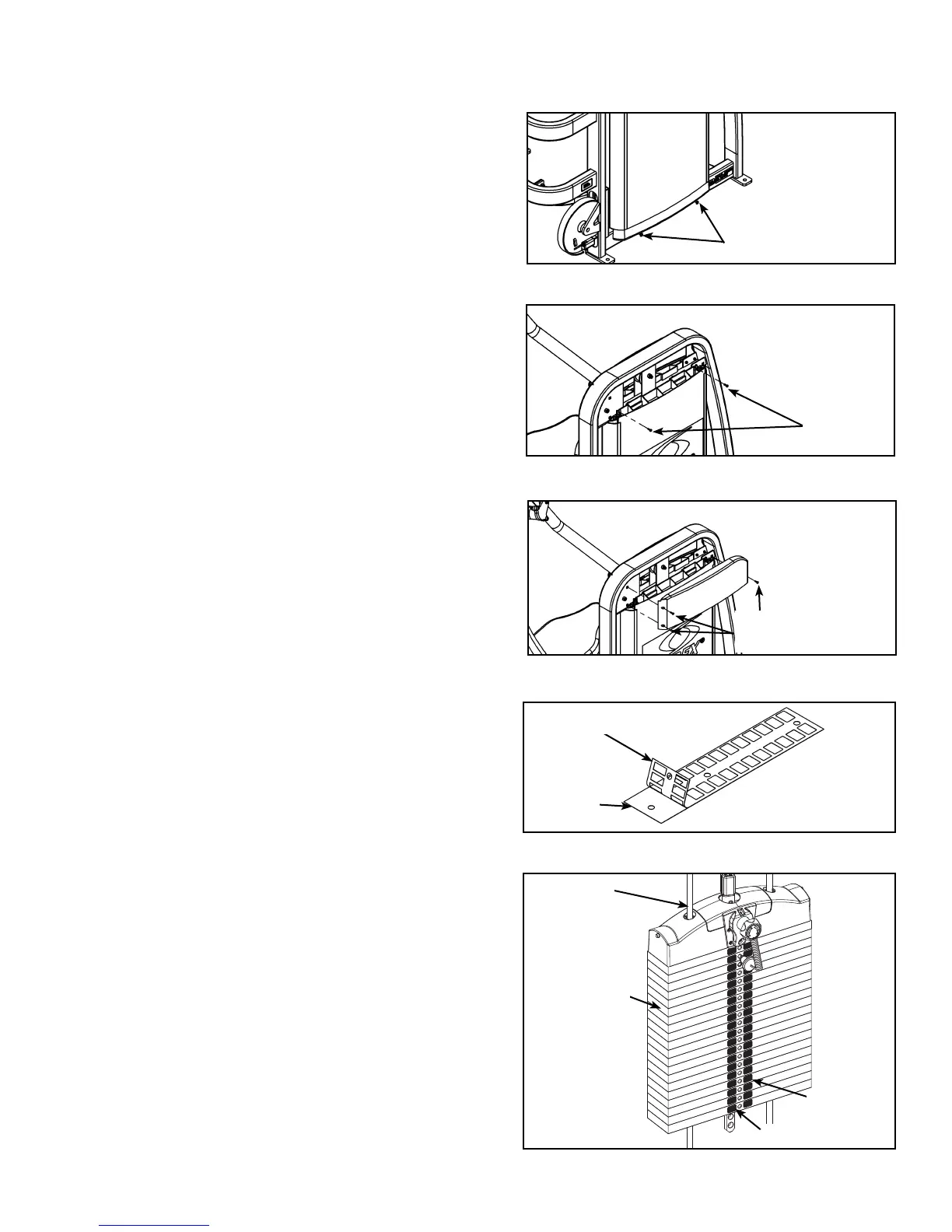

8. Install back shrouds
Carefully place shroud back into position on the two A.
bottom screws. See Figure 14.
Install the top two screws securing the back shroud. B.
See Figure 15.
Install the three Phillips head screws securing the top C.
(back) shroud. See Figure 16.
9. Install weight plate decals.
NOTE: You have the option to use pounds, kilograms or
both.
Slowly and carefully peel off back side of decal. See A.
Figure 17. NOTE: When peeling off back cover, make
sure that the decals remain attached to the front
sticker.
Align holes in decal with appropriate holes in weight B.
stack. NOTE: Do not allow the adhesive to touch
weight stack at this time.
Insert a guide pin through each hole of the template. C.
NOTE: A guide pin can be anything that fi ts through
the weight stack hole, such as a weight stack selector
pin.
Carefully align decal and rub it onto weight plates. D.
Carefully remove front side, leaving decals adhering E.
to weight plates. See Figure 18.
NOTE: It is important that you perform regular inspection
and maintenance activities on your equipment. See
the CYBEX Eagle Owner’s Manual for inspection
and maintenance activities. If you do not have
a CYBEX Eagle Owner’s Manual or if you have
any questions or concerns, call CYBEX Customer
Relations at 888-462-9239.
10. Verify proper operation
11. Anchor machine to the fl oor.
Securely anchor machine to the fl oor using the A.
anchor holes provided in each machine.
NOTE: Cybex is not responsible for the actual anchoring of
equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile
capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull
down with anchors. Shim any leg or frame not in
contact with surface using fl at washers.
Figure 17
180
81.0
144.0
135.0
126.0
117.0
108.0
200
99.0
90.0
300
280
260
240
220
320
340
153.0
180.0
360
171.0
162.0
400
380
20
9.0
72.0
63.0
54.0
45.0
36.0
40
18.0
140
120
100
80
60
160
Figure 18
Front
Back
Pounds
Weight Stack
Guide Rod
Kilograms
Figure 16
Phillips Head
Screw (3)
Figure 14
Screw
Figure 15
Screw
