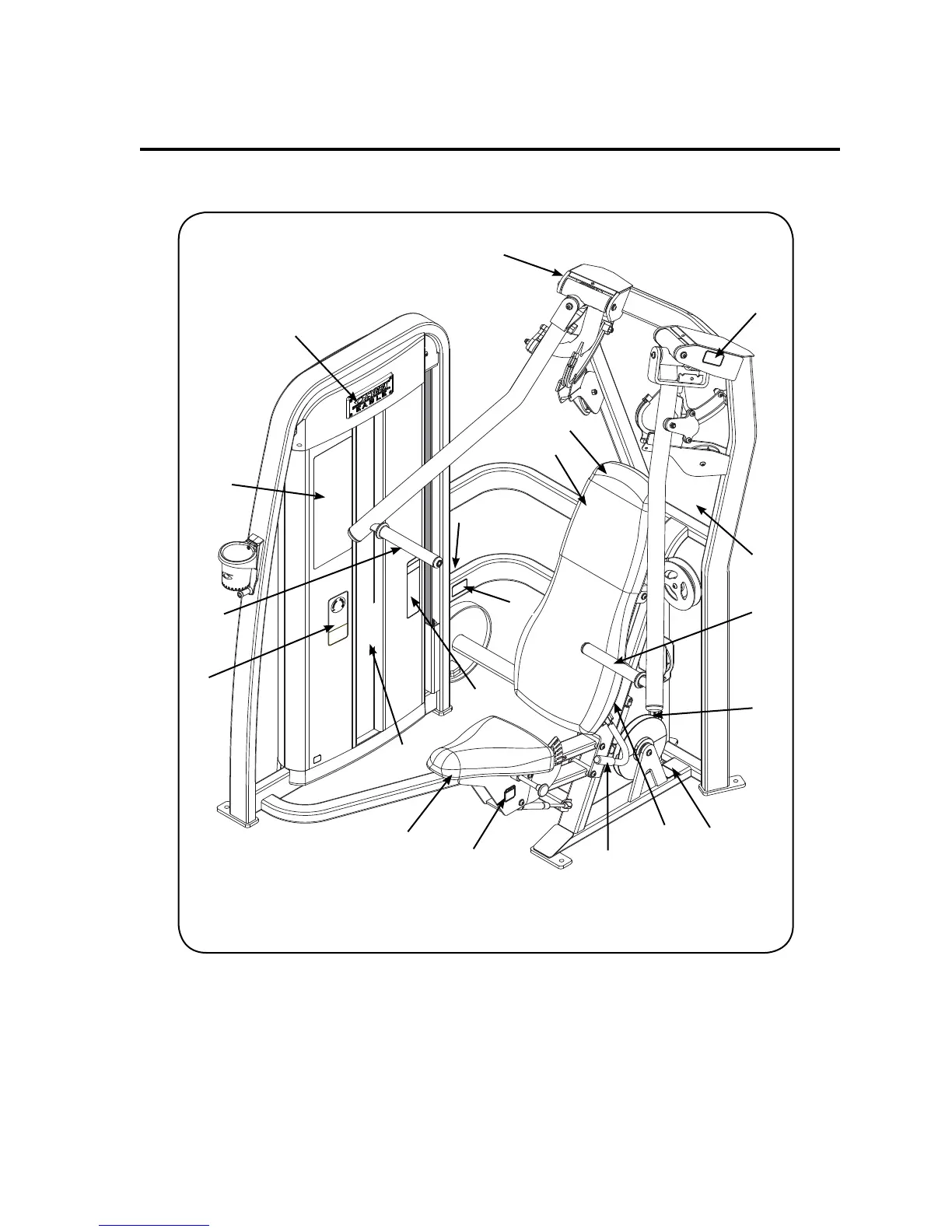

CYBEX 11000 - Exploded-View Diagram

Cybex Eagle 11000 Chest Press Owner’s Manual
Service
Page 6-3
A. Caution Decal .................... 4000Y316
B. Caution Decal .................... 4520-362
C. Warning Decal .................... 4605-381
D. Placard Decal ...................... 11000-610
E. Eagle Plaque ...................... 11040-789
F. Back Pad w/Wear Cover ... 4800-180
G. Wear Cover ........................ 4800-183
H. Seat Pad ............................ 4800-172
DESCRIPTION PART NO.
I. Grip................................11090-385
J. Grip ................................ 4605-502
K. Serial Number Decal
L. Cable Sub Assembly ..... 11000-002
M. Cable Sub Assembly ..... 11000-003
N. Belt ................................ GB000202
O. Weight Selector Pin ....... BH030207
P. Increment Weight Decal. 11000-407
DESCRIPTION PART NO.
J
I
G
H
J
CHEST PRESS
PRODUCT NO. 11000
B
C
E
D
NOTE: See exploded-view diagram for location of K (serial number decal),
and N (belt).
A
A
B
A
A
A
O
M
L
F
P
