Cybex Eagle 11000 Chest Press Owner’s Manual
Assembly
Page 4-4
Lower guide rod and secure lower snap ring. Repeat L.
steps 6J - 6L for the other guide rod.
7. Belt Routing.
Verify belt is routed through top of pulley bracket and A.
then route end of belt down to the top weight.
Carefully lift top weight and verify that the position of B.
the belt clamp (on the top weight) is aligned properly
with the top pulley bracket (on the machine). See
Figure 10.
Slide belt through slot in belt clamp.C.
Verify belt and insert are installed properly, as shown in D.
Figure 11A. NOTE: Do not install the insert backwards as
shown in Figure 11B.
Pull belt tight and secure belt to clamp with the two E.
set screws. See Figure 12. NOTE: Torque set screws
300-350 in./lbs.
Place weight stack pin in each plate to verify proper F.
installation.
Without selecting any resistance, lift top weight G.
up and down (simulating normal operation).
Have an assistant verify that the belt is moving smoothly and is H.
routed straight from the top pulley bracket to the
to weight belt clamp.
Reinstall the six increment weights that were removed I.
in step 6B. See Figure 13.
Turn the Increment Weight Adjusting Knob to select all J.
15 lbs.

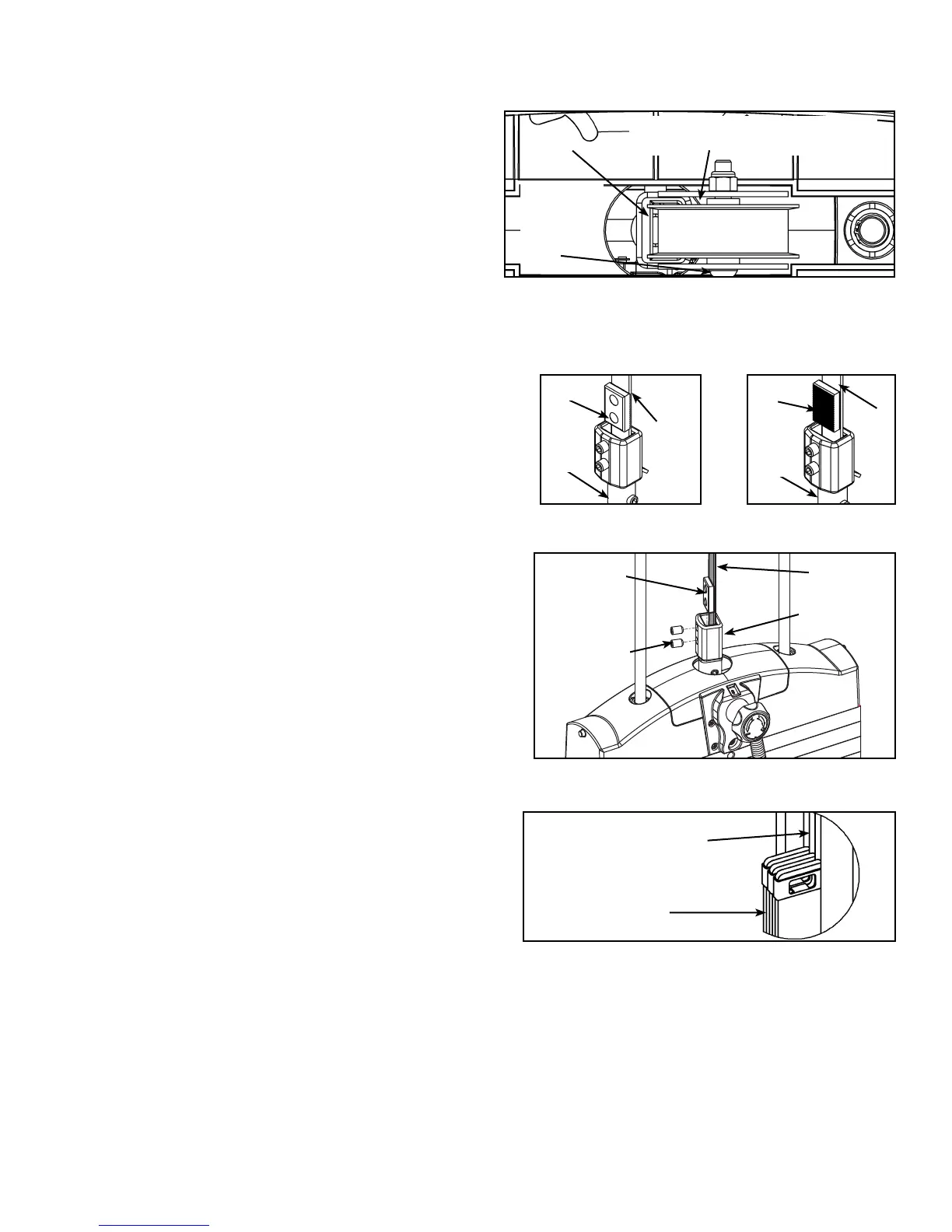

Figure 12
Belt clamp
Belt
Belt clamp
insert
Set screws
Figure 13
Grooves
Increment Weights
Correct belt routing Wrong belt routing
Stem
Belt
Insert
Stem
Belt
Insert
Figure 11A
Figure 11B
Top Pulley
Figure 10 (top view from pulley down to belt clamp)
Belt
Insert and Set Screws (not
shown) are on this side.
Increment
Weight
Adjusting
Knob
