Cybex Eagle 11000 Chest Press Owner’s Manual
Assembly
Page 4-3

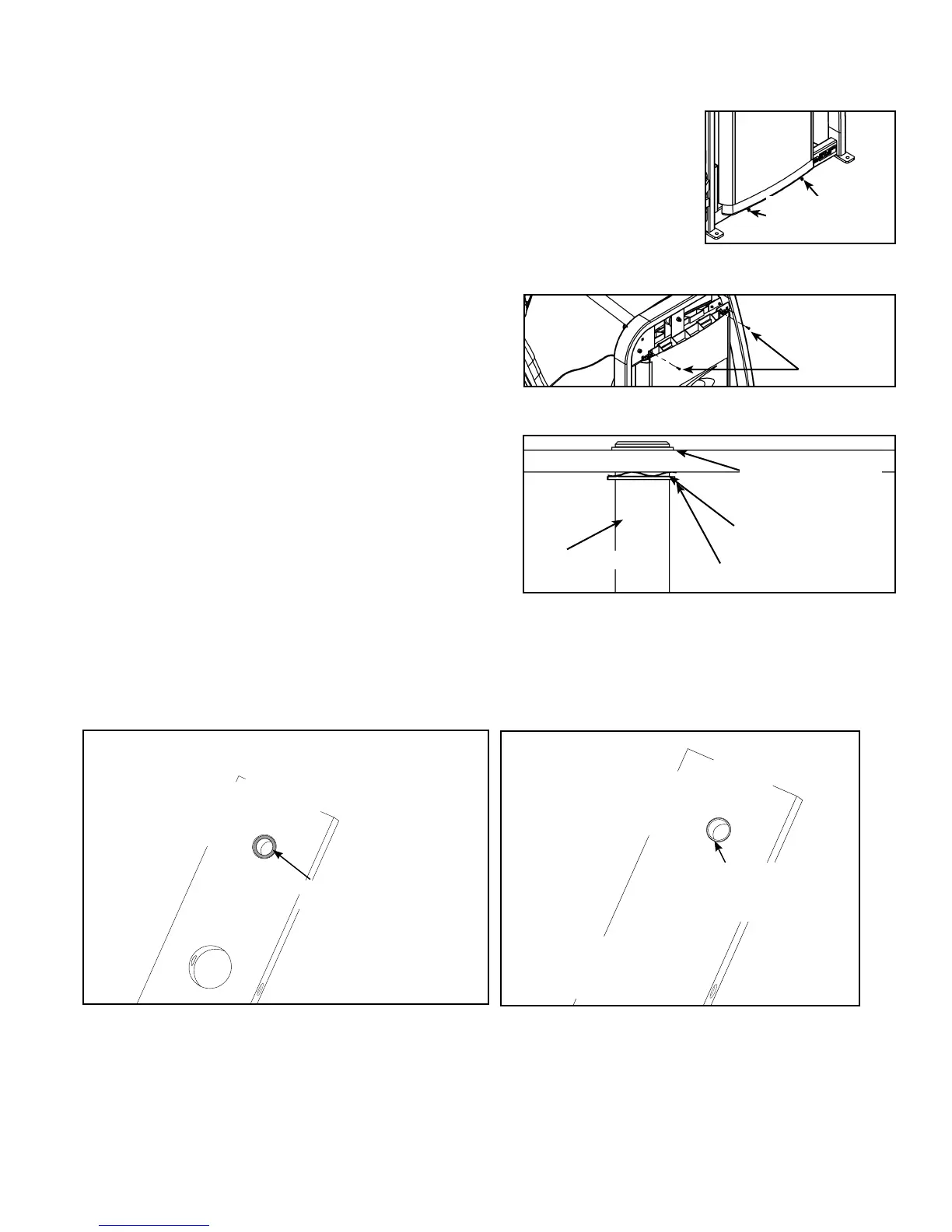

Loosen bottom two screws shown in Figure 6. G.
NOTE: Do not remove the bottom two screws.
Remove the top two screws securing the back shroud. See Figure 7.H.
Carefully slide rear shroud assembly upward and remove.I.
6. Install the weight stack.
Note how the increment weights are installed.A.
With an assistant holding the increment weights, move B.
the adjusting knob to 0 lbs. and remove all six increment
weights (three each side).
Using an external snap ring pliers, remove the upper C.
snap ring from one of the guide rods and carefully lower
the guide rod. See Figure 8.
Remove lower snap ring and wave washer from the D.
guide rod. Repeat steps 6C and 6D to remove both
snap rings from other guide rod.
If possible, lean guide rods outward, away from machine E.
in order to provide the most room for installing weight
plates.
Slide top weight up and out of machine and carefully set F.
it aside.
Wipe guide rods clean over entire length. Lubricate with G.
light coating of medium weight automotive engine oil.
Carefully install each weight plate one at a time. H. NOTE: When installing weight plates, position plates so wide
edges of bushing face upward and narrow edges of bushing face downward. See Figures 9A and 9B.
Slide top weight onto guide rods.I.
Place lower snap ring and wave washer onto guide rod (about 3” from the top end of guide rod).J.
Raise guide rod up through mounting hole and install the upper snap ring.K.
Figure 8
Upper snap ring
Lower snap ring
Frame
Guide rod
Wave washer
Figure 7
Screw
NARROW
bushing edge
WRONG
WIDE bushing
edge faces
upward
CORRECT
NOTE: The narrow bushing
edge must face downward.
Figure 9A Figure 9B
Figure 6
Screw (loosen -
do not remove)
