CYBEX 750AT - Handle Assembly Swap Procedure; Remove Right Handle Assembly; Remove Left Handle Assembly

Cybex Arc Trainer 750A/750AT Owner’s Manual
26
Remove left and right handle assembly
NOTE: The left and right handle assemblies are shipped in the reverse positions. The handle
assemblies must be removed and swapped for proper setup and assembly.

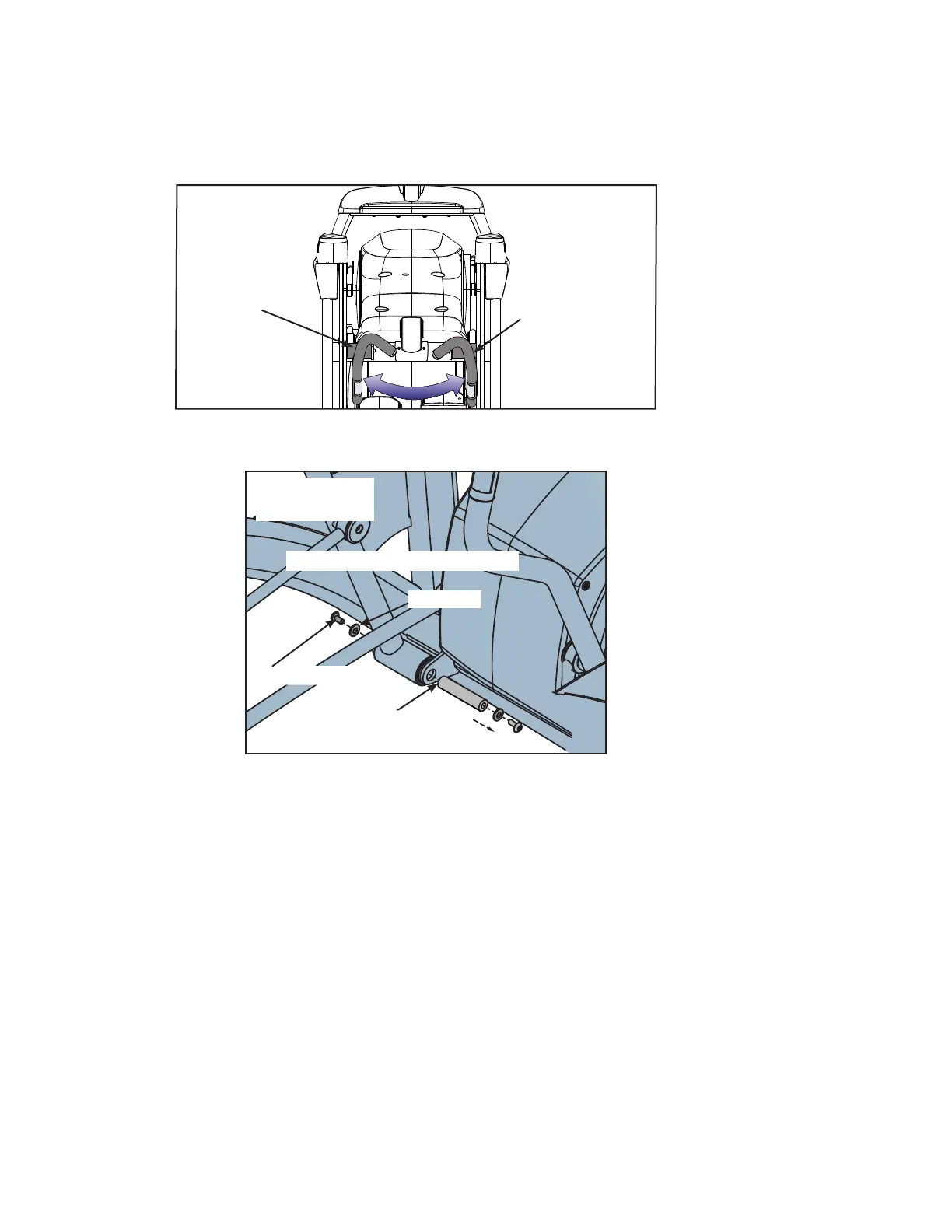

Shipping Position
Right
Handle
Assembly
Left
Handle
Assembly
750AT
Locate the screws and washers that secure each handle assembly to the main frame. 1.
Screw/Loctite
Washer
Pivot Pin
#21
(Both Sides–Left Side Shown)
750AT
Using a 7/32” Allen wrench (#15), remove the screws and washers from the right handle 2.
assembly. Refer to the above diagram.
Verify right handle assembly is mounted on the left side. Refer to diagram at top of page.3.
