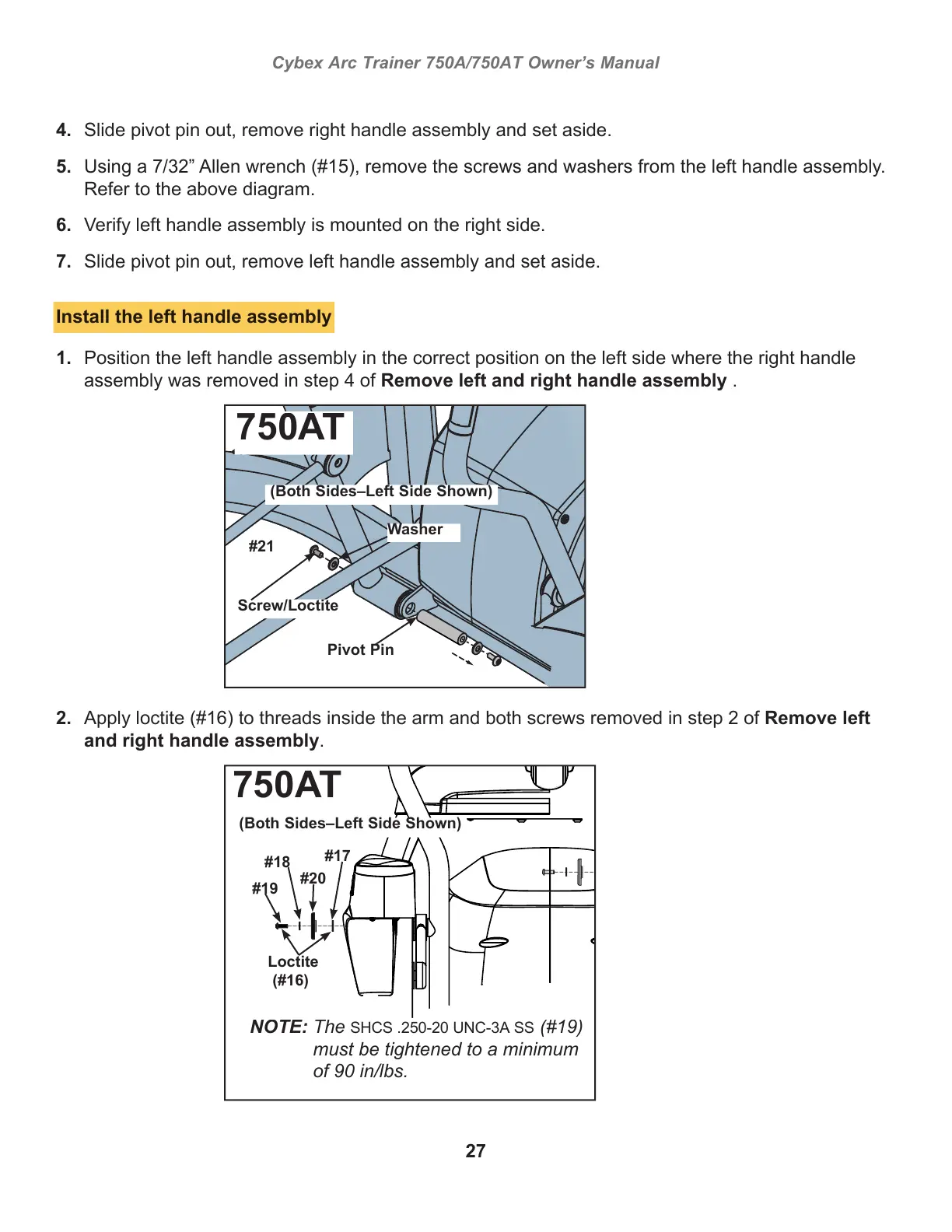

Cybex Arc Trainer 750A/750AT Owner’s Manual
27
Slide pivot pin out, remove right handle assembly and set aside.4.
Using a 7/32” Allen wrench (#15), remove the screws and washers from the left handle assembly. 5.
Refer to the above diagram.
Verify left handle assembly is mounted on the right side.6.
Slide pivot pin out, remove left handle assembly and set aside.7.
Install the left handle assembly
Position the left handle assembly in the correct position on the left side where the right handle 1.
assembly was removed in step 4 of Remove left and right handle assembly .
Screw/Loctite
Washer
Pivot Pin
#21
(Both Sides–Left Side Shown)
750AT
Apply loctite (#16)2. to threads inside the arm and both screws removed in step 2 of Remove left
and right handle assembly.
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
NOTE: The SHCS .250-20 UNC-3A SS (#19)
must be tightened to a minimum
of 90 in/lbs.
750AT
