CYBEX 750AT - Complete Left Handle Installation; Attach Left Linkage Rod

Cybex Arc Trainer 750A/750AT Owner’s Manual
28
Place left handle assembly in position and slide pivot pin back in place. Refer to diagram under 3.
step one above.
Secure handle assembly with the screws and washers removed in step 2 of 4. Remove left and
right handle assembly . Refer to diagram under step one above.

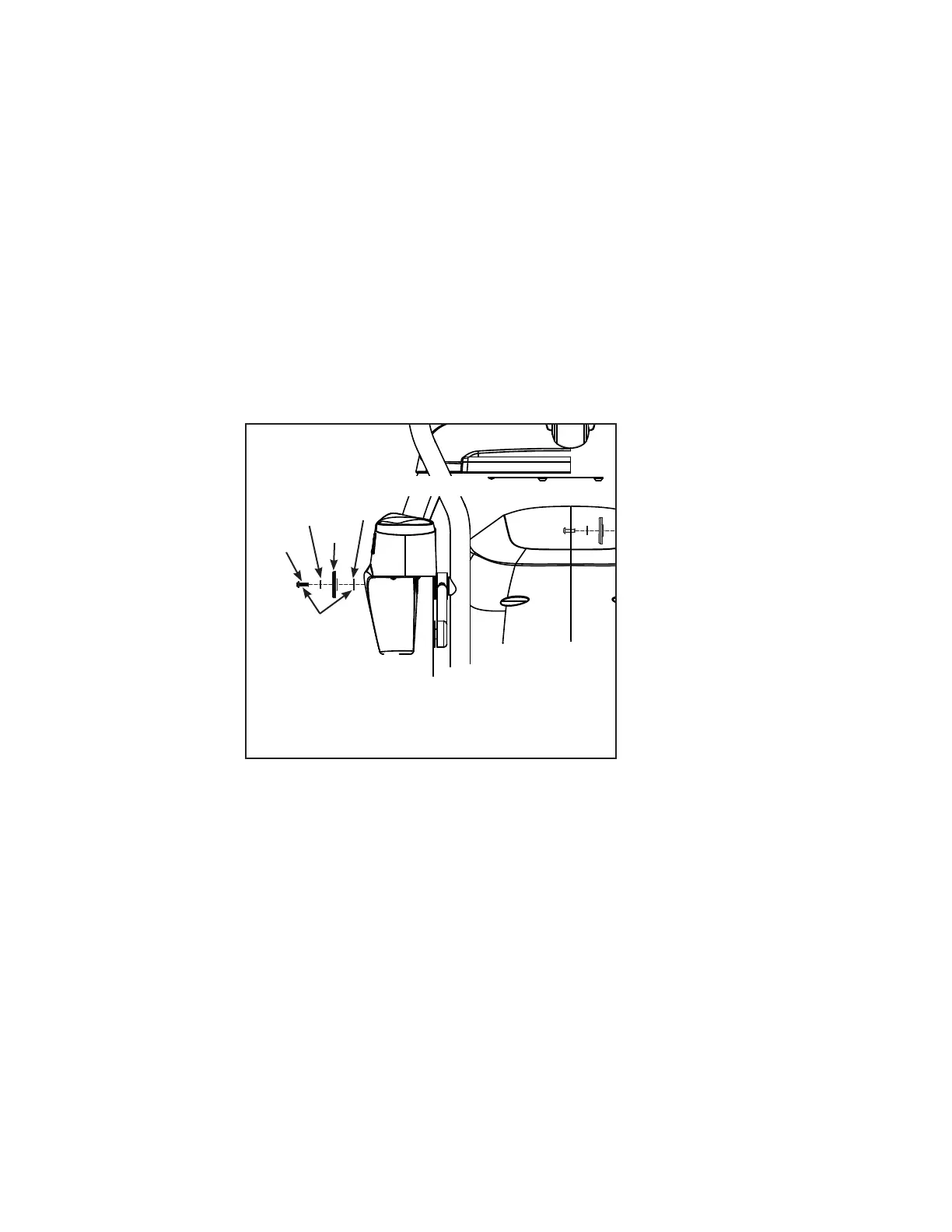

Locate left linkage rod, left handle assembly, 5. linkage rod cap 2.00 OD (#20), flange spacer (#17),
SHCS .250-20 UNC-3A SS (#19), and flat washer .281 ID x .500 OD x .062 T (#18). Refer to
diagram under step two above.
Place a drop of loctite (#16) on each 6. SHCS .250-20 UNC-3A SS (#19) and another drop inside the
shaft into which the SHCS (#19) will be tightened.
Using a 3/16” Allen wrench (#7), secure linkage rod to handle assembly with 7. linkage rod cap 2.00
OD (#20), flange spacer (#17), SHCS .250-20 UNC-3A SS (#19) and at washer, .281 ID x .500
OD x .062 T (#18).
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
NOTE: The SHCS .250-20 UNC-3A SS (#19)
must be tightened to a minimum
of 90 in/lbs.
750AT
Verify the 8. SHCS .250-20 UNC-3A SS (#19) are tightened to a minimum of 90 in/lbs.
