Cybex Arc Trainer 750A/750AT Owner’s Manual
30

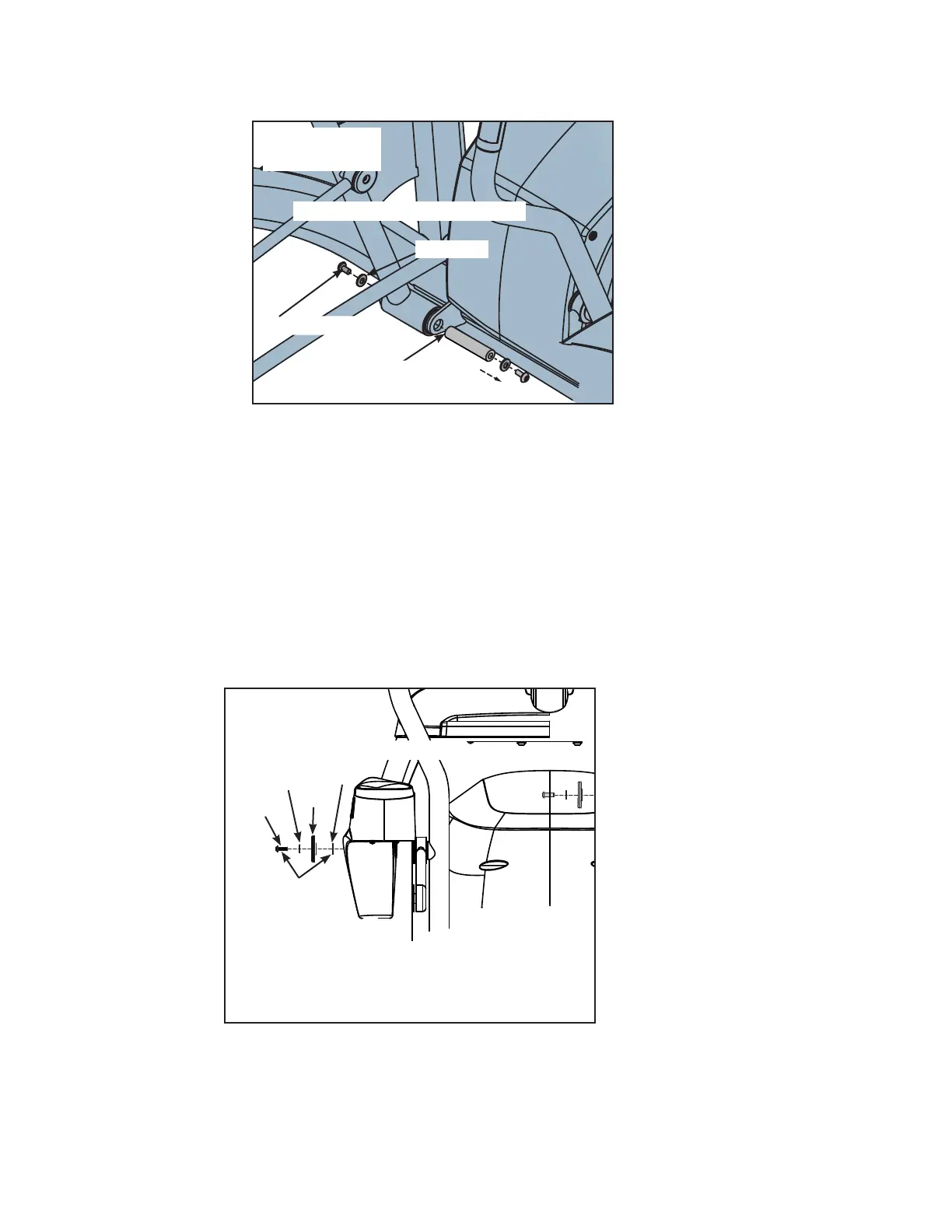

Place right handle assembly in position and slide pivot pin back in place.3.
Screw/Loctite
Washer
Pivot Pin
#21
(Both Sides–Left Side Shown)
750AT
Secure handle assembly with the screws and washers removed in step two of 4. Remove left and
righthandles. Refer to the above diagram.
Locate right linkage rod, right handle assembly, 5. linkage rod cap 2.00 OD (#20), flange spacer
(#17), SHCS .250-20 UNC-3A SS (#19), and flat washer .281 ID x .500 OD x .062 T (#18). Refer
to diagram at top of page.
Place a drop of threadlocker (#21) on each 6. SHCS .250-20 UNC-3A SS (#19) and another drop
inside the shaft into which the SHCS will be tightened.
Secure linkage rod to handle assembly with linkage rod cap7. 2.00OD (#20), flange spacer (#17), SHCS
.250-20UNC-3ASS (#19) and flatwasher.281IDx.500ODx.062T (#18). NOTE: The SHCS.250-20
UNC-3A SS (#19) must be tightened to a minimum of 90 in/lbs.
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
NOTE: The SHCS .250-20 UNC-3A SS (#19)
must be tightened to a minimum
of 90 in/lbs.
750AT
