4. Tighten screw to a minimum of 90 in/lbs.
Verify handle assemblies are now installed in the correct position.

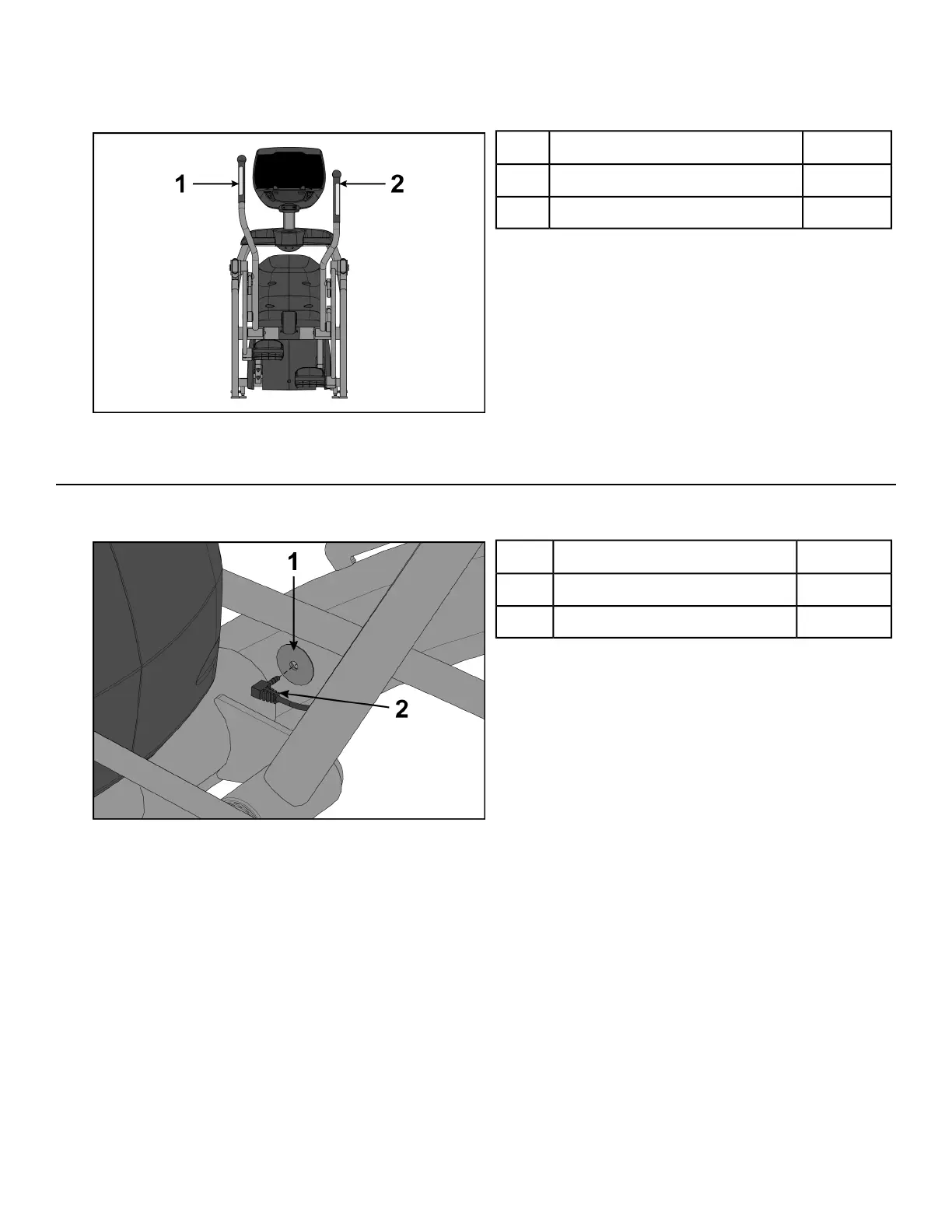

Qty.Description
1Left handle assembly1
1Right handle assembly2
Install contact heart rate cable
1. Plug right heart rate cable into main frame socket.
Position plug so handle does not rub cable during operation.
Qty.Description
1Main frame socket1
1Heart rate wire2
2. Plug left heart rate cable into main frame socket.
Position plug so handle does not rub cable during operation.
Verify heart rate cables do not rub on handle during operation.
Page 36 of 83
Cybex 626A/626AT, 627A/627AT Arc Trainer Part Number 5626-4 J
