Straight Edge
Pulley
Pulley
Touch
Straight
Edge Here
(two places)
NOTE: The
straight
edge must
be no
more than
1/16” from
pulley
edge.
NOTE: The
straight
edge must
be no
more than
1/16” from
pulley
edge.
Touch
Straight
Edge Here
(two places)
6. Installing the new lower pivot assembly.
A. Slide the lower pivot assembly through both
drive belts and into place on the frame.
B. Confirm that both drive belts are straight
and centered in place.
C. Verify if the two spacers are present.
D. If spacers are present then confirm that they
are still in place under the lower pivot shaft.
NOTE: If spacers are not present then go to
step 6E.
E. Using a 7/16” socket wrench, tighten the two
screws, two lock washers and two flat washers
securing the lower pivot assembly in place.
F. Using a straight edge, verify that both pulleys
are aligned properly. See Figure 4. NOTE: The
straight edge must be no more than 1/16” from
pulley edge.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 • www.cybexinternational.com • techhelp@cybexintl.com
techpubs@cybexintl.com • Copyright © 2008, Cybex International, Inc. All rights reserved • 600A-317 B • March 2008

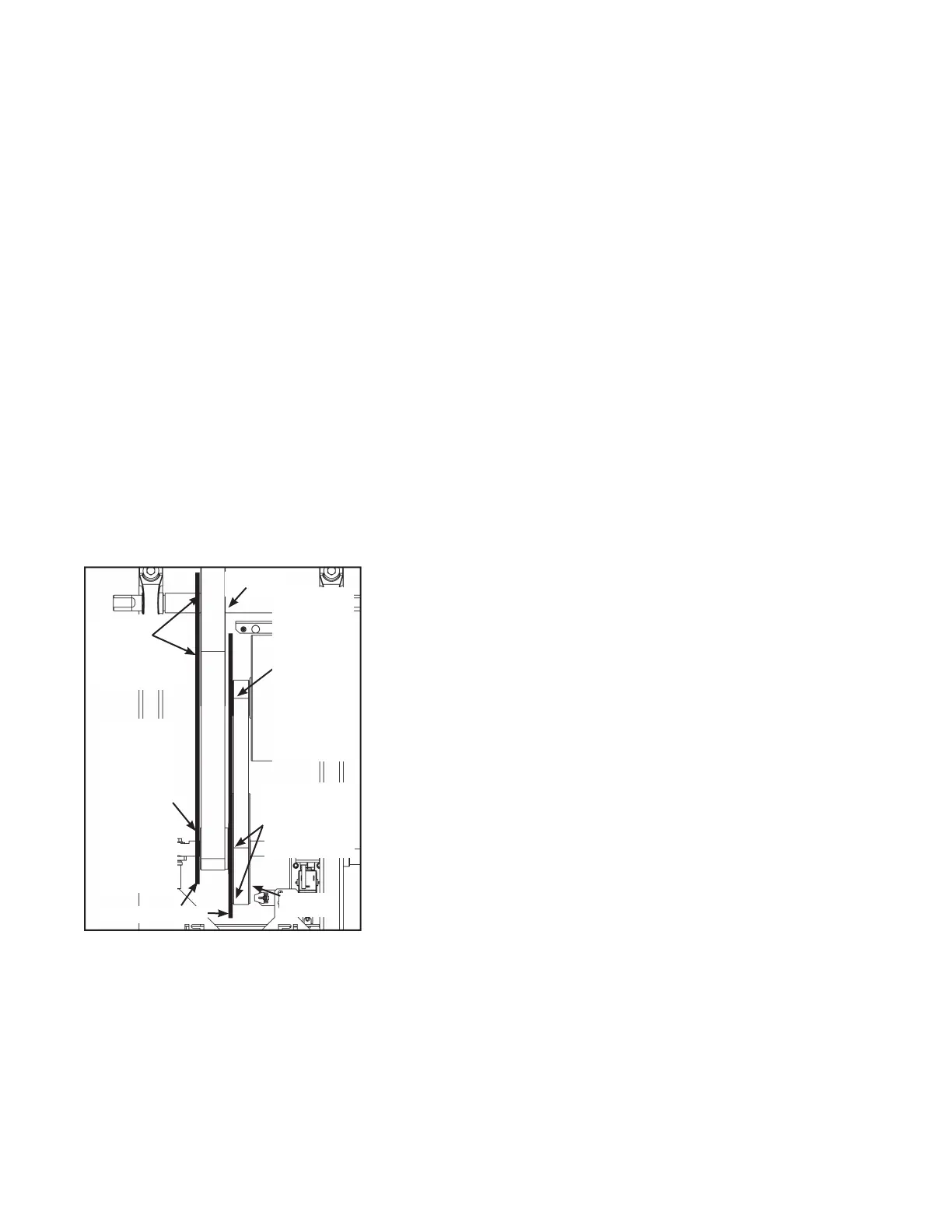

Figure 4
7. Attach the access cover.
A. While being sure not to pinch any cables,
hold the acces cover in place. See Figure 2.
B. Using a Phillips head screwdriver, tighten the
four screws and four washers securing the
access cover. See Figure 2.
8. Test for proper operation.
A. Connect the power cord into the power outlet.
B. Turn the main power switch above the power
inlet to the on (l) position.
C. Operate the unit at all levels to verify proper
operation.
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
Arc Trainer
®
and its mark are registered trademarks of Cybex International, Inc.
