Arc Trainer
®
600A/610A Lower Pulley
Kit No. 600AK014
Installation Instructions
1. Read and understand all instructions thoroughly
before installing this kit.

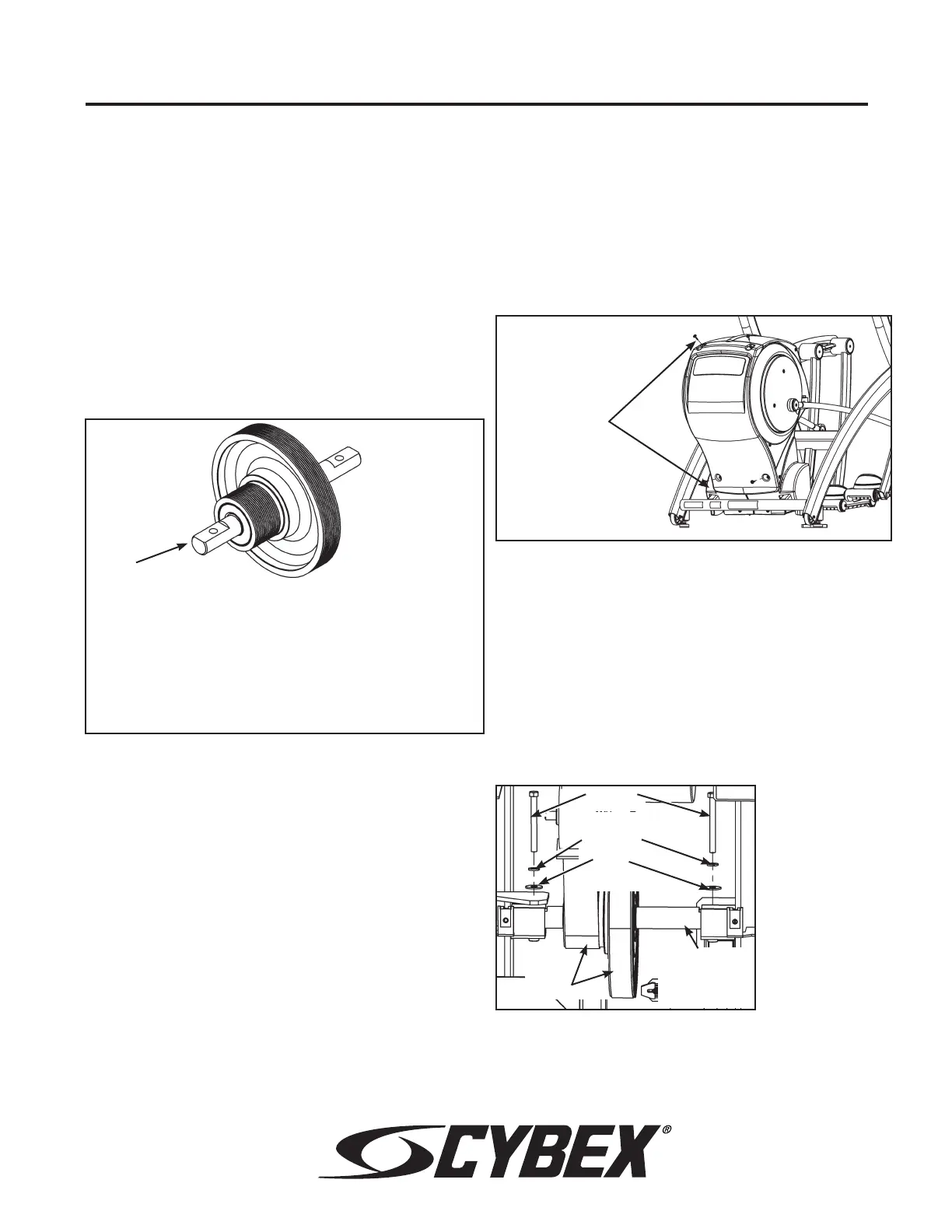

2. Verify kit contents. See Figure 1.
5. Remove the lower pivot assembly.
A. Using a 7/16” socket wrench, remove the two
screws, two lock washers and two flat washers
from the lower pivot shaft.
B. Remove the lower pivot assembly out of the
secondary belt and from the frame. See
Figure 3.
Figure 1
A. Lower Pulley, 600AK014
3. Disconnect the power source.
A. Turn the main power switch to the off (0)
position and unplug the power cord from the
power outlet
! WARNING: Disconnect the power cord before
continuing this procedure. Keep wet
items away from inside parts of the unit.
Electrical shock could occur even if the
unit is unplugged.
A
4. Remove the access cover.
A. Using a Phillips head screwdriver, remove the
four screws and four washers securing the
access cover. See Figure 2.
B. Remove the access cover.
Figure 3
Figure 2
Screw (4)
Screw
Lock
Washer
Flat
Washer
Lower Pivot
Shaft
Drive
Belts
NOTE: This instruction sheet describes how to replace
the lower pulley on the Arc Trainer 600A/610A.
TOOLS REQUIRED
• 7/16” Socket wrench
• 3” Socket wrench extension
