Arc Trainer
®
Hardware Pack
Tools Required
• Phillips head screwdriver
• 7/32” Hex key (supplied with kit)
• 3/16” Hex key (supplied with kit)
1. Read and understand all instructions
thoroughly before installing this kit.

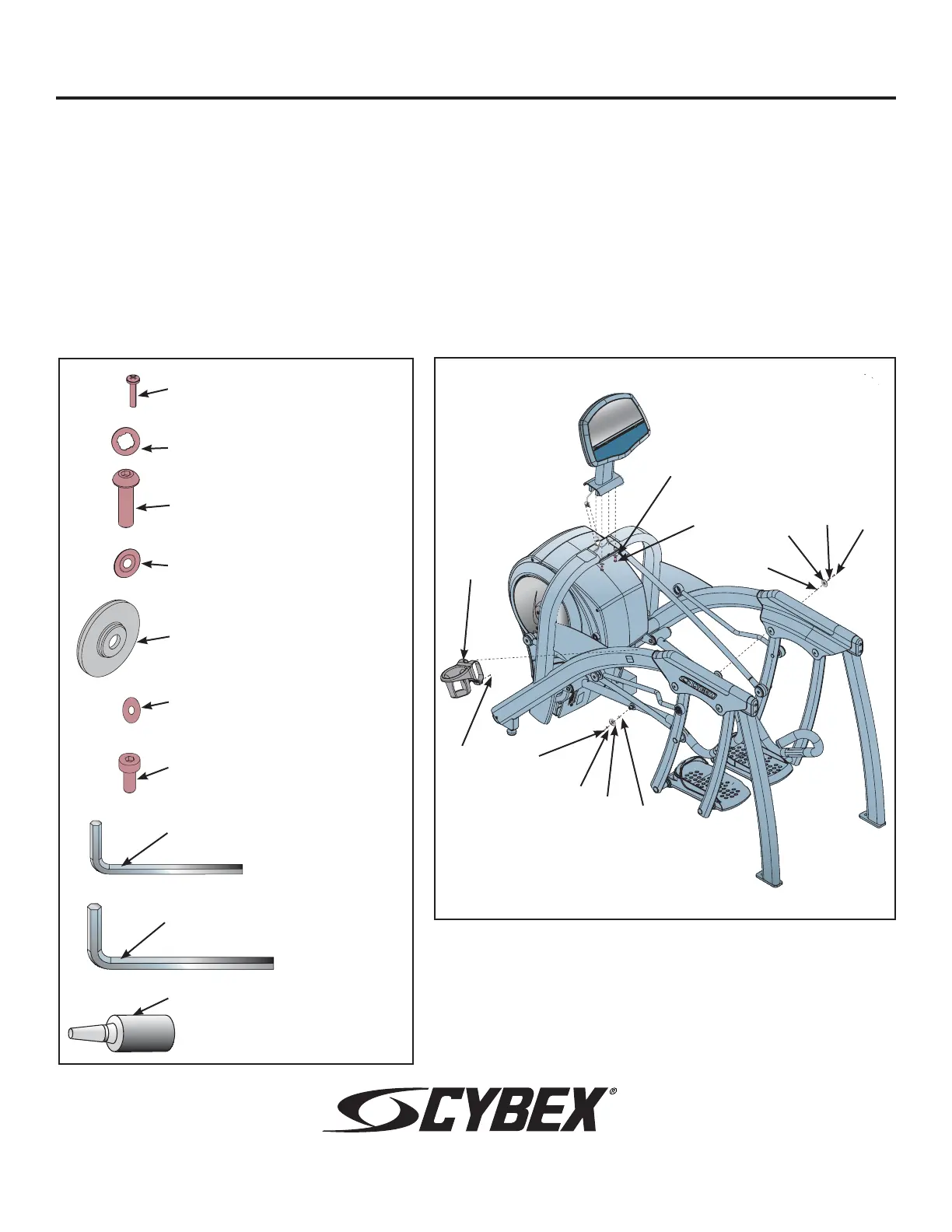

2. Verify kit contents. See Figure 1.
Kit No. 610AK017 Instruction Sheet
Figure 2
Figure 1
3. Install the hardware pack.
A. Install the hardware as shown in Figure 2.
Refer to Chapter 5 of the Arc Trainer 610A
Owner’s Manual part number 5610A-4 for
detailed instructions. NOTE: Place a drop
of loctite (10) on the SHCSC (7) and place
another drop of loctite into the shaft where
the SHCSC (10) will be tightened into).
Allen wrench, 3/16”,
BK030201, (1)
Allen wrench, 7/32”,
BK030204, (2)
Linkage Rod Cap,
PL-16535, (2)
Washer .281 x .50,
HS307601, (2)
SHCSC .250-20 x .75
HX622815, (2)
Flange Spacer,
600A-311, (2)
BHSCS .375-16 x 1.50,
JC700422, (4)
Internal Tooth Lockwasher,
JS347400, (4)
Pan HD Phil HD Self Tapping
8-16 x .75 Type WB Black
HT552515, (2)
1
3
4
5
6
7
8
9
6
Water
Bottle
Holder
1
3
2
5
7
7
6
5
4
4
2
10
Loctite #242,
YA000201, (1)
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
Arc Trainer
®
and its mark are registered trademarks of Cybex International, Inc.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 • www.cybexinternational.com • techhelp@cybexintl.com
techpubs@cybexintl.com • Copyright © 2008, Cybex International, Inc. All rights reserved • 610A-387 B • March 2008
