Cybex Eagle 11040 Leg Press Owner’s Manual
Assembly
Page 4-3

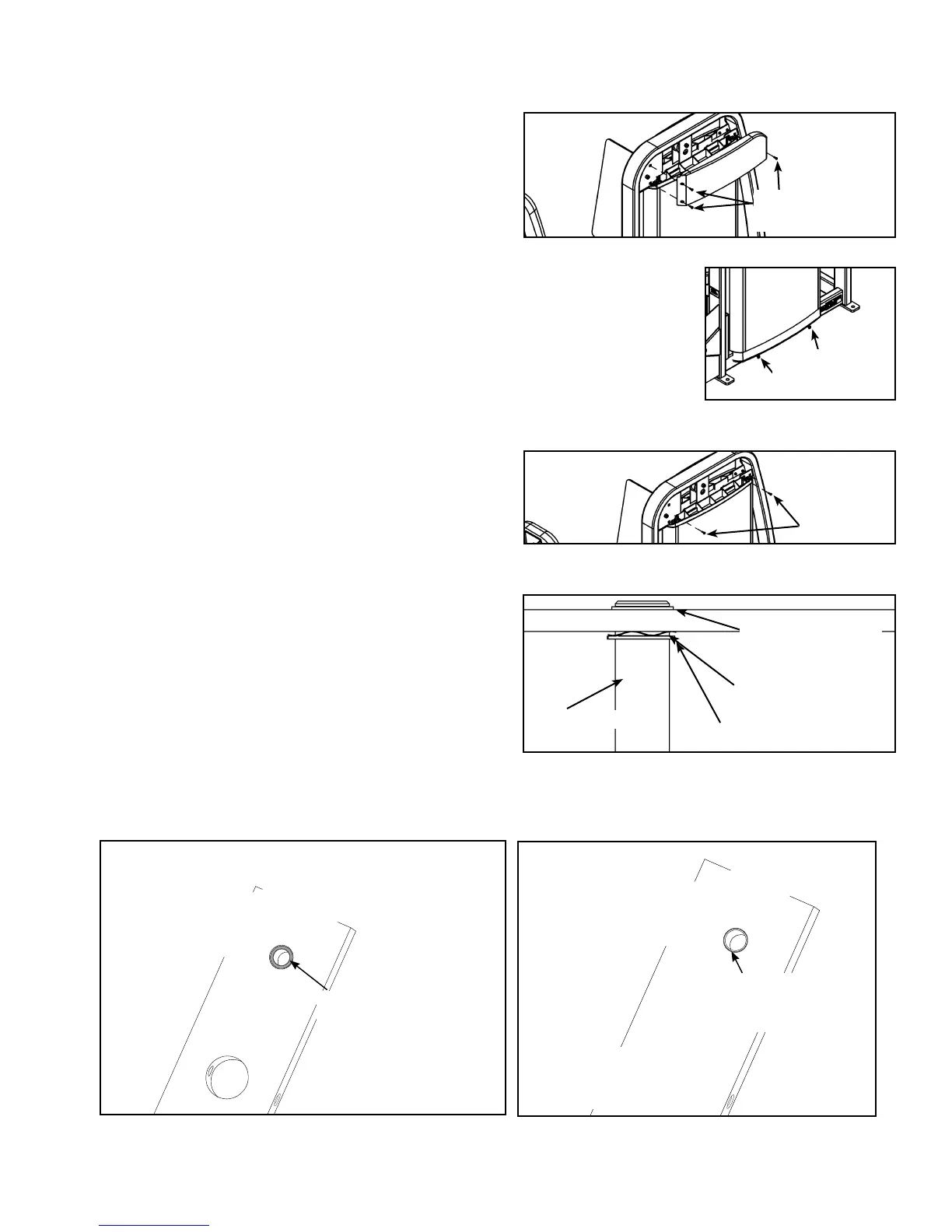

Remove the three Phillips head screws securing the E.
top (back) shroud and carefully remove the shroud.
See Figure 5.
Loosen bottom two screws shown in Figure 6. F.
NOTE: Do not remove the bottom two screws.
Remove the top two screws securing the back shroud. G.
See Figure 7.
Carefully slide rear shroud assembly upward and remove.H.
6. Install the weight stack.
Note how the increment weights are installed.A.
With an assistant holding the increment weights, move the adjusting B.
knob to 0 lbs. and remove all six increment weights (three each side).
Using an external snap ring pliers, remove the upper C.
snap ring from one of the guide rods and carefully lower
the guide rod. See Figure 8.
Remove lower snap ring and wave washer from the guide D.
rod. Repeat steps 6C and 6D to remove both snap rings
from other guide rod.
If possible, lean guide rods outward, away from machine E.
in order to provide the most room for installing weight
plates.
Slide top weight up and out of machine and carefully F.
set it aside.
Wipe guide rods clean over entire length. Lubricate with G.
light coating of medium weight automotive engine oil.
Carefully install each weight plate one at a time. H.
NOTE: When installing weight plates, position plates
so wide edges of bushing face upward and narrow edges
of bushing face downward. See Figures 9A and 9B.
Figure 8
Upper snap ring
Lower snap ring
Frame
Guide rod
Wave washer
Figure 6
Figure 7
Screw (loosen -
do not remove)
Screw
NARROW
bushing edge
WRONG
WIDE bushing
edge faces
upward
CORRECT
NOTE: The narrow bushing
edge must face downward.
Figure 9A Figure 9B
Figure 5
Phillips Head
Screw (3)
To Next Page
