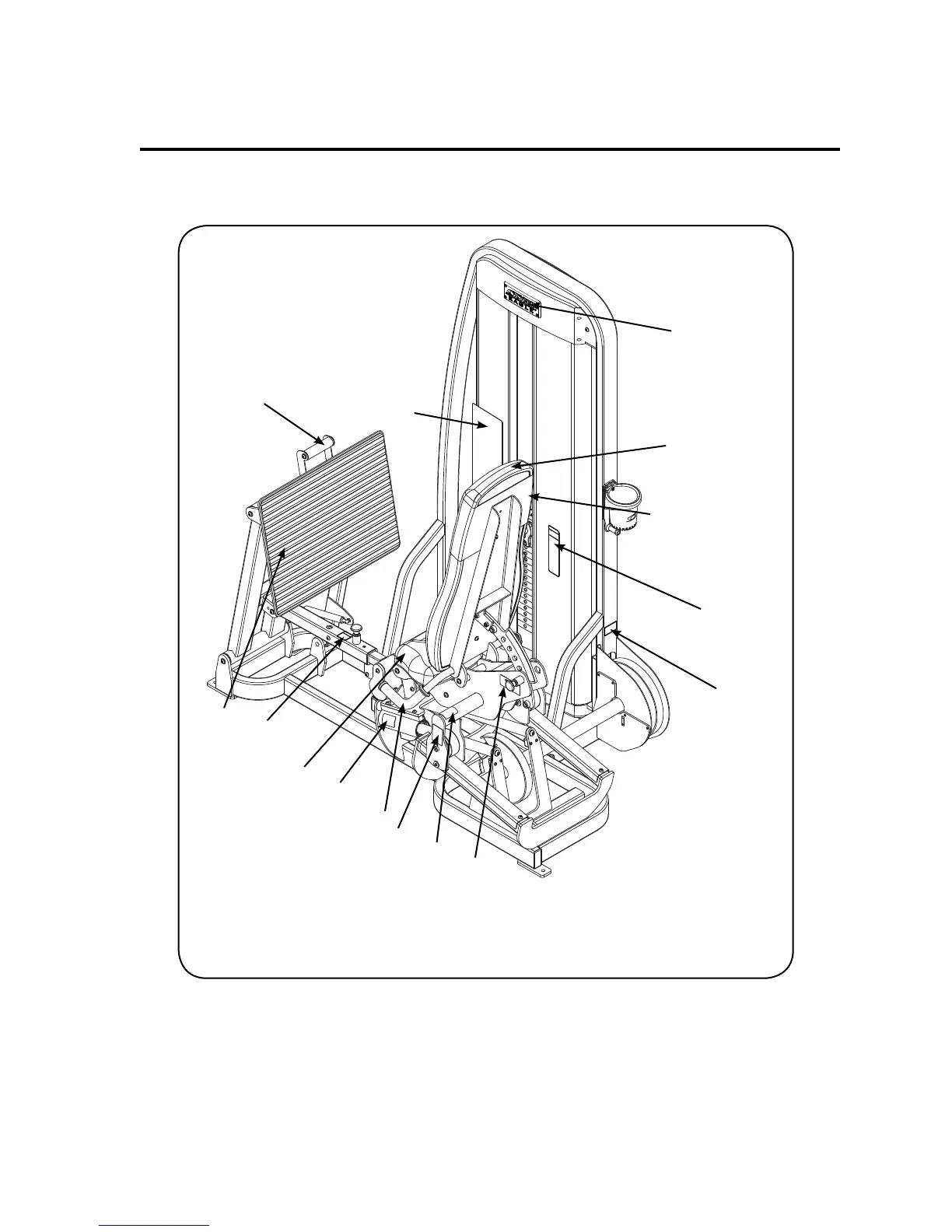

CYBEX Eagle - Exploded-View Diagram

Cybex Eagle 11040 Leg Press Owner’s Manual
Service
Page 6-3
A. Caution Decal ................... 4000Y316
B. Caution Decal .................... 8500-025
C. Caution Decal .................... 8500-026
D. Caution Decal .................... 8500-028
E. WarningDecal .................... 4605-381
F. Placard Decal .................... 11040-610
G. Eagle Plaque ...................... 11040-789
H. Back Pad w/Wear Cover ... 4800-184
I. Seat Pad ............................. 4800-164
DESCRIPTION PART NO.
J. Non-slip ........................ 11040-562
K. Grip ................................ 4605-521
L. Serial Number Decal
M. Weight Selector Pin ........ BH030207
N. Belt ................................ GB000202
O. Wear Cover (Item H) ..... 4800-187
P. Cybex Decal .................. 3900-441
Q. Grip................................ 4605-501
R. Increment Weight Decal. 11000-407
DESCRIPTION PART NO.
F
LEG PRESS
PRODUCT NO. 11040
NOTE: See exploded-view diagram for location of L
(serial number decal), M (See top weight
assembly detail ), N (68A and 68B) and P (#46) and R
(Increment Weight Decal).
H
E
G
B
I
A
J
A
K
D
C
A
O
Q
