Cybex Eagle 11040 Leg Press Owner’s Manual
Service
Page 6-8

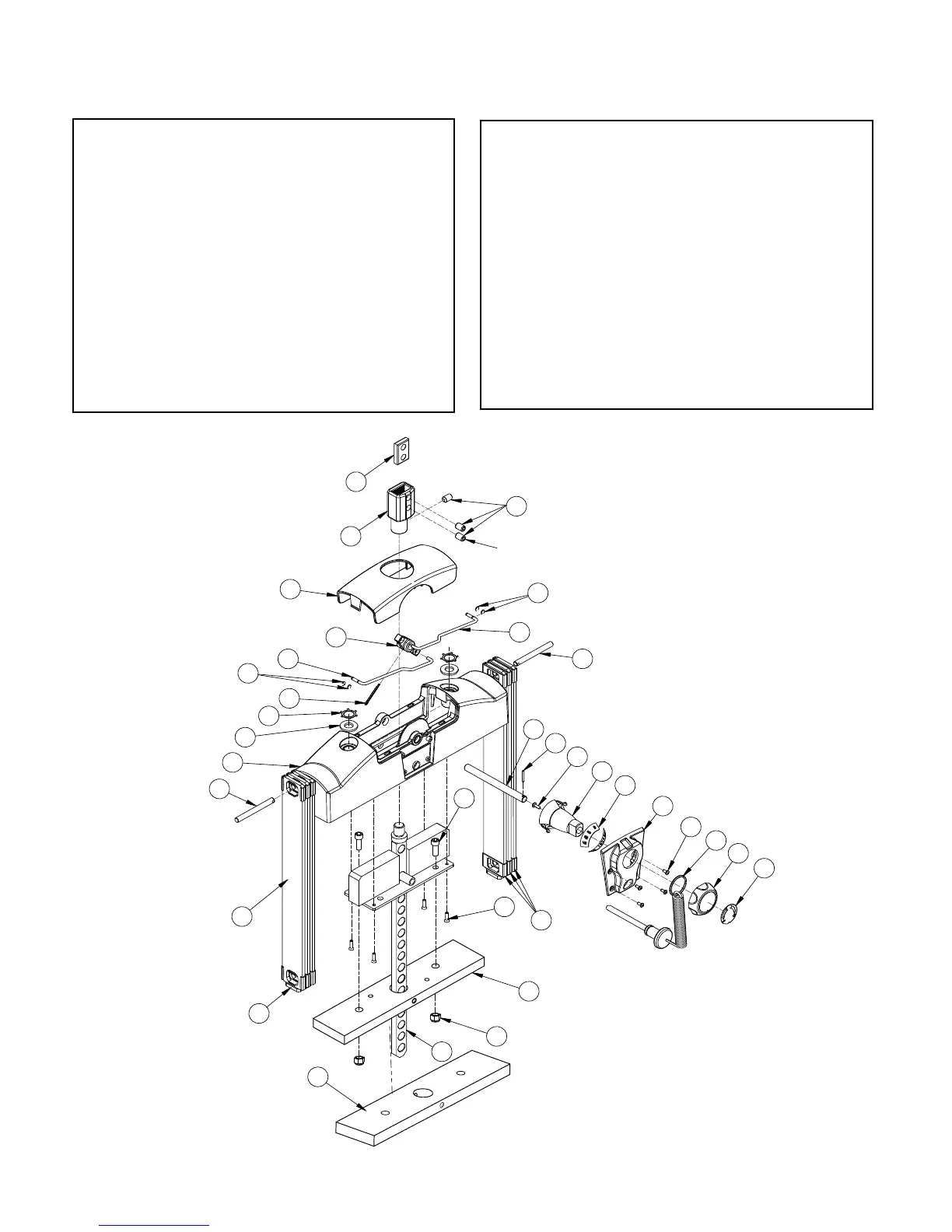

TOP WEIGHT ASSEMBLY DETAIL
23
22
8
4
12
1
2
16
13
14
3
17
11
24
5
15
6
26
7
18
9
25
10
4
3
12
27
21
19
20
TOURQUE SET SCREWS
300-350 IN./LBS
28
29
30
31
ITEM QTY PART NO. DESCRIPTION
18 4 HT582510 Tap SC NO 10 x .375 PN HD Phil
19 2 11040-409 Molded Bumper Pad
20 12 11040-572 Guard, Increment Weight
21 6 11040-573 Weight Increment
22 1 11040-216 Belt Clamp
23 1 11040-301 Clamp Block Insert
24 1 11040-428 Adjustment Decal
25 1 11040-429 Rotation Decal
26 1 HT552512 Screw, Pan HD Phil HD Self
Tapping 8-16 x .50, Type WB
27 3 HY740000 Set Screw
28 2 HC702817 SHCS 3/8 x 16 1
29 2 HN704901 Lock Nut 38 X 16
30 1 11030-348 Weight Plate
31 23 4000C101 Weight Stack Plate
32 1 4701-012 Weight Pack (Not Shown)
33 1 4701-014 Weight Pack (Not Shown)
ITEM QTY PART NO. DESCRIPTION
1 1 11040-366 Top Weight Assembly, Molded
2 1 11040-367 Hub, Molded
3 2 11040-369 Rod, Linkage
4 2 11040-370 Pin
5 1 11040-427 Rod
6 1 11040-426 Stem
7 1 11040-424 Cover Plate
8 1 11040-416 Cover, Top Weight
9 1 11040-425 Knob
10 1 BH030207 Pin, Weight Selector
11 1 4700-253 Lifting Post 25
12 4 BR030209 External Retaining Ring .188
13 2 BR030220 Internal Retaining Ring 1.250
14 1 HP016820 Cotter Pin .125 X 1.25
15 1 HP266765 Roll Pin, .125 X .938
16 2 HS720004 Felt Washer, .641 1.250 .125 T
17 4 HT562715 Tap SC NO 10 x .750 F Phil
To Next Page
