CycleOps PowerTap SL+ User Manual

9
Computer Shoe
Mounting Base
Arrow
System Overview cont.
SYSTEM INSTALLATION
1. Insert Wheel Into Frame
Insert the PowerTap wheel into the frame. Make sure the axle is correctly positioned in the
dropouts and secure the wheel in place with a skewer.

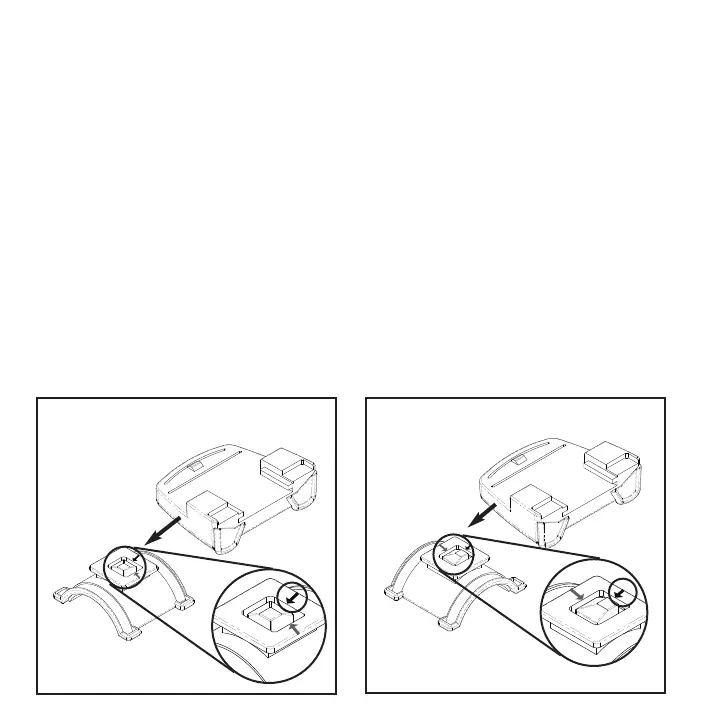

2. Attach Computer Shoe to Handlebar or Stem
The shoe can be mounted on either the handlebar or stem. Secure the mounting base with
cable ties. Slide the computer shoe in the direction of the arrow as depicted in either FIGURE1A
or 1B depending on mounting location.
Slide shoe in direction of arrow onto the base.
Slide shoe in direction of arrow onto the base.
Attach Receiver mount to Handlebar
Attach Receiver mount to Stem
Computer Shoe
Mounting Base
Arrow
FIGURE 1A FIGURE 1B
