6. OPERATION CONTROLS AND FUNCTIONS

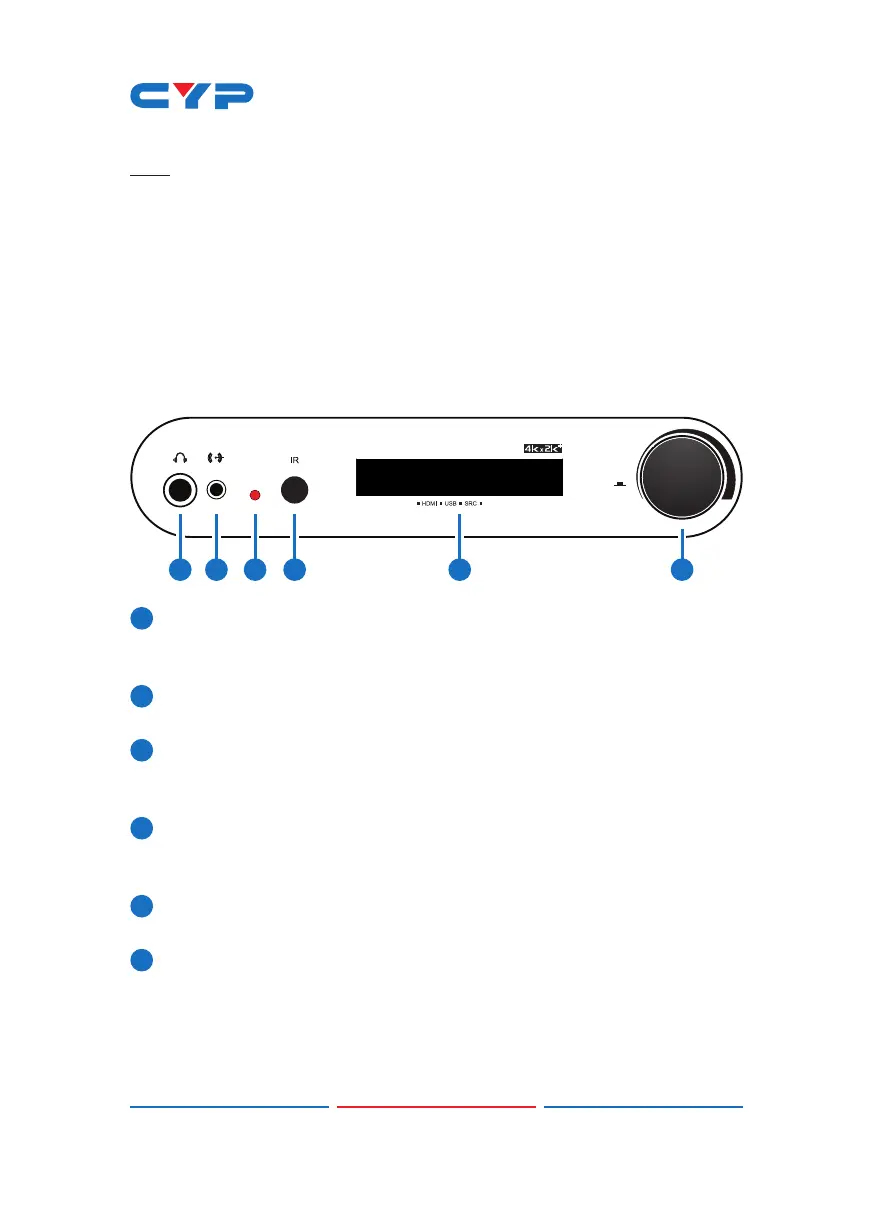

6.1 Front Panel
MENUMENU
Coaxial
44.1K
In
->
-20.0 dB
44.1K
UHD Audio Center
384/32
1 2
3 4 5
6
1
6.3mm HEADPHONE OUT: This slot is to connect with 6.3mm
professional headphone set for user to enjoy the individual
professional audio sound.
2
3.5mm LINE IN: This slot is to connect with 3.5mm phone jack cable
from any audio equipment for stereo line in input audio signal.
3
POWER LED: The LED will illuminate red when the device is
connected with power supply (standby), and will turn green if turn
on the device.
4
IR WINDOW: This is the IR receiver window that accept IR signal
from the remote control of this device that is included in the
package.
5
OLED: This OLED LCM displays the in/output selection with volume
setting, sampling rate and audio channels.
6
MENU/VOLUME CONTROL: Press this button to enter into the menu
selection or rotate to adjust the volume.
