10.8 Slave FIFO Asynchronous Read

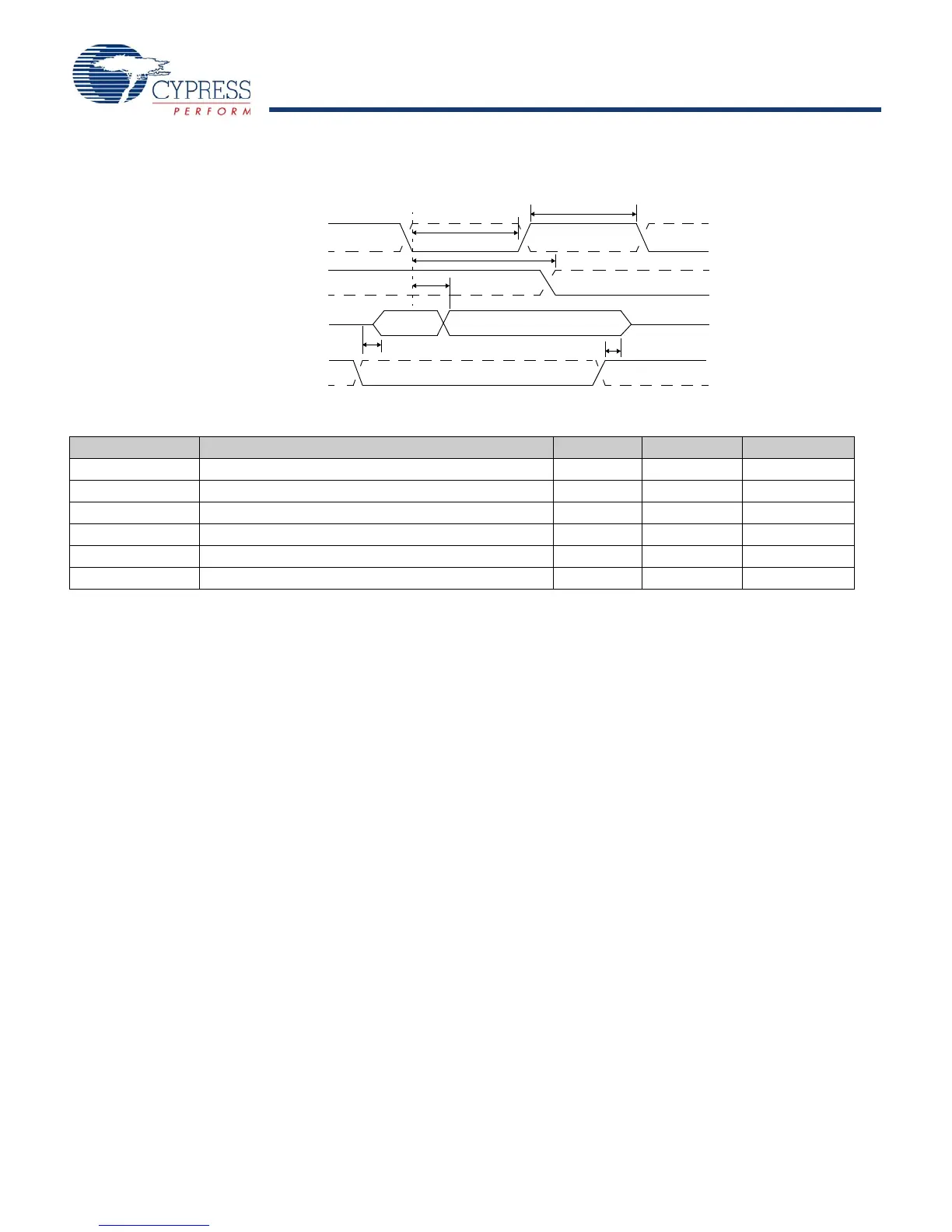

Figure 19. Slave FIFO Asynchronous Read Timing Diagram
[20]
SLRD
FLAGS
t
RDpwl
t
RDpwh
SLOE
t
XFLG
t
XFD
DATA
t
OEon
t
OEoff
N+1
N
Table 22. Slave FIFO Asynchronous Read Parameters
[23]
Parameter Description Min Max Unit
t
RDpwl
SLRD Pulse Width LOW 50 ns
t
RDpwh
SLRD Pulse Width HIGH 50 ns
t
XFLG
SLRD to FLAGS Output Propagation Delay 70 ns
t
XFD
SLRD to FIFO Data Output Propagation Delay 15 ns
t
OEon
SLOE Turn-on to FIFO Data Valid 10.5 ns
t
OEoff
SLOE Turn-off to FIFO Data Hold 10.5 ns
Note
23. Slave FIFO asynchronous parameter values use internal IFCLK setting at 48 MHz.
