CY7C68013A, CY7C68014A
CY7C68015A, CY7C68016A
Document #: 38-08032 Rev. *L Page 46 of 62
10.10 Slave FIFO Asynchronous Write

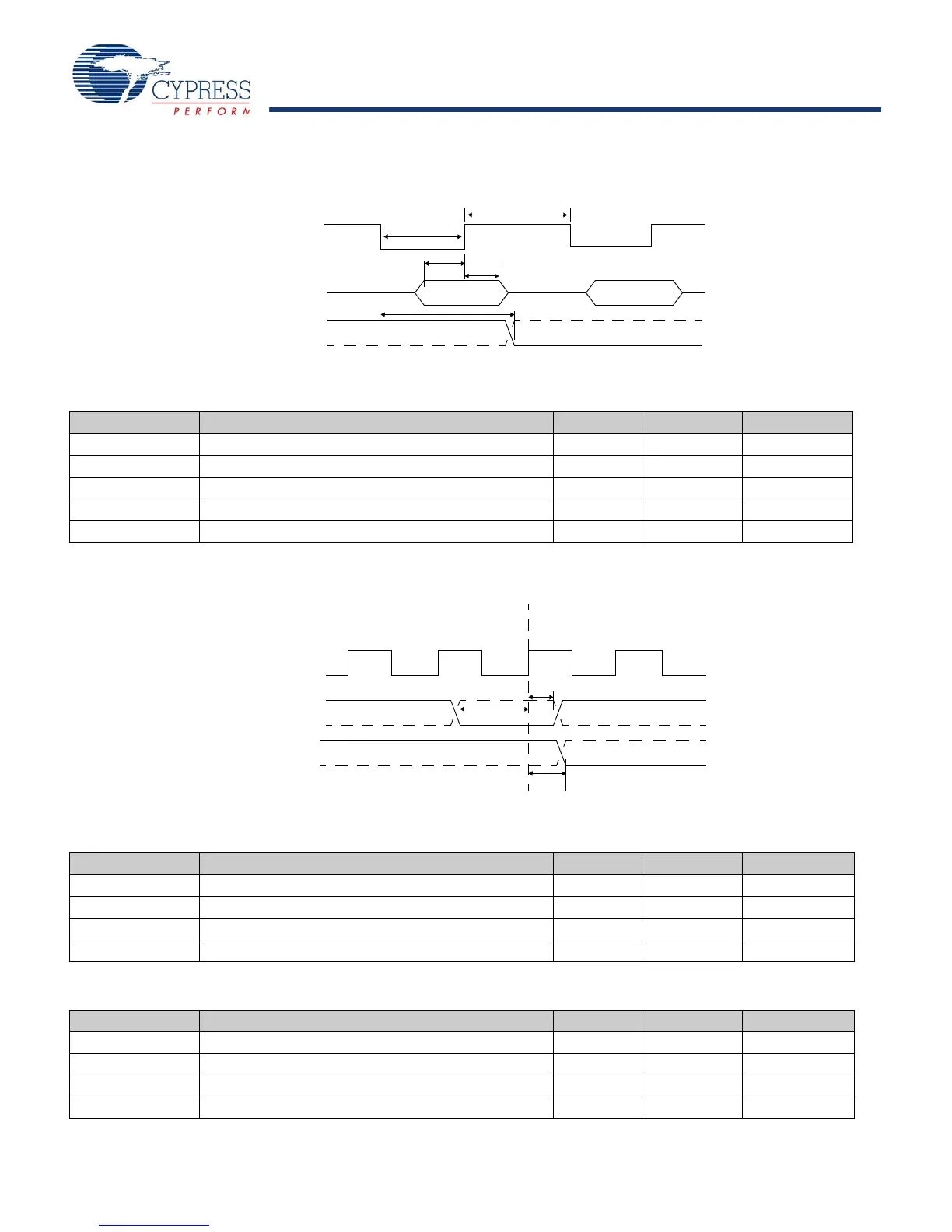

Figure 21. Slave FIFO Asynchronous Write Timing Diagram
[20]
10.11 Slave FIFO Synchronous Packet End Strobe
Figure 22. Slave FIFO Synchronous Packet End Strobe Timing Diagram
[20]
DATA
t
SFD
t
FDH
FLAGS
t
XFD
SLWR/SLCS#
t
WRpwh
t
WRpwl
SLWR
Table 25. Slave FIFO Asynchronous Write Parameters with Internally Sourced IFCLK
[23]
Parameter Description Min Max Unit
t
WRpwl
SLWR Pulse LOW 50 ns
t
WRpwh
SLWR Pulse HIGH 70 ns
t
SFD
SLWR to FIFO DATA Setup Time 10 ns
t
FDH
FIFO DATA to SLWR Hold Time 10 ns
t
XFD
SLWR to FLAGS Output Propagation Delay 70 ns
FLAGS
t
XFLG
IFCLK
PKTEND
t
SPE
t
PEH
Table 26. Slave FIFO Synchronous Packet End Strobe Parameters with Internally Sourced IFCLK
[21]
Parameter Description Min Max Unit
t
IFCLK
IFCLK Period 20.83 ns
t
SPE
PKTEND to Clock Setup Time 14.6 ns
t
PEH
Clock to PKTEND Hold Time 0 ns
t
XFLG
Clock to FLAGS Output Propagation Delay 9.5 ns
Table 27. Slave FIFO Synchronous Packet End Strobe Parameters with Externally Sourced IFCLK
[21]
Parameter Description Min Max Unit
t
IFCLK
IFCLK Period 20.83 200 ns
t
SPE
PKTEND to Clock Setup Time 8.6 ns
t
PEH
Clock to PKTEND Hold Time 2.5 ns
t
XFLG
Clock to FLAGS Output Propagation Delay 13.5 ns
