CY7C68013A, CY7C68014A
CY7C68015A, CY7C68016A
Document #: 38-08032 Rev. *L Page 49 of 62
10.15 Slave FIFO Synchronous Address

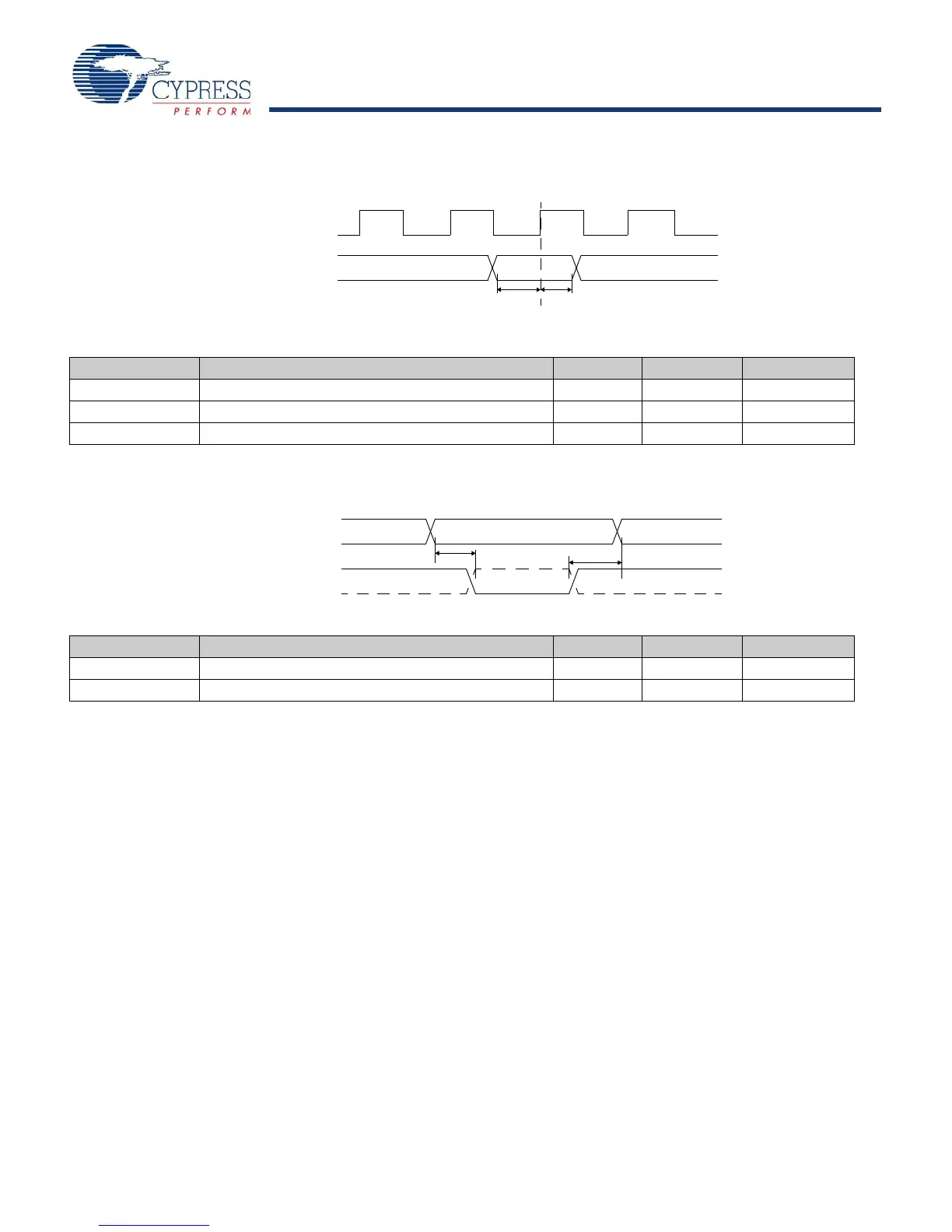

Figure 27. Slave FIFO Synchronous Address Timing Diagram
[20]
10.16 Slave FIFO Asynchronous Address
Figure 28. Slave FIFO Asynchronous Address Timing Diagram
[20]
IFCLK
SLCS/FIFOADR [1:0]
t
SFA
t
FAH
Table 31. Slave FIFO Synchronous Address Parameters
[21]
Parameter Description Min Max Unit
t
IFCLK
Interface Clock Period 20.83 200 ns
t
SFA
FIFOADR[1:0] to Clock Setup Time 25 ns
t
FAH
Clock to FIFOADR[1:0] Hold Time 10 ns
Table 32. Slave FIFO Asynchronous Address Parameters
[23]
Parameter Description Min Max Unit
t
SFA
FIFOADR[1:0] to SLRD/SLWR/PKTEND Setup Time 10 ns
t
FAH
RD/WR/PKTEND to FIFOADR[1:0] Hold Time 10 ns
SLRD/SLWR/PKTEND
SLCS/FIFOADR [1:0]
t
SFA
t
FAH
