6
230V
3A 50Hz/60Hz
AC INPUT
MAX. 6 UNITS IN PARALLEL
AC OUTPUT
INPUT A
OUTPUT A OUTPUT B
INPUT B
HPF/THRU
SATELLITE X-OVER
LIMIT
SIGNAL
ON
DEEP/LOUD
PRESET
-+
POLARITY
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
D.A.S. AUDIO S.A. (Valencia)
MADE IN SPAIN
N1918
20080011
T12 A L 250V FUSE
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE
ONLY WITH THE SAME TYPE
LEVEL
+6-oo
0
LOW-PASS
160Hz100Hz
125Hz

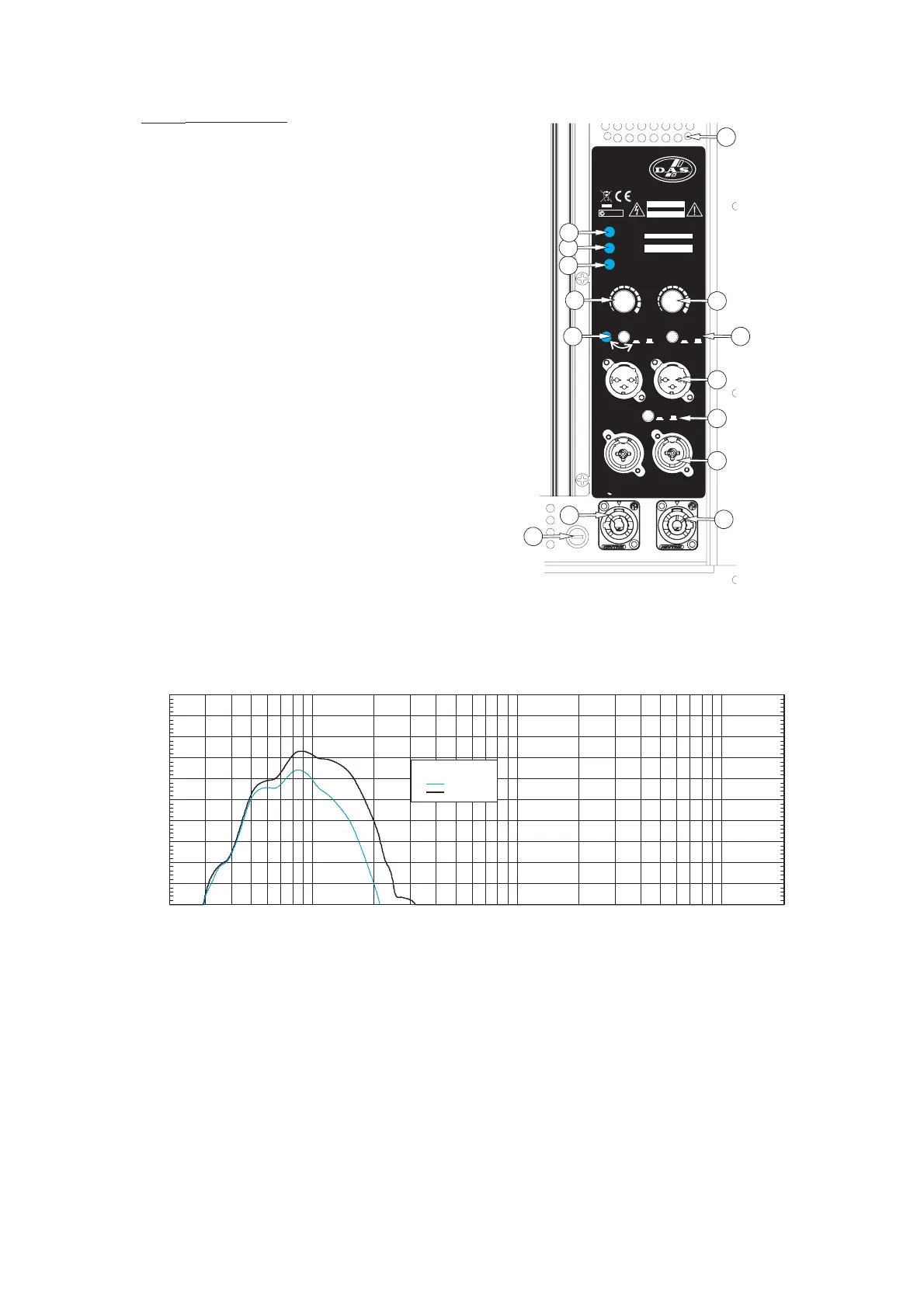

avant 118A
) INPUT :
A and B, XLR-type input signal connectors.
These are balanced connectors just like the A and
B, SATELLITE OUTPUT, connectors with the
following pin assignments:
1=GND (ground).
2=(+) Non inverted input.
3=(-) Inverted input.
) SATELLITE OUTPUT :
A and B, XLR-type output signal connectors
for connecting several units together and sending
them all the same input signal or filtered signal (by
using THRU/HPF).
) LIMIT :
Red LED indicates amplifier saturation.
Amplifier limiter indicator lights.
) SIGNAL :
Green LED indicates signal presence.
)ON:
Green LED indicates that the unit is ON.
) SUB LEVEL :
Potentiometer for adjusting the unit level.
1
2
3
4
5
6
avant 118A amplifier
10k5k2k1k500200100502020 20kHz
130.0
dBSPL
120.0
110.0
100.0
90.0
80.0
LOUD
100 Hz
160 Hz
) LOW-PASS CROSSOVER :
Button for adjusting the upper cut-off frequency for the subwoofer unit. We recommend a cut-off
frequency of 100 Hz (see graphs for 100 Hz and 160 Hz).
7
) PHASE :
Switch for inverting the phase of the unit.
) FUSE :
Fuse holder. Only use the recommended fuse type and size.
) AC INPUT :
PowerCon NAC3FCA connector to turn the unit ON or OFF (inserted, rotated and locked for ON).
.
) AC OUTPUT :
PowerCon NAC3FCBA connector for AC loop thru allows up to 6 units at 230 V (see label of unit)).
8
9
10
Only
use this equipment with an appropriate mains cord
11
11
9
10
8
6
5
4
3
1
12
2
13
7
14
Manual del Usuario / serie avant / User’s Manual
