D.A.S. Convert 15A Series User Manual

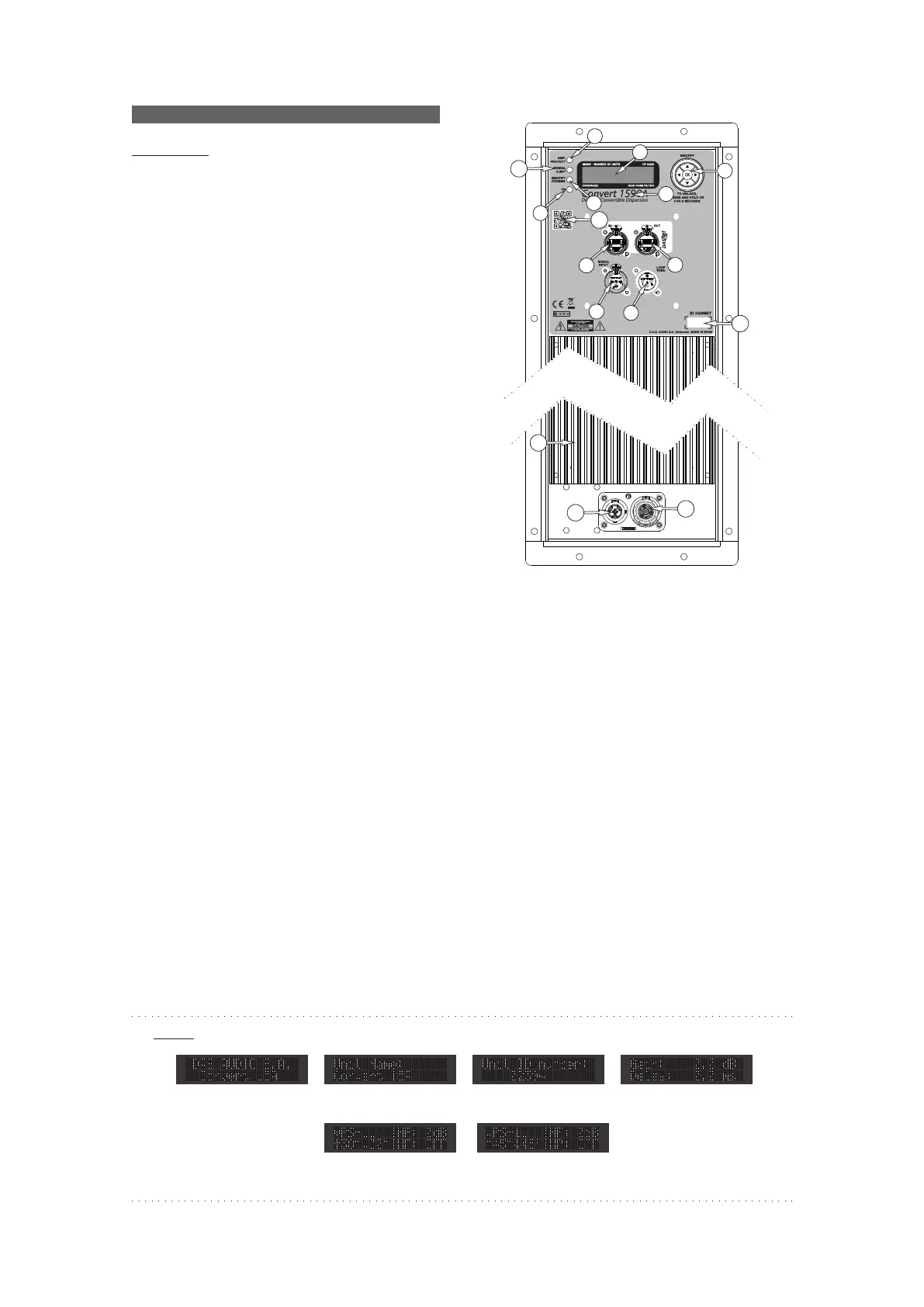

AMPLIFIER
Description
1) INPUT :
XLR-type input signal connector. This is a balanced
connector just like the LOOP THRU connector with the
following pin assignments:
1 =GND (ground).
2 =(+) Non inverted input.
3 =(-) Inverted input.
2) LOOP THRU :
XLR-type output signal connector for connecting
several units together and sending them all the same
signal.
3) IN :
TM
RJ45 connector for DASnet input.
4) OUT :
,
5) ON :
Green LED indicates that the unit is ON.
6) IDENTIFY/COMMS :
The Orange LED is flashing when IDENTIFY is pressed
(to identify the unit) or when
7) SIGNAL/LIMIT :
Bi-color LED indicates signal presence, when LED is
green, and that the limiter of amplifier is acting, when LED
is red.
8) AMP. PROTECT :
Red LED indicates that the protection of one or more
TM
RJ45 connector for DASnet output for connecting
several units together and sending them all the same
signal.
TM
DASnet communication is in
use.
9) DISPLAY :
The 2x16 display shows messages or data
10) KEYBOARD :
keyboard with 5 buttons for setting or selecting amplifier mode.
11) MODEL :
Label for convert 1560A or model.
12) QR :
QR symbol to access the manuals via Internet connection.
13) ID DASNET :
TM
Identification number label of the unit for to use with DASnet (more information in section: CHANGE OF
CONFIGURATION). This information also appears when you turn ON the unit.
14) AC INPUT :
PowerCon TRUE1 type Neutrik connector for mains. Only use this equipment with an appropriate
mains cord.
15) AC OUTPUT :
16) HEATSINK :
Be careful when in contact with radiator because it can be hot, although it never will reach a dangerous
temperature.
convert 1590A
PowerCon TRUE1 type Neutrik connector for mains output. Only use this equipment with an
appropriate mains cord.
11
Manual del Usuario / convert 15A series / User’s Manual
convert 15A series
Amplifier
02394
7
13
14
15
12
16
1
2
3
4
9
6
8
5
10
11
NOTE: When you turn ON the unit, the display shows the messages:
And, depending on the model, one of these two messages.
Finally, after a few seconds the screen turns off.
convert 1590A
convert 1560A
