The vertical splay angle depends on the hole
where the quick release pin has been inserted (6).
5
The next step will be to secure the fixing
hardware part to the truss. In order to do so, the nut
and the wing nut must be tightened. Make sure that
the fixing hardware has been secured tightly to the
truss, and that it is not able to swing. This way both
parts of the rigging hardware will be fixed: one to the
truss and the other one to the box.
Note: Maximum load capacity for AX-TRUSS is 50Kg.
Never exceed this limit.

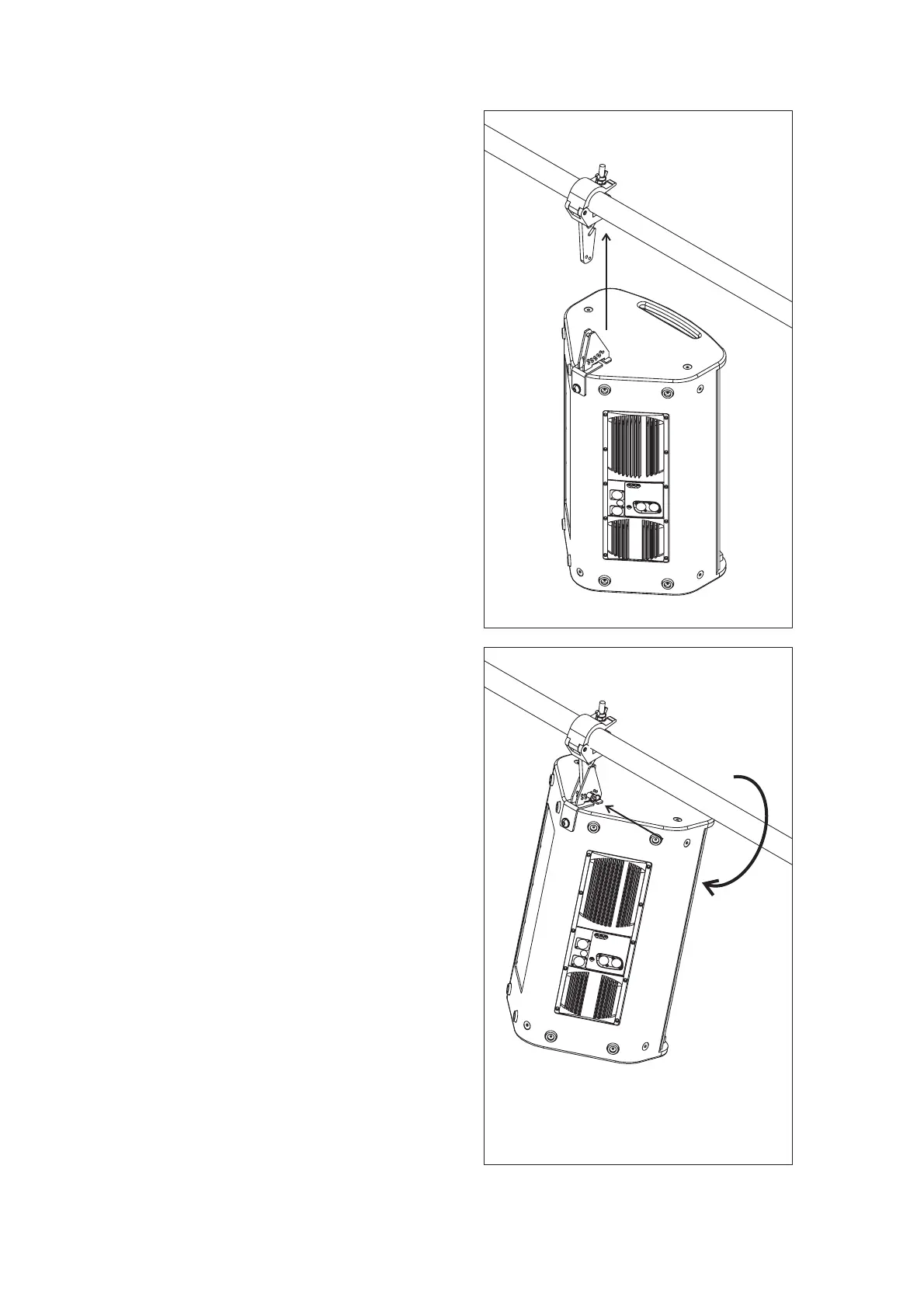

Once the fixing hardware has been attached
to the truss, then the box can be attached (5).
6
