A. Make sure to turn off your computer and unplug the power cord.
Remove the back cover of the computer.
B. Install the DWL-G510 carefully and firmly seat it into an available PCI slot
(which is usually “white” or “cream” colored).
C. Secure the DWL-G510 back panel shield with a screw.
D. Replace the computer’s cover.
E. Place the computer back in its normal position.
F. Attach the DWL-G510’s antenna to the socket on the back panel shield.
To avoid damage caused
by static electricity, make
sure to properly ground yourself
by first touching a metal part of
your computer to discharge any
static electricity before working
with the DWL-G510 Wireless G
PCI Adapter.

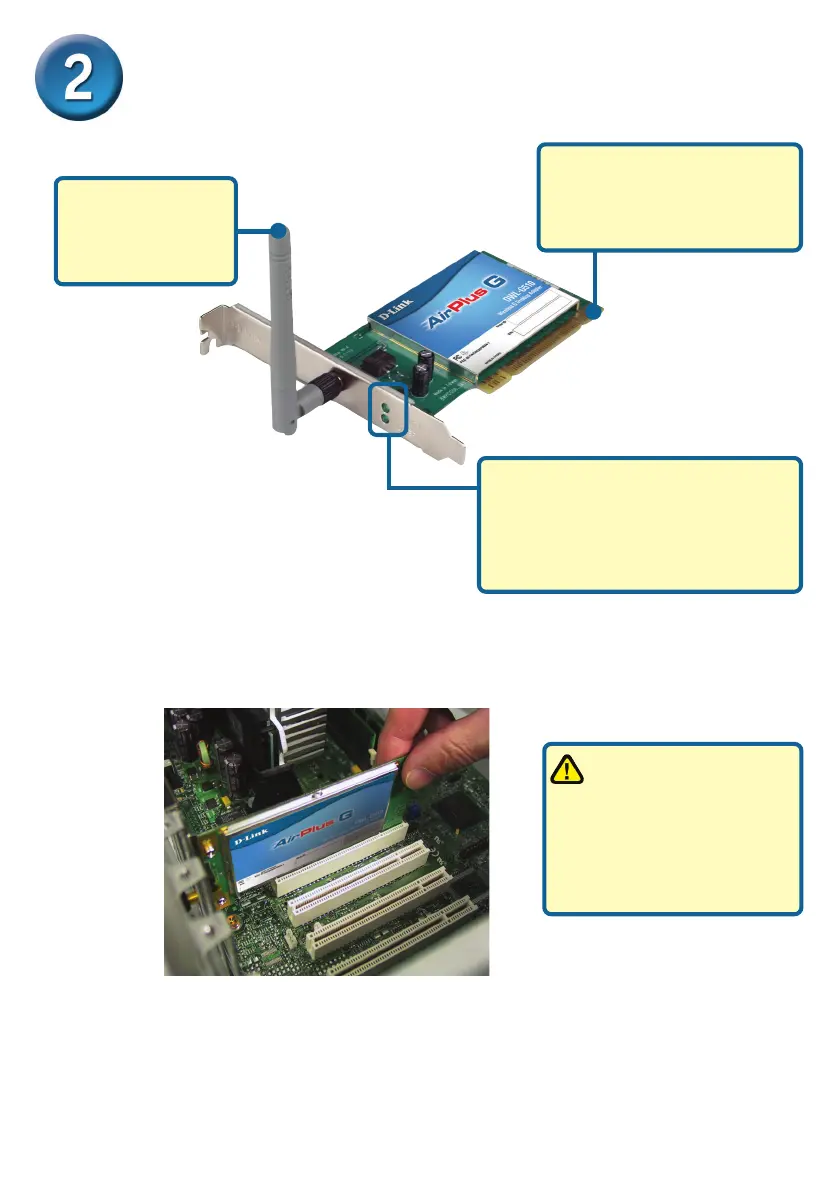

Installing the DWL-G510 Adapter in Your
Computer
32-bit connector
This is the connector that
fits into the PCI slot on your
computer’s motherboard.
Power/Activity LED
Indicates that the DWL-G510 is
properly installed when the computer
is on and blinks when data is being
transmitted.
Antenna
Used to wirelessly
connect to WiFi
networks.
