7
Appendix B - Using the
Air
Plus
®
G Utility

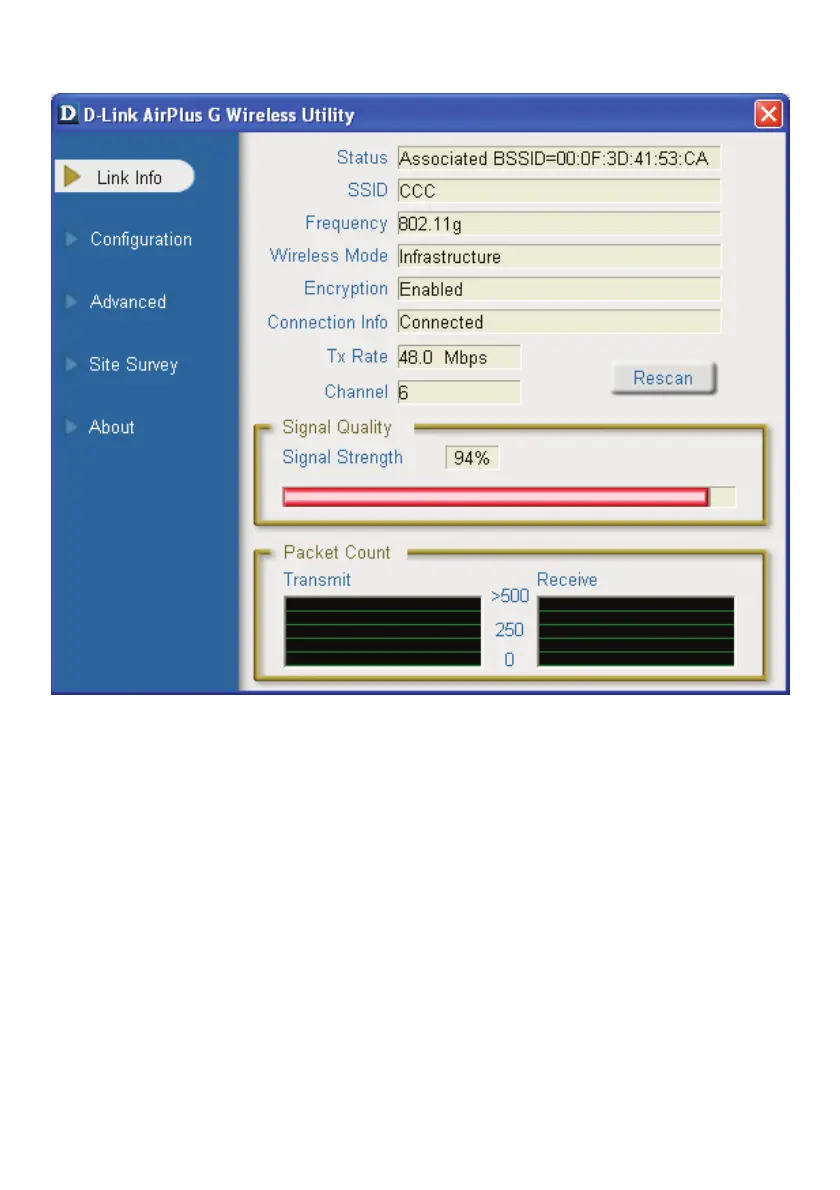

• Status: Displays the MAC Address of the Access Point that is associated with the
DWL-G510.
• SSID: Displays the Service Set Identifier assigned to the wireless network.
• Frequency: Displays the current frequency used by the adapter.
• Wireless Mode: Displays the wireless mode. The default is Infrastructure.
• Encryption: Displays whether Encryption is enabled or disabled.
• Connection Info: Indicates if the adapter is connected to the network.
• TxRate: Displays the current data transmission rate.
• Channel: Displays the channel information. By default, the channel is set to 6 and
selection is automatically determined by the DWL-G510.
• Signal Quality: The percentage coincides with the graphical bar.
Signal Strength: Represents the wireless signal between the access point and
the DWL-G510.
• Packet Count: Graphically displays the statistics of data transmitted and received.
