D-Link AirPlusXtremeG DI-624 User Manual

23
Example #2:
If you have an FTP server that you wanted Internet users to access by WAN port
2100 and only during the weekends, you would need to enable it as such. FTP
server is on LAN computer 192.168.0.30. FTP uses port 21, TCP.
Name: FTP Server
Private IP: 192.168.0.30
Protocol Type: TCP
Private Port: 21
Public Port: 2100
Schedule: From: 01:00AM to 01:00AM, Sat to Sun
Using the Configuration Menu

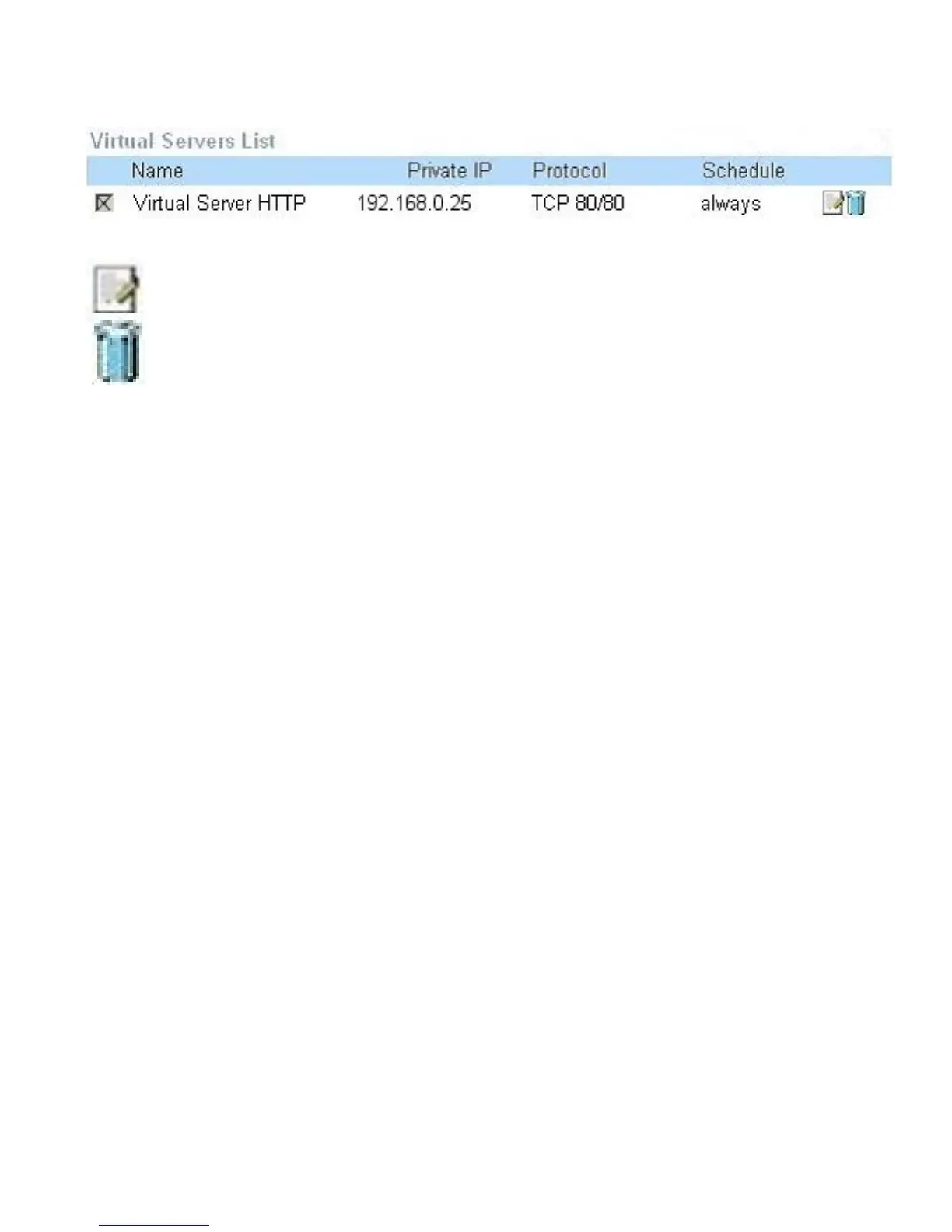

Advanced > Virtual Server continued
Click on this icon to edit the virtual service
Click on this icon to delete the virtual service
All Internet users who want to access this FTP Server
must connect to it from port 2100. This is an example of
port redirection and can be useful in cases where there
are many of the same servers on the LAN network.

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
