D-Link AirPlusXtremeG DI-624 User Manual

25
Using the Configuration Menu

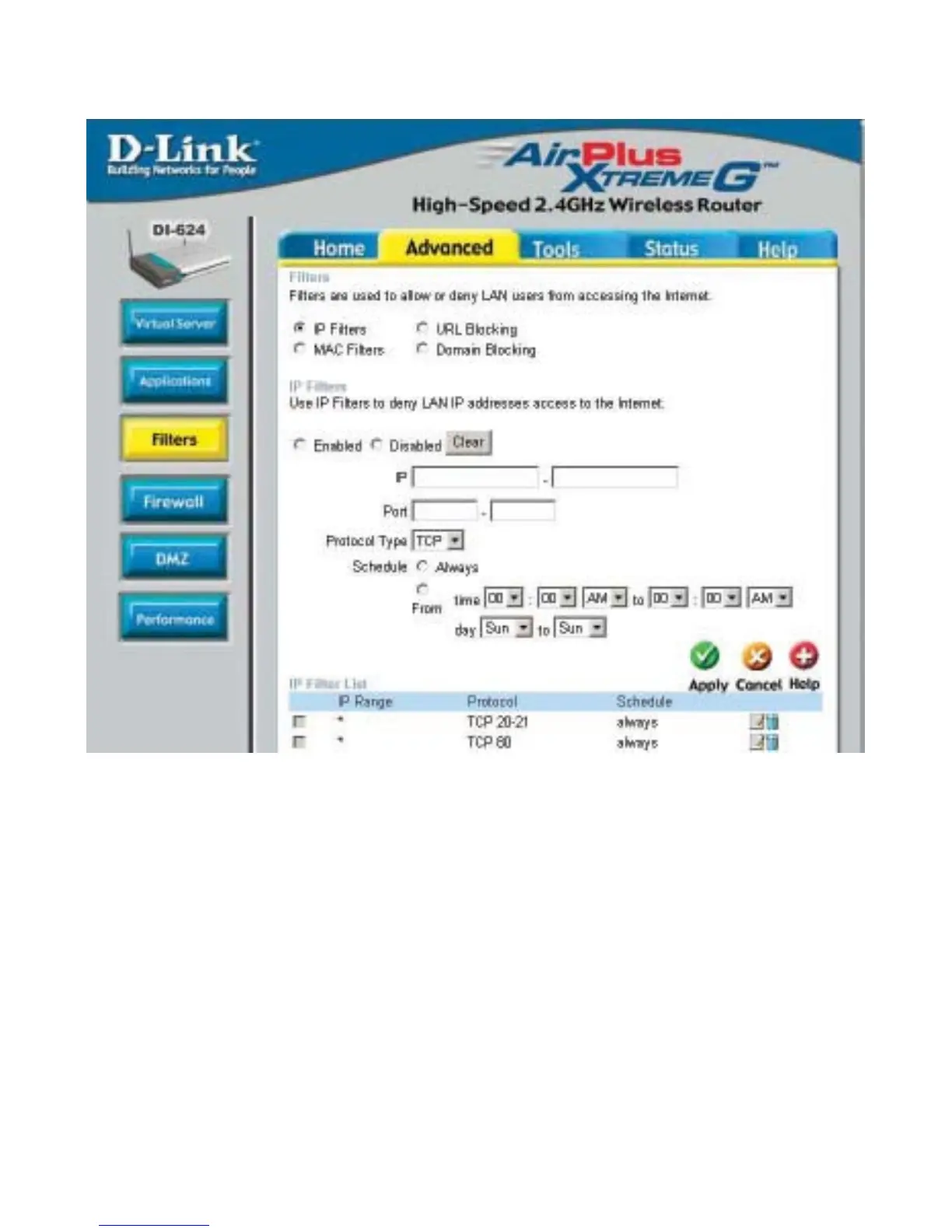

Advanced > Filters > IP Filters
Filters are used to deny or allow LAN (Local Area Network) computers from accessing
the Internet. The DI-624 can be setup to deny internal computers by their IP or MAC
addresses. The DI-624 can also block users from accessing restricted web sites.
Click Apply to save changes.
Apply:
This is the schedule of time when the IP Filter will be enabled.
Schedule:
Select the protocol type
Protocol Type:
Use IP Filters to deny LAN IP addresses from accessing the
Internet. You can deny specific port numbers or all ports for
the specific IP address.
IP Filters
The single port or port range that will be denied access to the
Internet.
Port:
The IP address of the LAN computer that will be denied
access to the Internet.
IP:

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
