D-Link AirPlusXtremeG DI-624 User Manual

39
Using the Configuration Menu

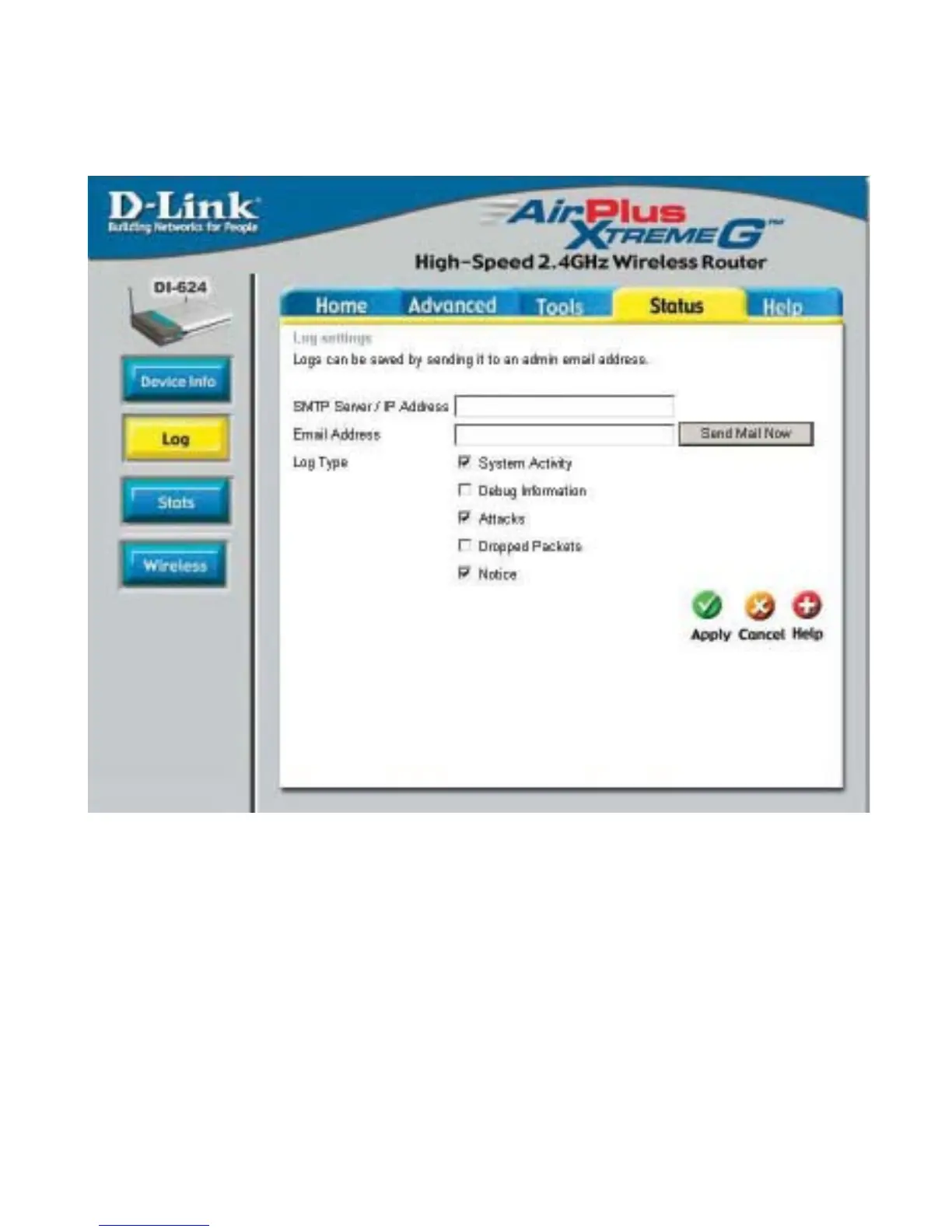

Status > Log > Log Settings
Log Settings-
Not only does the Broadband Router display the logs of activities and events, it can setup
to send these logs to another location.
SMTP Server/IP Address - The address of the SMTP server that will be used to
send the logs
Email Address - The email address to which the logs will be sent.
Click on Send Mail Now to send the email.
Click Apply to save the changes.

D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
