D-Link AirPlusXtremeG DI-624 User Manual

49
Networking Basics
Naming your Computer


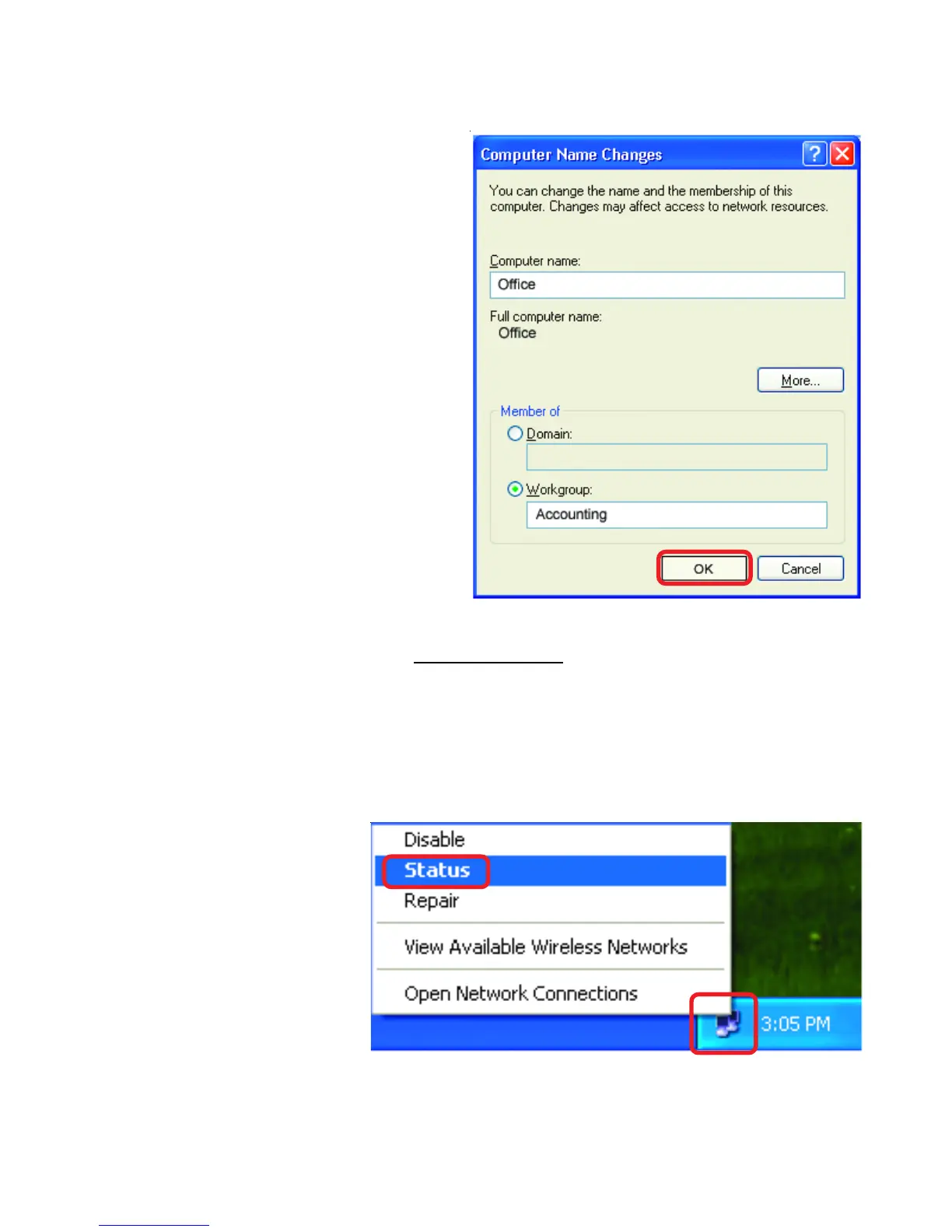

In this window, enter the
Computer name
Select Workgroup and enter
the name of the Workgroup
All computers on your
network must have the same
Workgroup name.
Click OK



Checking the IP Address in Windows XP
The wireless adapter-equipped computers in your network must be in the same
IP Address range (see Getting Started in this manual for a definition of IP Ad-
dress Range.) To check on the IP Address of the adapter, please do the follow-
ing:
Right-click on the
Local Area
Connection
icon in the task
bar
Click on Status



D-Link AirPlusXtremeG DI-624 Specifications

General

Wireless Standard	802.11g
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Data Rates	Up to 54Mbps (802.11g)
Antenna	2 dBi
Firewall	NAT
