D-Link Systems, Inc.
5
ANT24-0700 Install Guide Antenna Installation
A. Unscrew the magnetic base from the antenna.
B. Identify a mounting location. Use a pencil to mark the position
of the two holes using the stencil supplied with your mounting
kit.
C. Use a 5/16” drill bit to drill a hole in both marked locations.
D. Tap the plastic anchor gently into each of the holes using a
rubber mallet or hammer.
E. Use a screwdriver to secure the screws into the plastic
anchors.
F. Attach the magnetic base to the wall. Once the base is fi rmly
secure, attach the antenna to the base and then connect the
cable to your wireless device.

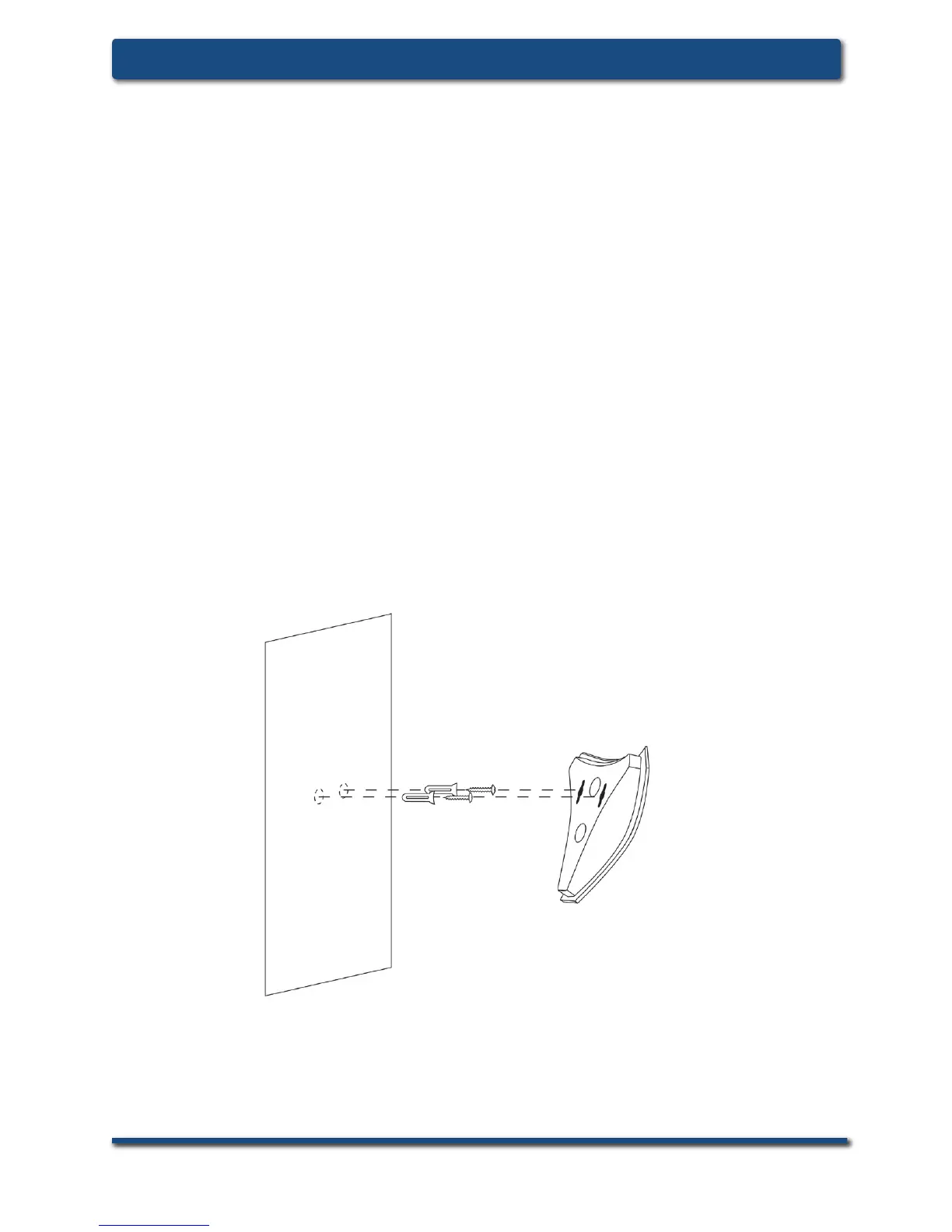

Wall Mount
Mounting the Antenna
