D-Link COVR-1100 User Manual

12D-Link COVR-1102 User Manual
Section 3 - Conguration

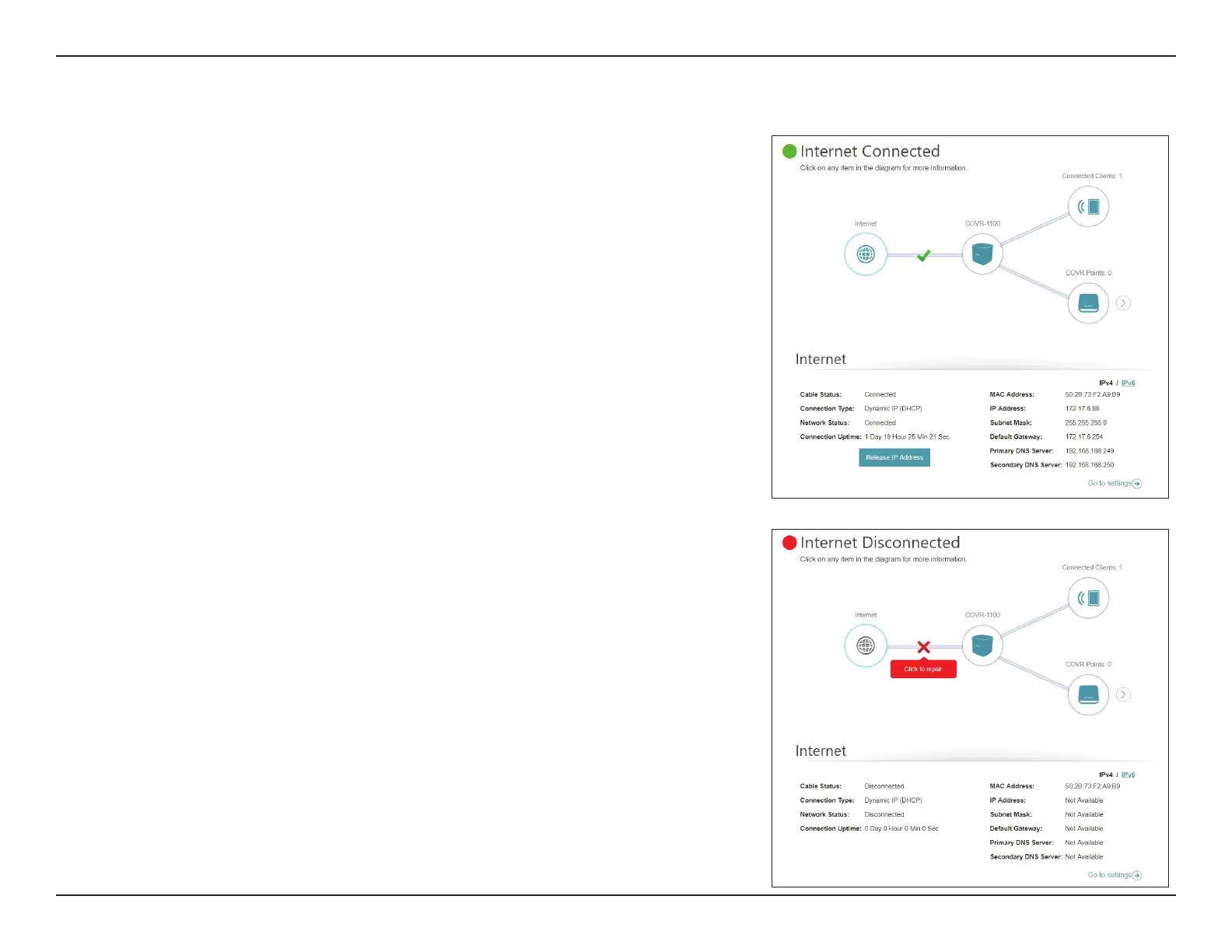

Click on the Internet icon to bring up more details about your Internet
connection. Click IPv4 or IPv6 to see details of the IPv4 and IPv6 connection
respectively.
The Home page displays whether or not the master COVR Point is currently
connected to the Internet. If it is disconnected, click Click to repair to bring up
the setup wizard, refer to Wizard on page 16 for more information.
Click Release IP Address to release the current IP address and disconnect
from the Internet. If you wish to reconnect the Internet, click Renew IP
Address.
To recongure the Internet settings, click Go to settings at the bottom-right.
Internet

D-Link COVR-1100 Specifications

General

Antenna type	Internal
Product type	Mesh router
Reset button	Yes
Certification	FCC, IC, CE, ErP, RoHS, Wi-Fi CERTIFIED EasyMesh
Product color	White
Maximum coverage	185 m²
Antennas quantity	4
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	866 Mbit/s
Flash memory	16 MB
Internal memory	128 MB
Number of products included	1 pc(s)
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1 A
AC adapter output voltage	12 V
Power consumption (typical)	8.55 W
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	92 mm
Weight	197 g
