D-Link COVR-1102 User Manual

15D-Link COVR-1102 User Manual
Section 3 - Conguration

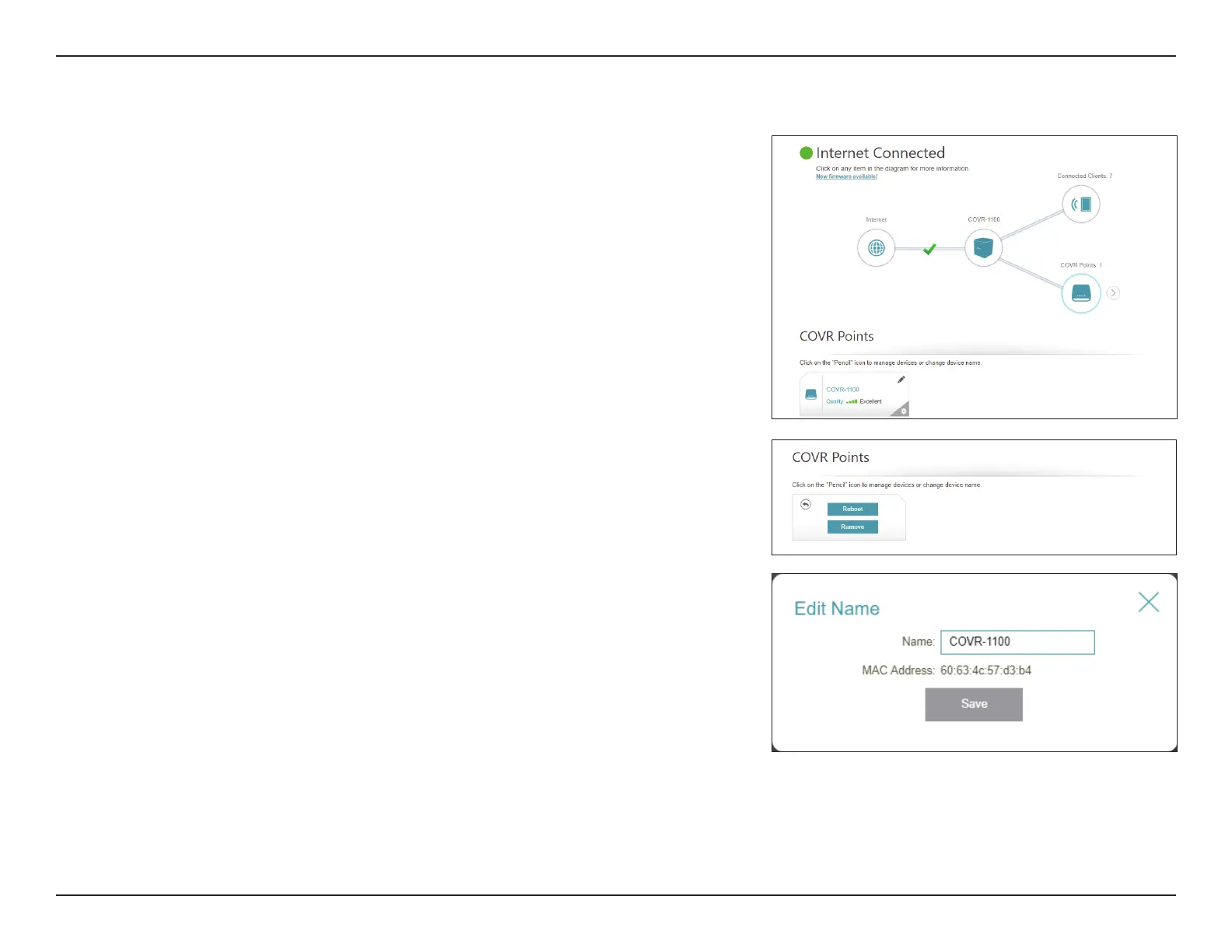

COVR Points
Click on the COVR Points icon to view details about all additional COVR Points
in your COVR whole home Wi-Fi network.
To edit a COVR Point’s name, click the pencil icon in the top-right of the box of
the COVR Point that you want to rename.
To reboot a COVR Point, click the settings icon in the bottom-right of the COVR
Point's box and click Reboot.
To remove a COVR Point from your COVR Wi-Fi network, click the settings icon
in the bottom-right of the COVR Point's box and click Remove.
Name: Enter a name for the COVR Point.
MAC Address: Displays the MAC address of the COVR Point.
Click Save when you are done.

D-Link COVR-1102 Specifications

General

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA-PSK, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	866 Mbit/s
Certification	FCC, IC, CE, ErP
Product color	White
LED indicators	Status
Antenna type	Internal
Type	Network transmitter
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	- m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.55 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Flash memory	16 MB
Internal memory	128 MB
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	92 mm
Weight	197 g
