D-Link COVR-1102 User Manual

33D-Link COVR-1102 User Manual
Section 3 - Conguration

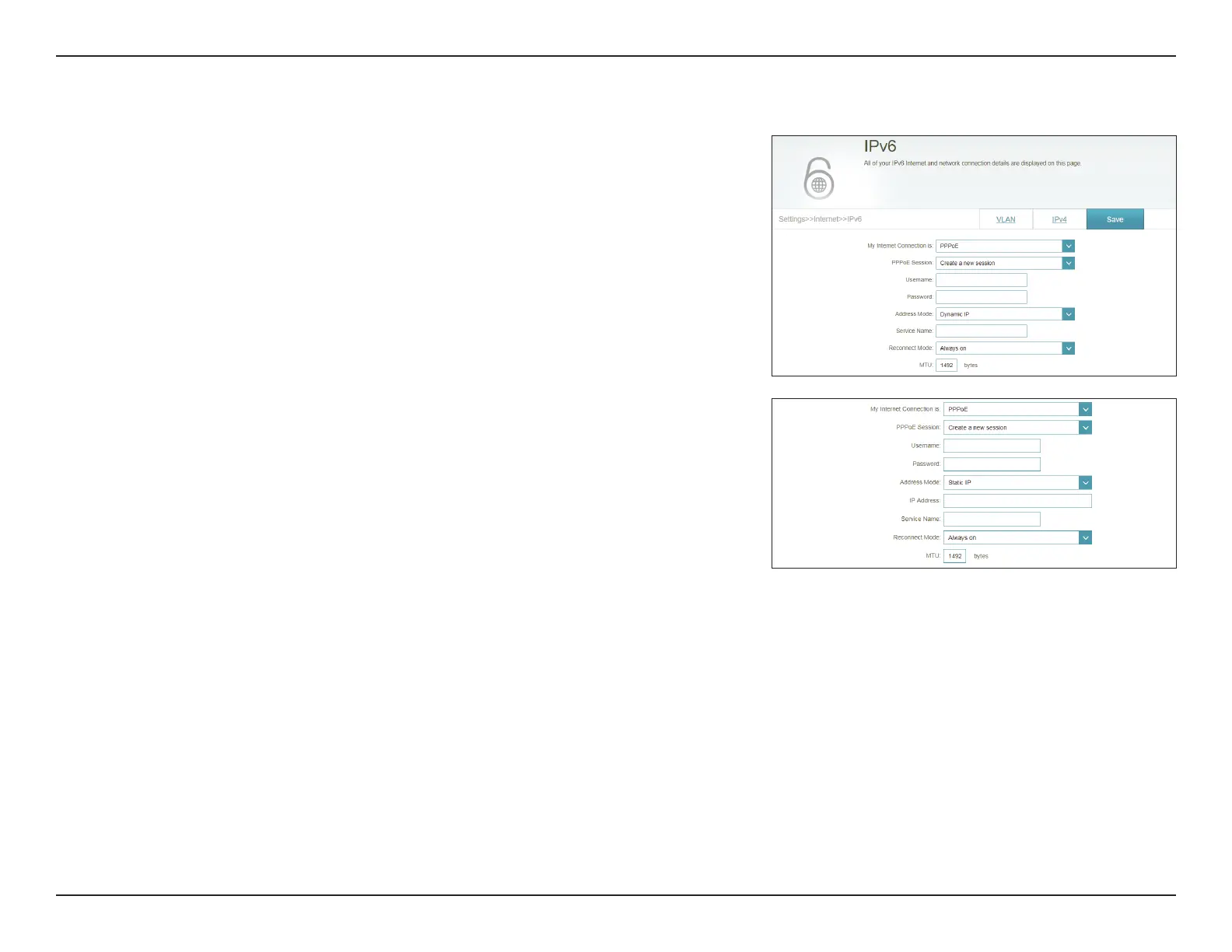

PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
PPPoE Session: Select Create a new session to start a new PPPoE session.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Address Mode: Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
IP Address: If you selected Static IP as the Address Mode, enter the IP address
provided by your ISP.
Service Name: Enter the ISP service name (optional).
Reconnect Mode: Select either Always On or Manual.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.

D-Link COVR-1102 Specifications

General

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA-PSK, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	866 Mbit/s
Certification	FCC, IC, CE, ErP
Product color	White
LED indicators	Status
Antenna type	Internal
Type	Network transmitter
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	- m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	8.55 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Flash memory	16 MB
Internal memory	128 MB
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	92 mm
Weight	197 g
