D-Link DAP-1665 Quick Installation Guide

DAP-1665
3
ENGLISH
PrODuCT
SETuP
ProDuCt instAllAtion

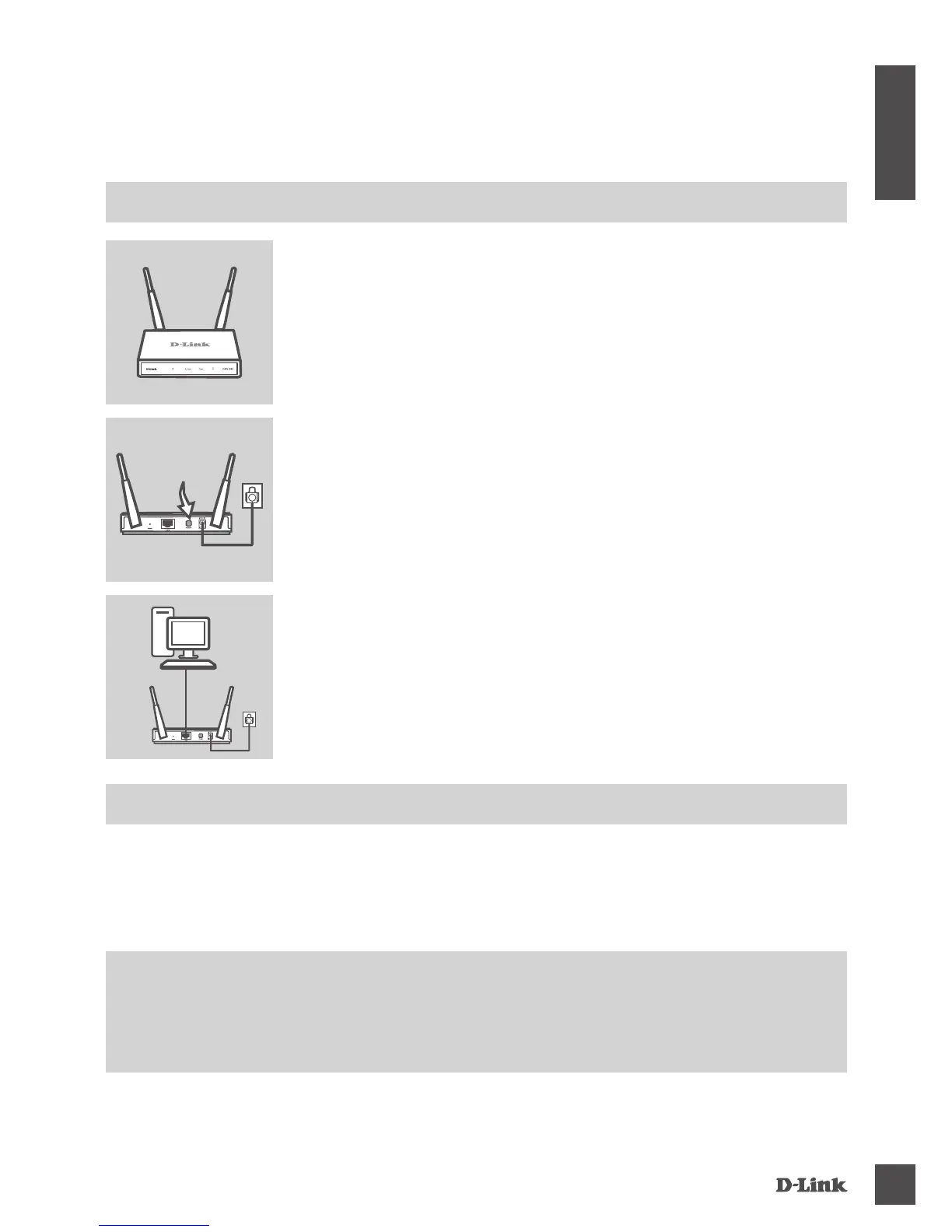

CONNECT THE DAP-1665
Using the included Ethernet cable, plug one end into the LAN port on
the back of the DAP-1665, and plug the other end into the Ethernet
port on your computer. Alternatively, you can connect to the DAP-1665
using Wi-Fi. Go to your computer's WiFi settings. Select the network
name (SSID) that is printed on the included Wi-Fi Conguration Note
(e.g. dlink-A8FA), then enter the Wi-Fi password also printed on the
Wi-Fi Conguration Note (e.g. akbdj19368).
TurN ON THE POWEr
Plug the supplied power adapter into the back of the DAP-1665 and
connect it to a power outlet. Press the power switch at the back of
the access point to turn on the power. Wait about 30 seconds for the
device to complete startup processes.
POSITION THE ACCESS POINT (AP)
Place the access point in an open area of your intended work area for
better wireless coverage. If you are using it as a repeater, you should
ensure that the access point is within wireless range of the network
which you wish to repeat.
ProDuCt ConFiGurAtion (WeB-BAseD utilitY)
To congure, open a web browser (such as Internet Explorer) from a PC or Notebook. and enter http://
dlinkap.local. in the address bar. This will direct you to the web-based configuration utility. The default
username is Admin and the password field should be left blank. Click Log In to continue. Once logged
in, click Launch Wireless Setup Wizard to commence the setup process. For further information on
conguring your access point, please refer to the included user manual.
LOGIN URL : http://dlinkap.local.
USERNAME: Admin
PASSWORD: (blank by default)
If you have more than one access point, enter http://dlinkapxxxx, or http://dlinkapxxxx.local.
(where xxxx represents the last four digits of the access point’s MAC address, which is located on
the label on the bottom of the device).
PC
AP

D-Link DAP-1665 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835, 5.15 - 5.35, 5.47 - 5.85 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Internal	No
Certification	CE\\r FCC\\r TELEC\\r IC\\r Wi-Fi Certified\\r VCCI
Cable lock slot type	Kensington
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.18 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	274 mm
Package width	208 mm
Package height	68 mm
Package weight	669.4 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1989 mm
Pallet gross weight (air)	333920 g
Quantity per pallet (air)	420 pc(s)
Shipping (inner) case width	360 mm
Shipping (inner) case height	309 mm
Shipping (inner) case length	441 mm
Shipping (inner) case weight	7510 g
Shipping (inner) case net weight	3480 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	108 mm
Width	147 mm
Height	27.8 mm
Weight	222 g
