D-Link DCS-2210 Quick Install Guide

D-Link DCS-2210/DCS-2230 Quick Install Guide
3

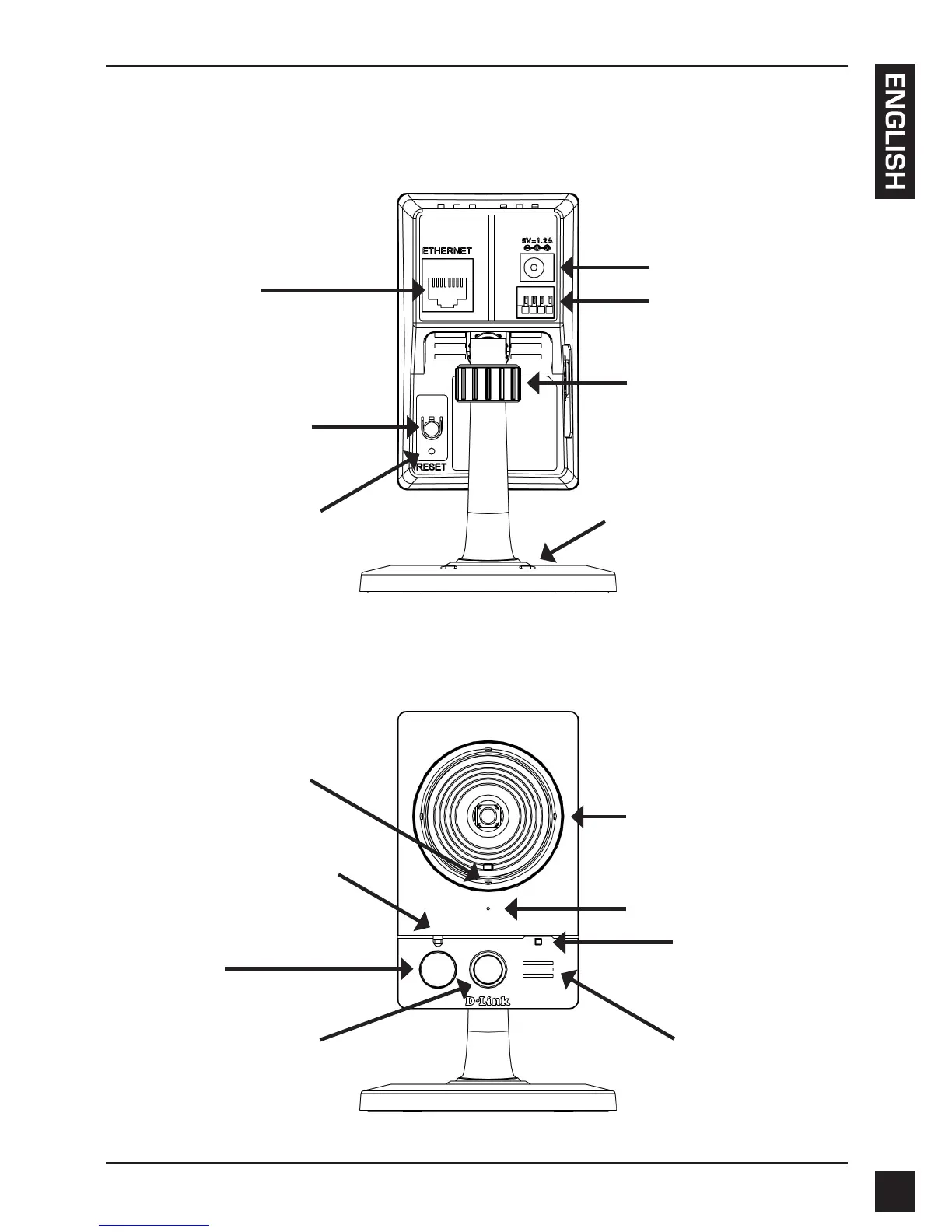

2. Hardware Overview
Rear Panel
Front Panel
Status LED
Indicates the camera's
current status
PIR
Passive Infrared
sensor for motion
detect
ICR Sensor
The IR-Cut Removable sensor
monitors lighting conditions and
switches between color and infrared
accordingly
Infrared LED
Used to illuminate the camera's eld
of view at night
Microphone
Records audio from the
surrounding area
WPS LED
(DCS-2230 only)
WPS status indicator
LED
Speaker
Audio output
Camera Lens
Records video of the surrounding
area
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Reset
Press and hold this button
for 10 seconds to reset the
camera
Ethernet
The RJ45 connector for
Ethernet (DCS-2210 supports
PoE which can also be used to
power the camera)
WPS button (DCS-2230 only)
Press this button, then press
the WPS button on your router
to set up a wireless connection
automatically
Power Connector
Connects to the included
DC 5V power adapter
I/O Connector
I/O connectors for
external devices

D-Link DCS-2210 Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
Effective sensor resolution	2000000 pixels
Optical zoom	- x
Zoom capability	Yes
Security algorithms	HTTPS
Built-in HDD	No
Compatible memory cards	SDHC
LED type	IR
Form factor	Box
Product color	White
Certification	CE, CE LVD, FCC, ICES-003, C-Tick
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, IGMP, ONVIF
Networking features	Fast Ethernet
Compatible operating systems	Microsoft Windows 7/Vista/XP/2000 Apple MAC OSX 10.3+ Linux, Unix
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
DC output current	1.25 A
DC output voltage	+5V
Power source type	PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	2 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	38.7 mm
Width	58 mm
Height	95 mm
Weight	69 g
