D-Link DCS-850L Quick Install Guide

Do not overtighten the screws as this may damage the bracket.
Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.

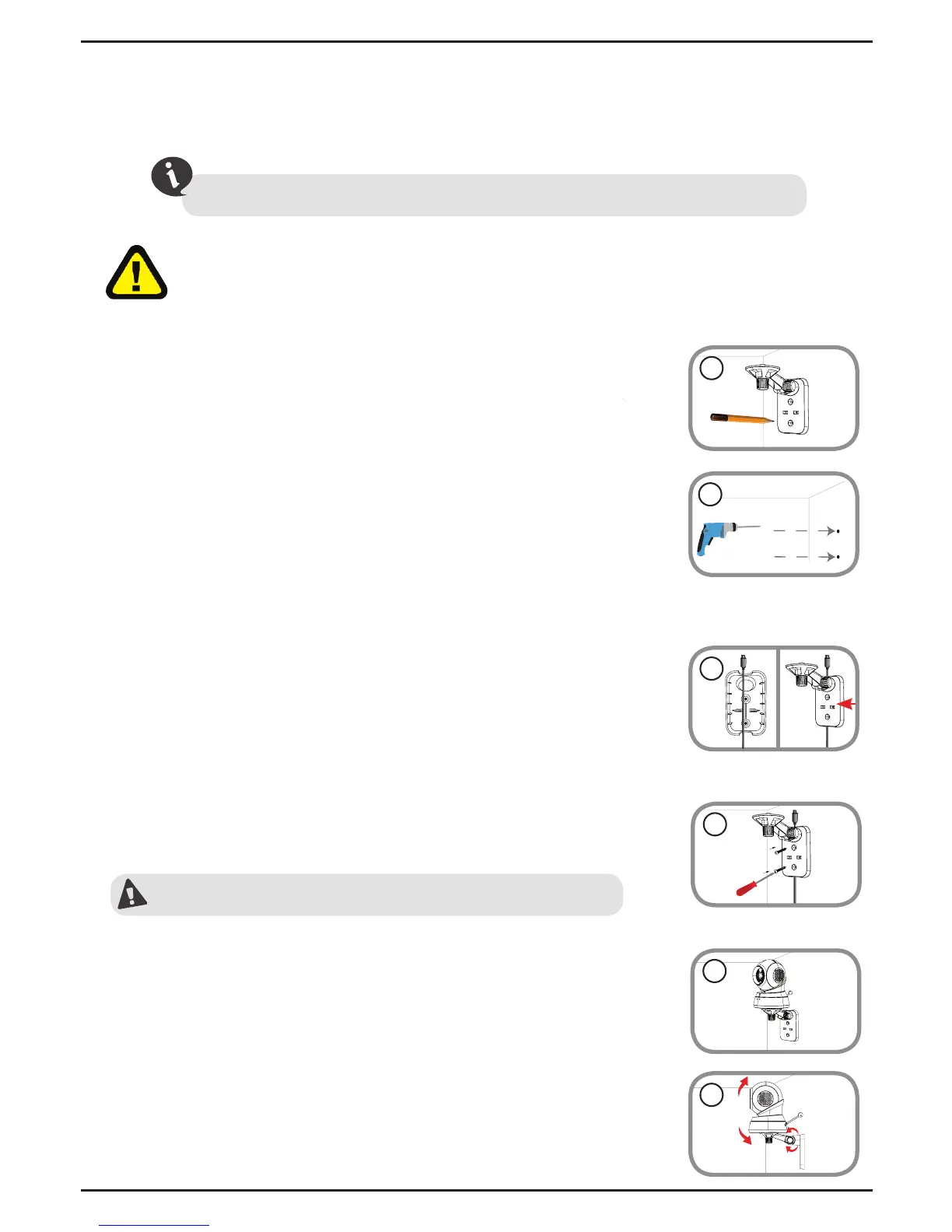

• Place the mounting bracket where you want to
position the camera and use a pencil to mark the
points where you will drill the holes.
Warning: Indoor use only. Do not mount the camera in a location
where it may be in contact with water as it may damage the product
and/or cause injury.
• If you prefer, you can conceal the cable behind the
mounting bracket. Run the cable through the back
of the mounting bracket, securing it with the built-in
guides. Make sure you leave enough cable protruding
to allow you to connect it to the camera.
• Use a 6mm drill bit to drill the two holes where you
marked. The holes should be 25mm deep (about 1 in
deep). Insert the screws into the holes.
Note: If the wall is made out of concrete, before inserting
the screws, insert the provided plastic anchors to support
the screws.
1
2
5
• Fasten the mounting bracket to the wall using the
screws provided.
6
• Adjust the angle of the arm on the mounting bracket
as desired. Tighten the thumbscrew to lock the arm
into place.
• Using the supplied thumbscrew, fasten the camera
to the mounting bracket. Connect the power cable to
the camera.
3
4
7

D-Link DCS-850L Specifications

General

LED type	IR
Night mode	Yes
Sensor type	CMOS
Digital zoom	4 x
Video resolutions	320 x 240, 640 x 480 pixels
Fixed focal length	2.44 mm
Optical sensor size	1/4 \
Night vision distance	4.8 m
Pan range	-170 - 170 °
Maximum range	- m
Tilt angle range	-25 - 95 °
Number of lullabies	5
Image formats supported	JPG, MJPEG
Mobile operating systems supported	Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 6.0, iOS 6.1, iOS 7.0, iOS 8.0, iOS 8.2, iOS 9.0
Night-light	-
Product color	Blue, Pink, White
Power source type	Battery, USB
Interface	Wi-Fi
Wi-Fi standards	Wi-Fi 4 (802.11n)
USB connector type	Micro-USB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (receiver)	20 - 80 %
